Front View

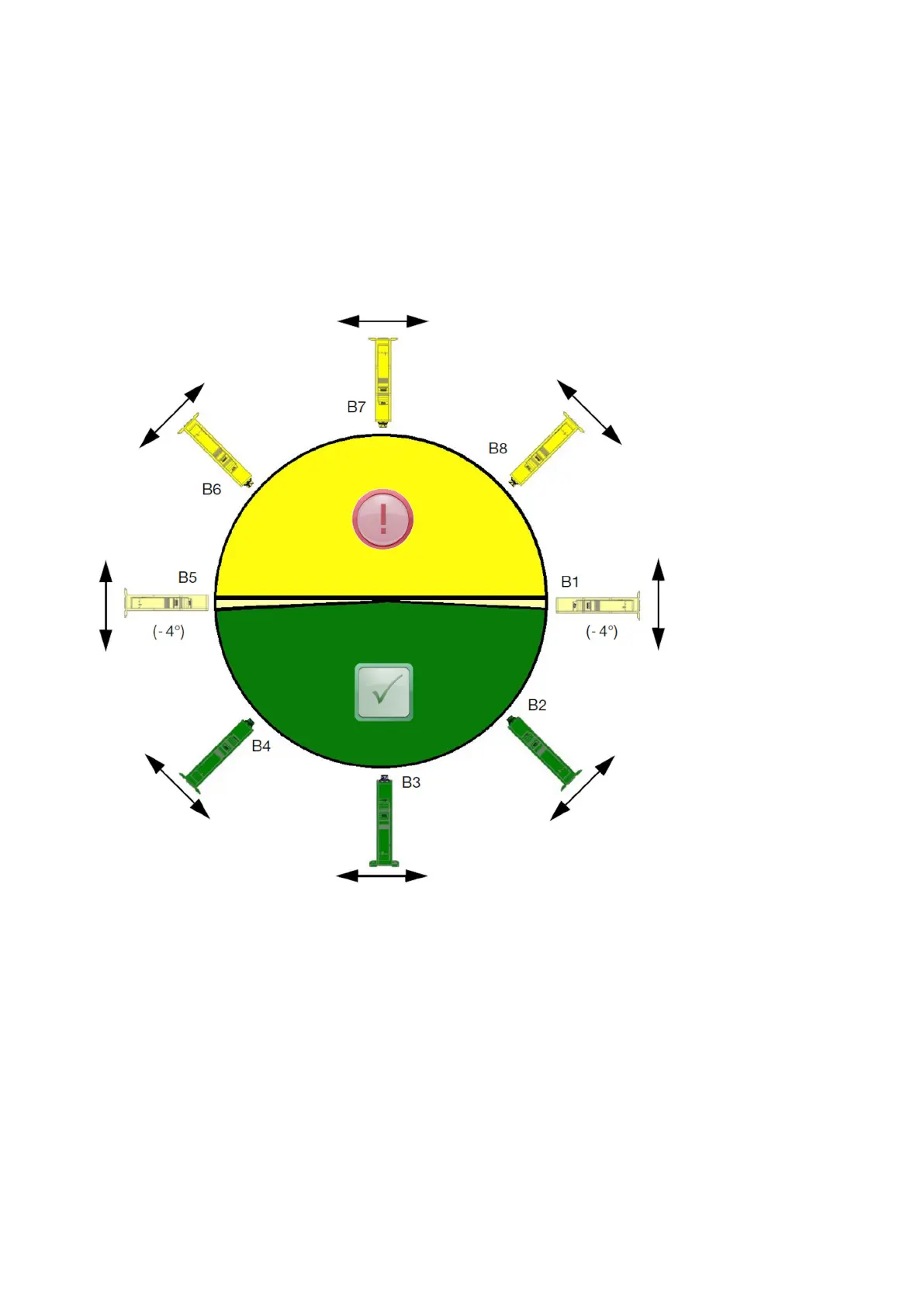

• Orientations B2, B3 and B4 are recommended.•
•
If the print head is installed in orientation B1 or B5, angle the print head downwards by a
•
minimum of -4°. Also, if the vertical DPI is set to 300, select the nozzle row that is lowest to
the ground for printing, see Print Quality on page 61.
•
Orientations B6, B7 and B8 are not recommended. These orientations will stop 1/3 of the
•
ink in the cartridge reaching the nozzles.
INSTALLATION
EPT077343 EN - Issue 1 - 11 November 2022 49
