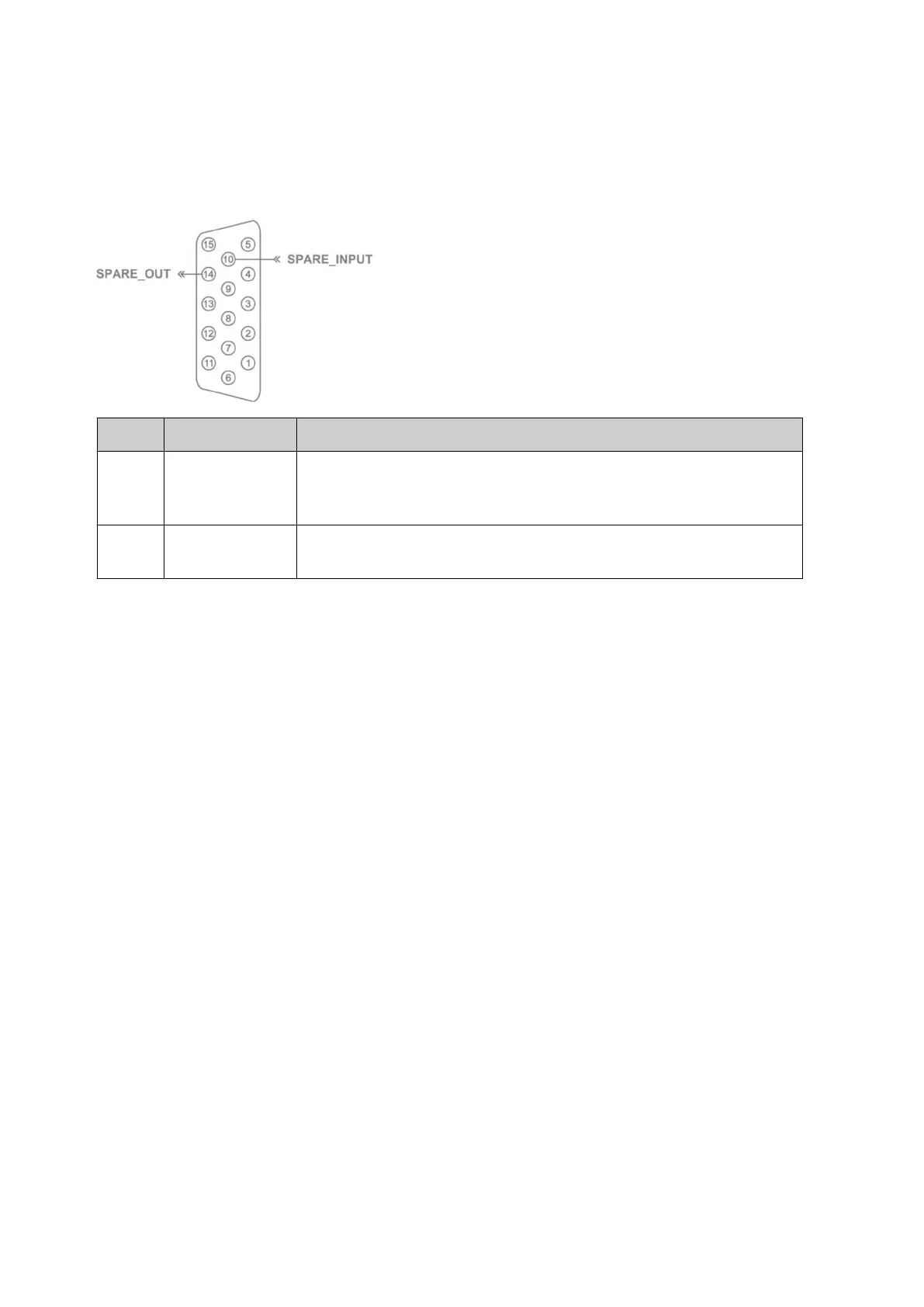

IO Connection
The printer can make an output signal when printing is done.
To setup the output signal, see IO Signal on page 80.
# Value Description
10 Spare Input Active low with 47 K Ohm internal pull-up resistor to +24 V.
To use this input, connect Ground from the input signal to
Ground on the printer's IO socket.
14 Spare Out Active low, open drain output.
47 K Ohm internal pull-up resistor to +24 V.
INSTALLATION
60 EPT077343 EN - Issue 1 - 11 November 2022
