IO Signal
Enable this function, to adjust the pulse width of the output signal that is sent after printing is
done.
When the output is not active, the signal is high (24 V).
When the output is active, the signal is low (0 V).

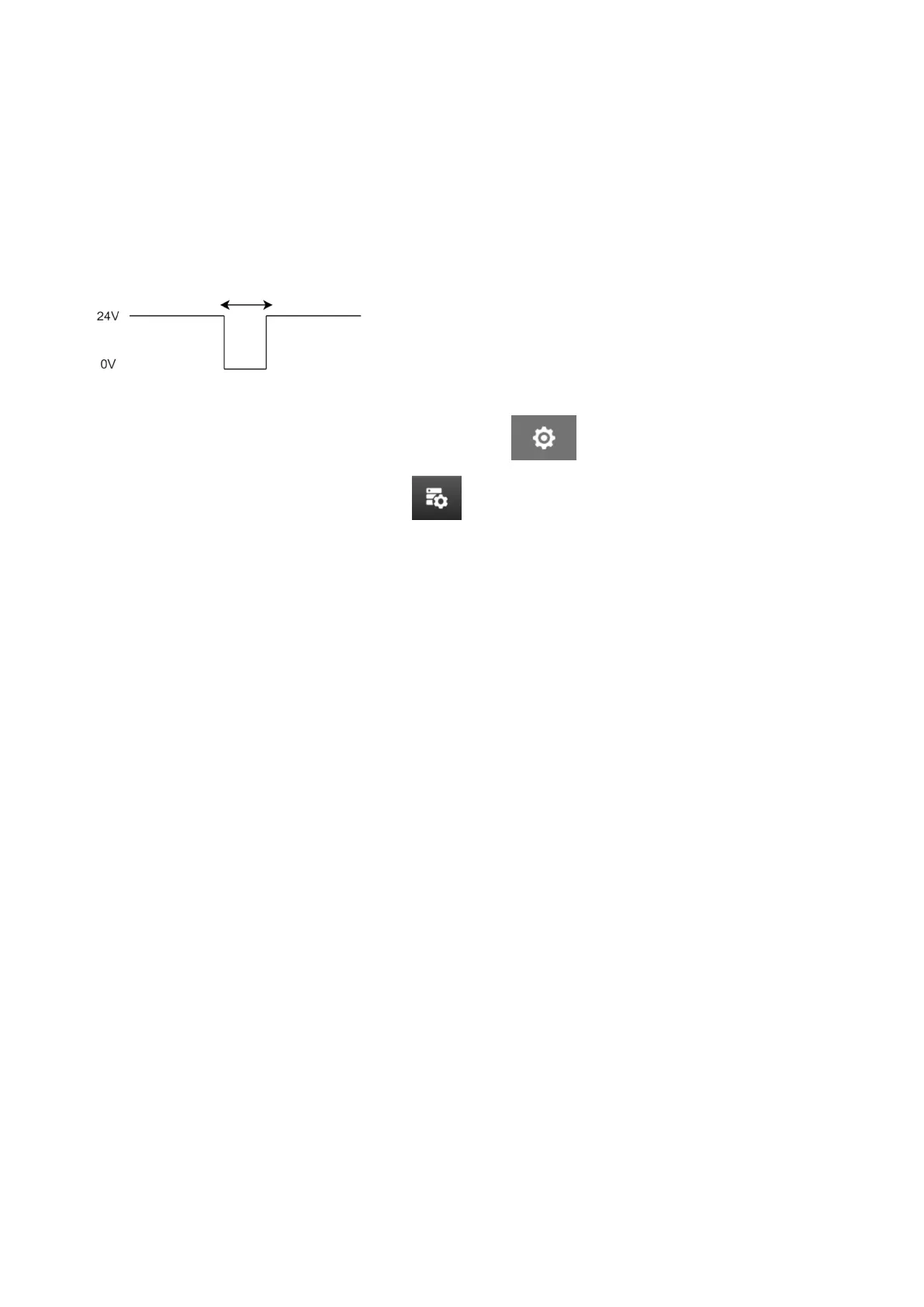

The IO signal pulse width is illustrated in the diagram below:
To enable IO signal and adjust the output pulse width:
1.
From the Home screen, select the Settings icon:
1.
2.
Select the Advanced Settings icon: 2.
3. Turn IO signal On.3.
4. Adjust the Output Pulse width (ms) value, to set the width of the output in milliseconds.4.
INSTALLATION
80 EPT077343 EN - Issue 1 - 11 November 2022
