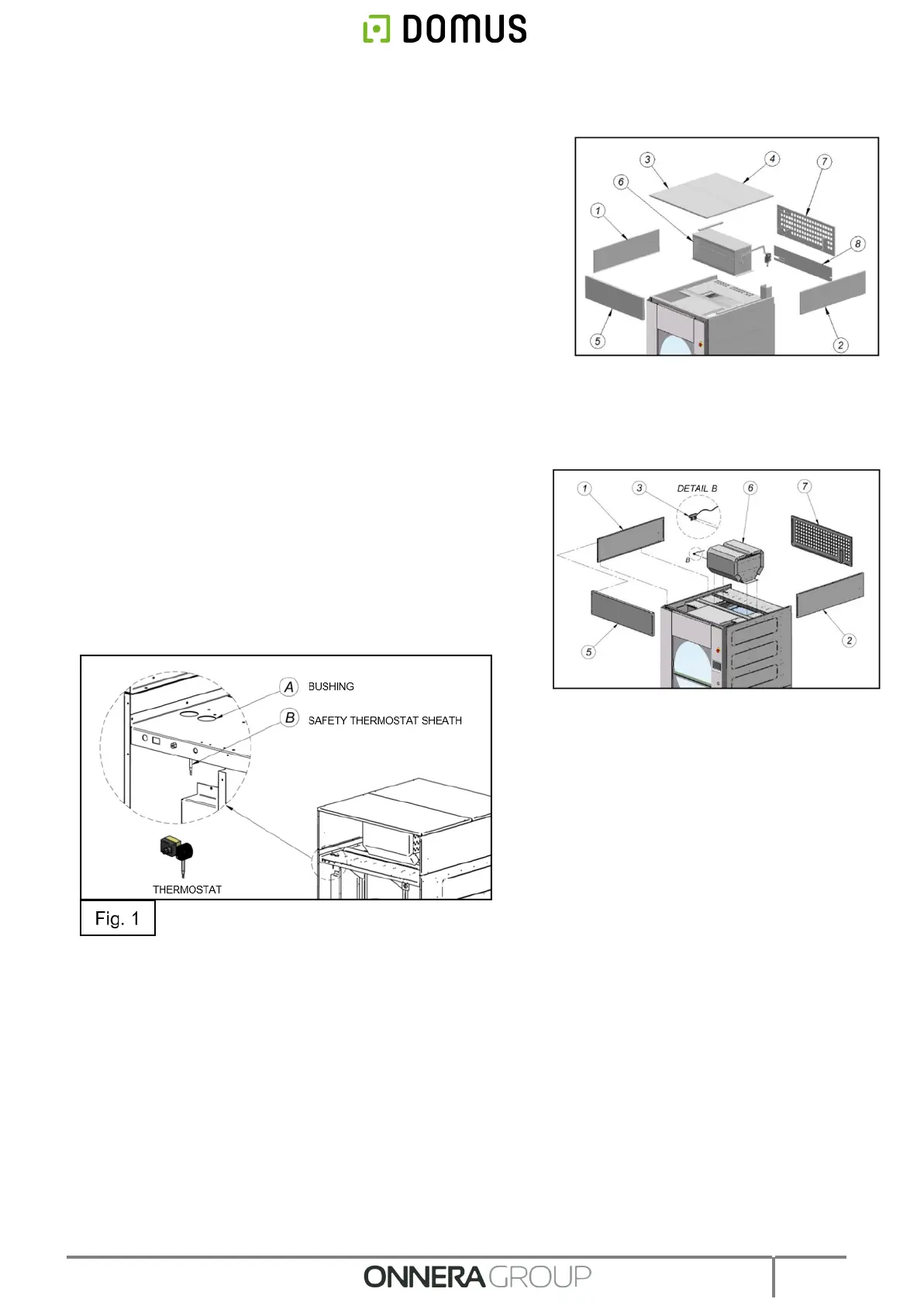

3.9.2. Process for the assembly of the steam battery:
1. Remove ceiling pieces 3 and 4 to access side covers 1 and 2 and
front panel 5 which can be found dismounted inside.
2. Mount battery 6 as shown in the drawing and secure with bolts.
3. Pass the sheath B of the thermostat through the bushing A and
place it with the pre-assembled clamp on the battery (see Fig. 1).
4. Place part 8 (air flow deviator) as shown in the drawing and secure
to the base and then side with rivets.
5. Mount side panels 1 and 2 with the M5x10 bolts.
6. Mount front panel 5 and ceiling pieces 3 and 4 with the M5x40
bolts.
7. Replace rear cover 7 using supplied screws.
3.9.3. Process for the assembly of the electric battery:
1. Remove filter cover to access electric battery 6 found inside.
2. Mount battery 6 as shown in the drawing and secure with bolts.
3. Pass the sheath B of the thermostat through the bushing A and
place it with the pre-assembled clamp on the battery (see Fig. 1).
4. Mount side panels 1 and 2 with the M5x10 bolts.
5. Mount front panel 5 and ceiling pieces using M5x40 bolts.
6. Replace rear cover 7 using supplied screws.
