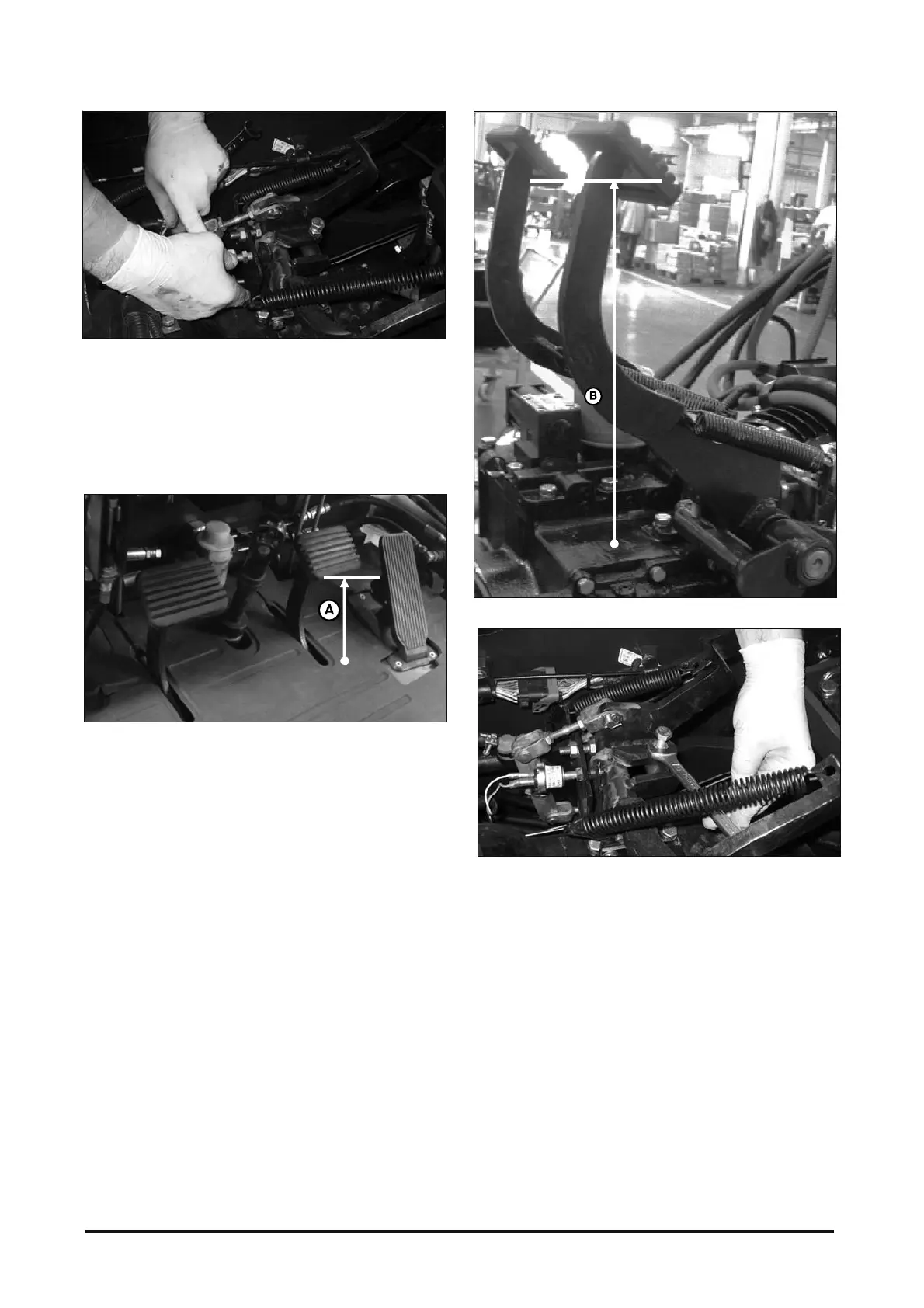

2. Adjust stopper bolt for the brake pedal to meet
130 ~135 mm (A) between end of pedal & floor
plate.
For reference, the distance (B) between the top of
transmission and pedal shown below is about 353
mm
3. After finish the adjustment, tighten the bolt with
nut.
130 ~ 135 mm
353
mm
