Vehicle System Testing and Adjusting 70

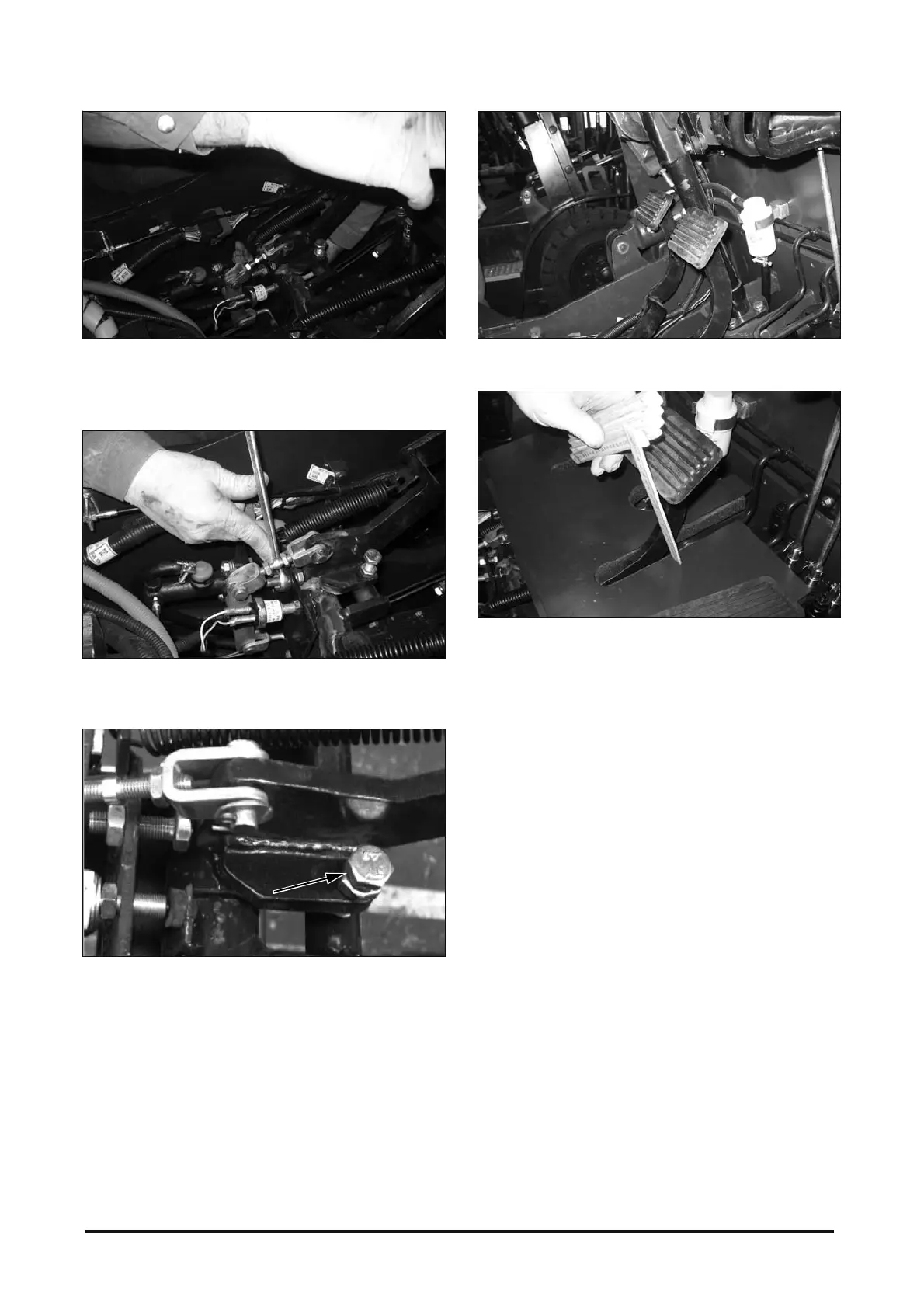

4. Adjust the push rod clearance for the brake
master cylinder. The required free play on the
brake pedal is about 3 ~ 8 mm.
5. Level the height of Inching Pedal with the brake
pedal's by inching rod.
6. Adjust the engaging point of inching pedal to the
brake pedal when the stroke of inching spool
becomes 2 mm.
7. Make sure the same level of 2 pedals.
8. Finally check the distance between floor plate &
end of brake pedal should be 130 mm.
9. Test the brake performance and adjust once
again if required additionally.
