Idle gear(13)

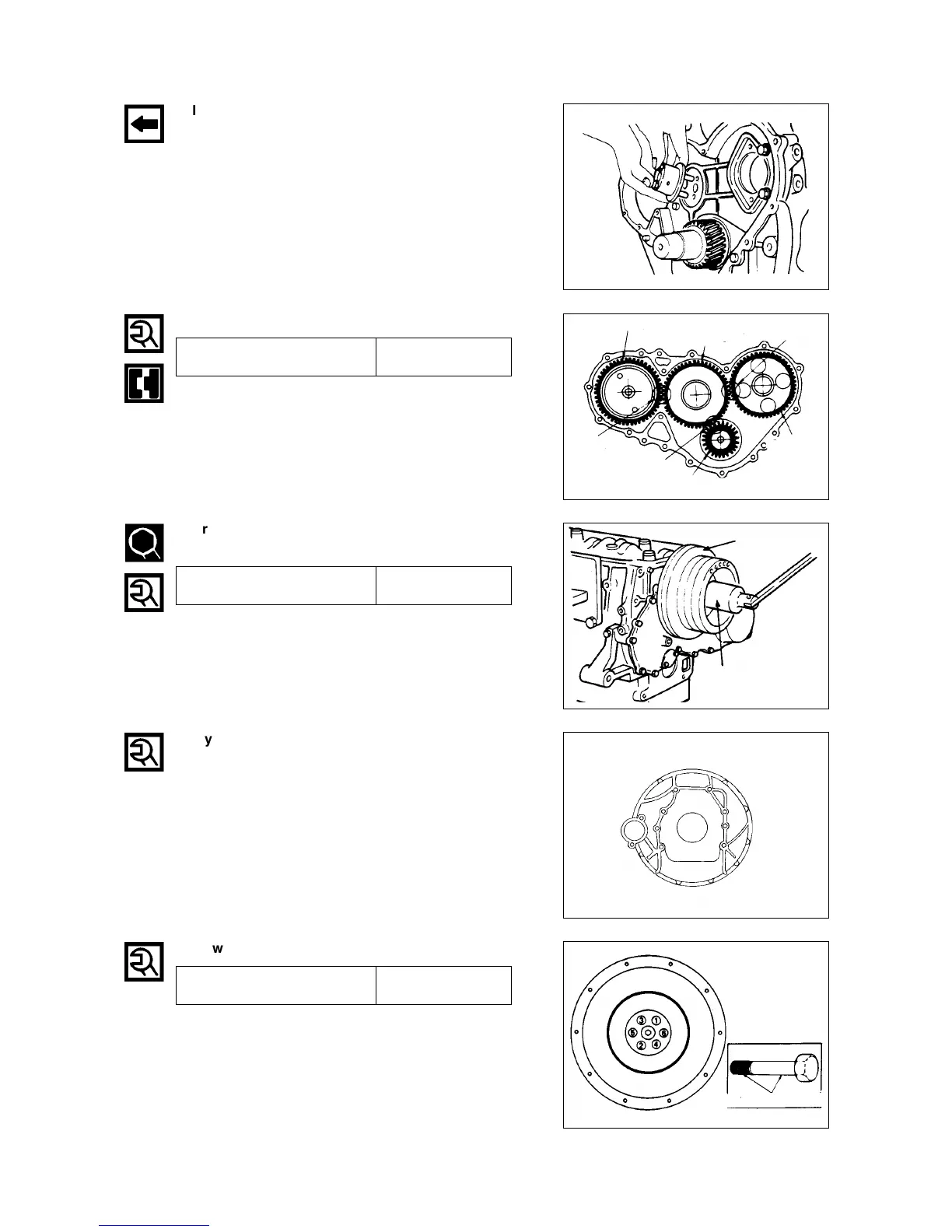

Use the thrust collar fixing bolt as a guide to install the
idler gear shaft.
The oil port must be facing the camshaft.
Set the timing marks (A,B,C) as shown in the figure.
¡¡
‹
Crankshaft front nut (16)
Wrench : 41 mm
¡¡
‹
Flywheel housing (17)
Fixing bolts torque 14kgƒUm (101.25 lb¡⁄ft)
¡¡
‹
Flywheel (19)
Crankshaft
gear
Camshaft gear
"A" mark
"C" mark
"B" mark
Idle gaer
Injection pump gear
Pulley
Wrench
Lubricate with engine oil
Idle gear bolt 2.6
Torque (kgƒUm) (18.8 lb¡⁄ft)
Torque (kgƒUm)
16.0
(115.7 lb¡⁄ft)
Torque (kgƒUm)
2.6
(18.8 lb¡⁄ft)
