DOOR SIDE LATCH
1. Door side latches (1. LH, Figure 107) and (2. RH,
Figure 108) are used to secured the doors (RH, LH) to
the side of the cabin when they are opened.
NOTE: Keep the door closed and locked when machine
is not in use.
2. The RH side door, which is emergency exit from the
cabin, can be opened in two positions.
Position 1. (ventilation position)
• Open the window and secured it with the lock
bar. (A, Figure 109)
Position 2. (full opened position)
• Open the window and push it to backward
3. To release doors from both sides of the cabin. Pull the
handles (Figure 110) in the direction of arrows. The
handles are located on both sides of the operator's
seat.

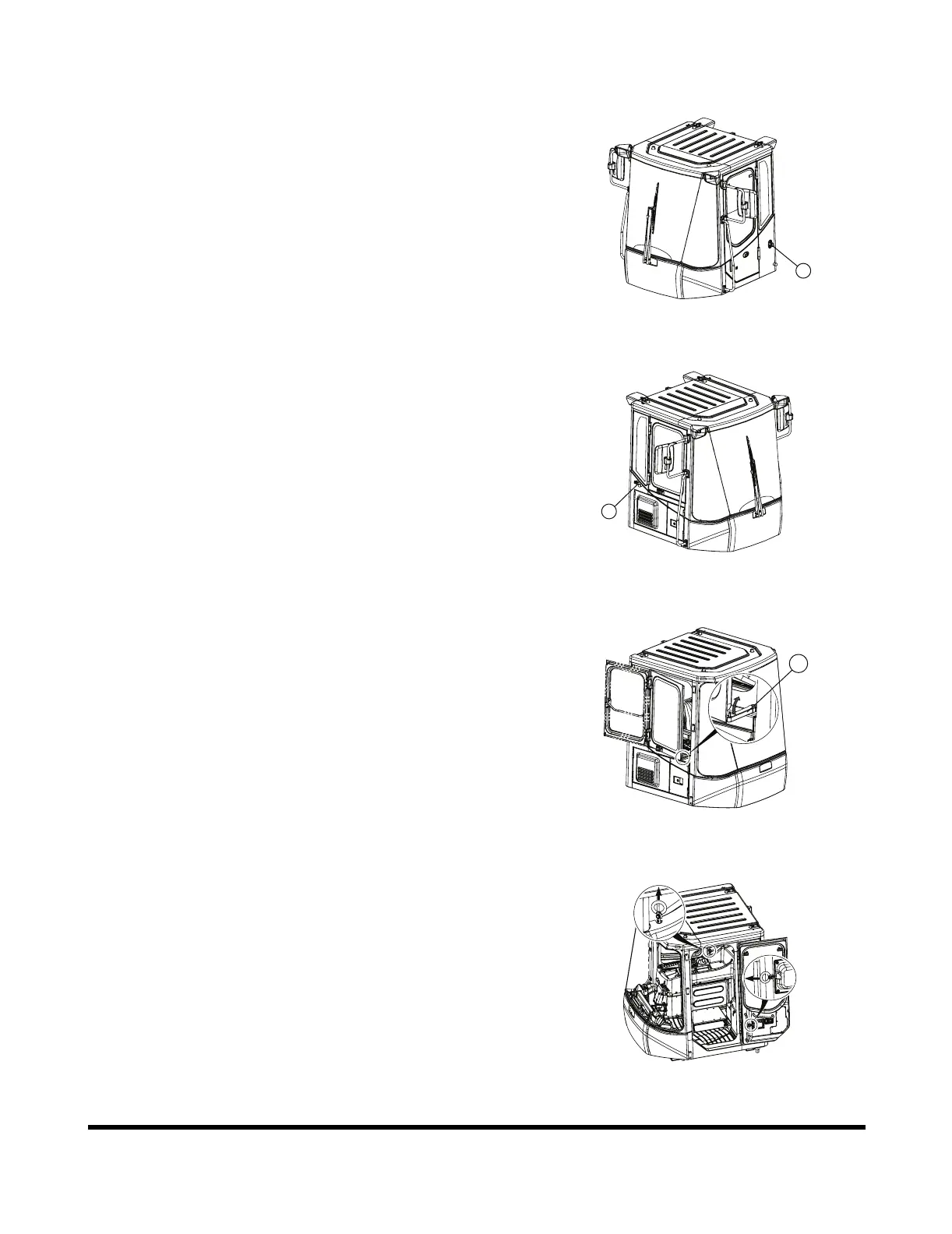

1
FG003894
Figure 107
2
FG003895
Figure 108
A
FG003896
Figure 109
FG003897
Figure 110
