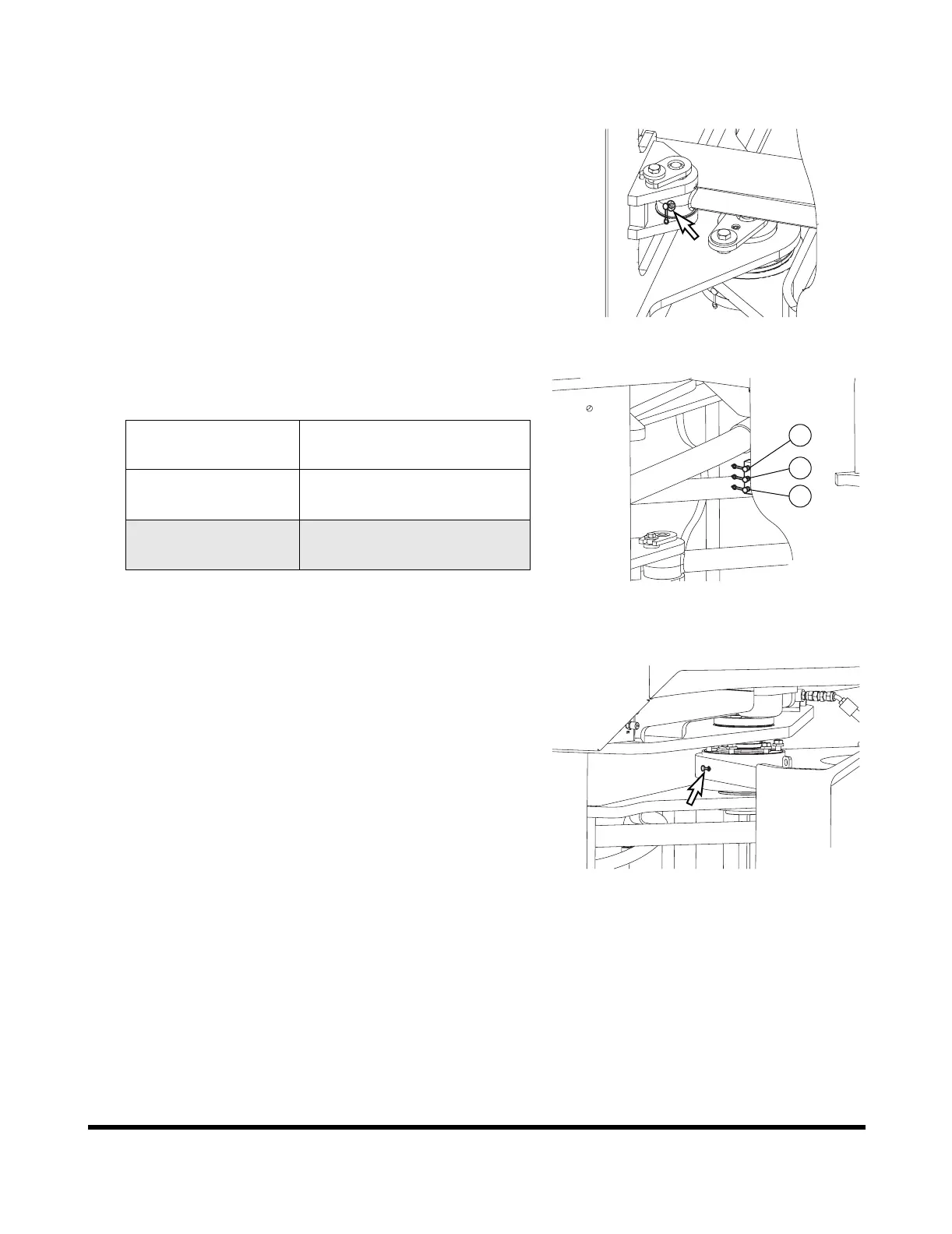

Doosan DL200 - Grease Steering Cylinder Rod and Head Ends; Grease Upper and Lower Center Pins

OP000509
4-39
Inspection, Maintenance and Adjustment
Grease Steering Cylinder Rod and Head
Ends
1. Steering cylinder rods, 2 locations, one on each side of
machine.
2. Steering cylinder head ends, 2 locations. Use remote
grease fittings mounted on frame. (1 and 2, Figure 54).
Grease Upper and Lower Center Pins
1. Center pins, upper (Figure 55) and lower (Figure 56).
Two locations on right side of machine.
FG008101
Figure 53
2
3
1
FG001640
Figure 54
Reference Number
Remote Grease
Fittings
1 and 2,
50 Hours
Steering Cylinder
Head Ends
3,
250 Hours
Drive Shaft
Center Bearing
FG001641
Figure 55
