Doosan DL200 - Right Side Switch Panel

OP000507
2-27
Operating Controls

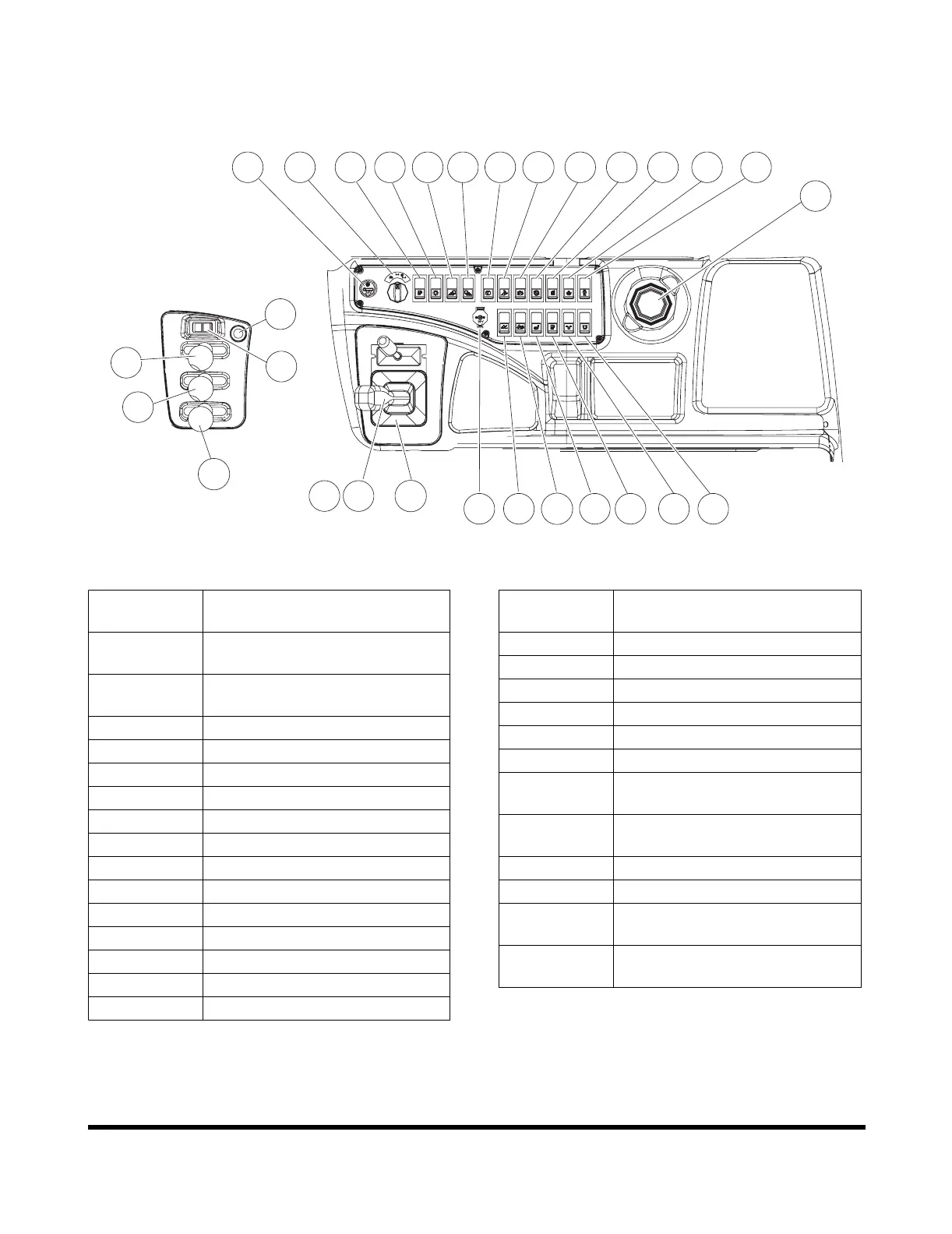

RIGHT SIDE SWITCH PANEL
4 5 6 7 8 9 10 11 12 13 14 15 16
24
1
1A
26
25
18 19 20 21 2223 17
2
2
3
FG006213
< Two/Three Lever (Option) >
3
Figure 50
Reference
Number
Description
1
Pilot Control Valve Lever
(Joystick)
1A
Pilot Control Valve Lever
(Two/Three Lever) (Optional)
2 Kick-down Switch
3 Horn Button
4 Cigar Lighter
5 Automatic Shift Mode Switch
6 Economic Mode Switch
7 Headlight Switch
8 Front Work Light Switch
9 Rear Work Light Switch
10 Rear Wiper Switch
11 Pilot Cutoff Switch
12 Parking Brake Switch
13 Transmission Cutoff Switch
14 Mirror Heating Switch
15 Reverse Fan Switch
16 Engine Diagnostic Switch
17 Boom Float Switch (Optional)
18 LIS Switch (Optional)
19 Seat Heater Switch (Optional)
20 Fuel Heater Switch (Optional)
21
Emergency Steering Test
Switch (Optional)
22
Rotating Beacon Light Switch
(Optional)
23 Power Socket for 12 Volt
24 Cup Holder
25
F/R (Forward/Reverse)
Selector Switch (Optional)
26
F/R (Forward/Reverse)
Control Switch (Optional)
Reference
Number
Description
