OP000509
4-3
Inspection, Maintenance and Adjustment
Service Points
7
65
17
101411
24
13
12
15 16
20
3
25
2122
1
8
24
9
19
18
23
FG008054

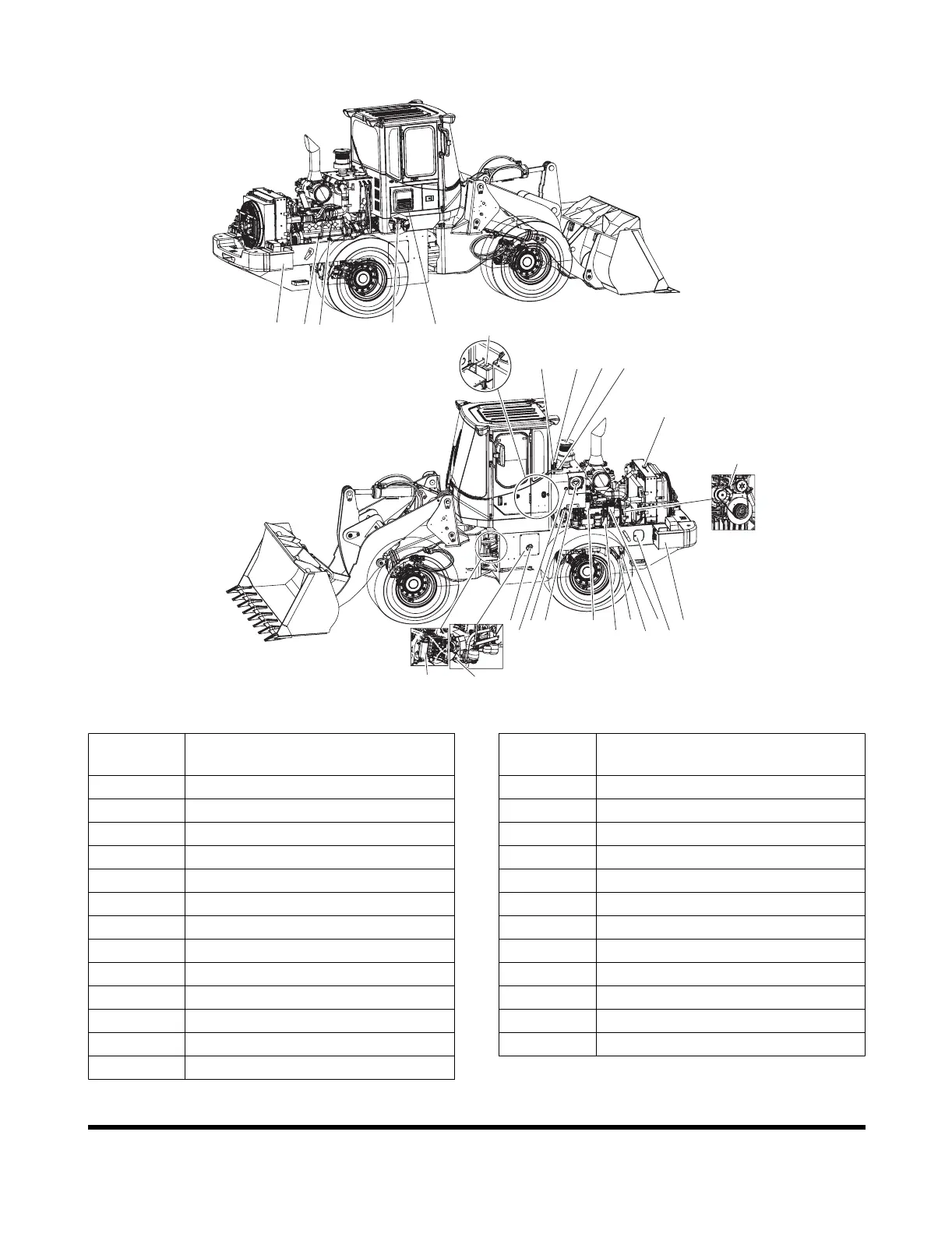

Figure 2
Reference
Number
Description
1 Level Sight Gauge Hydraulic Oil
2 Breather of Hydraulic Oil
3 Air Cleaner
4 Pre Cleaner
5 Filling Point, Fuel
6 Draining, Coolant
7 Pre Fuel Filter
8 Filling Point, Transmission
9 Draining, Hydraulic Oil
10 Pilot Filter
11 Oil Dipstick
12 Oil Filter, Engine
13 Draining, Engine Oil
14 Filling Point, Engine
15 Main Fuel Filter
16 Battery
17 Return Oil Filter
18 Filling Point, Coolant
19 Filing Point, Washer Fluid
20 Filling Point, Hydraulic Oil
21 Ventilation Filters, Cabin
22 Battery
23 Alternator Belt
24 Suction Strainer, Transmission
25 Oil Filter, Transmission
Reference
Number
Description
To Next Page
