Doosan DV11 - Fuel High Pressure Pump Housing Cover

DV11
Operation and Maintenance
103
Engine Reassembly
Printed in Mar. 2005 PS-MMA0608-E1A
Torque 6.2 kg.m
z Adjust the valve clearance as
reference of major maintenance
part.

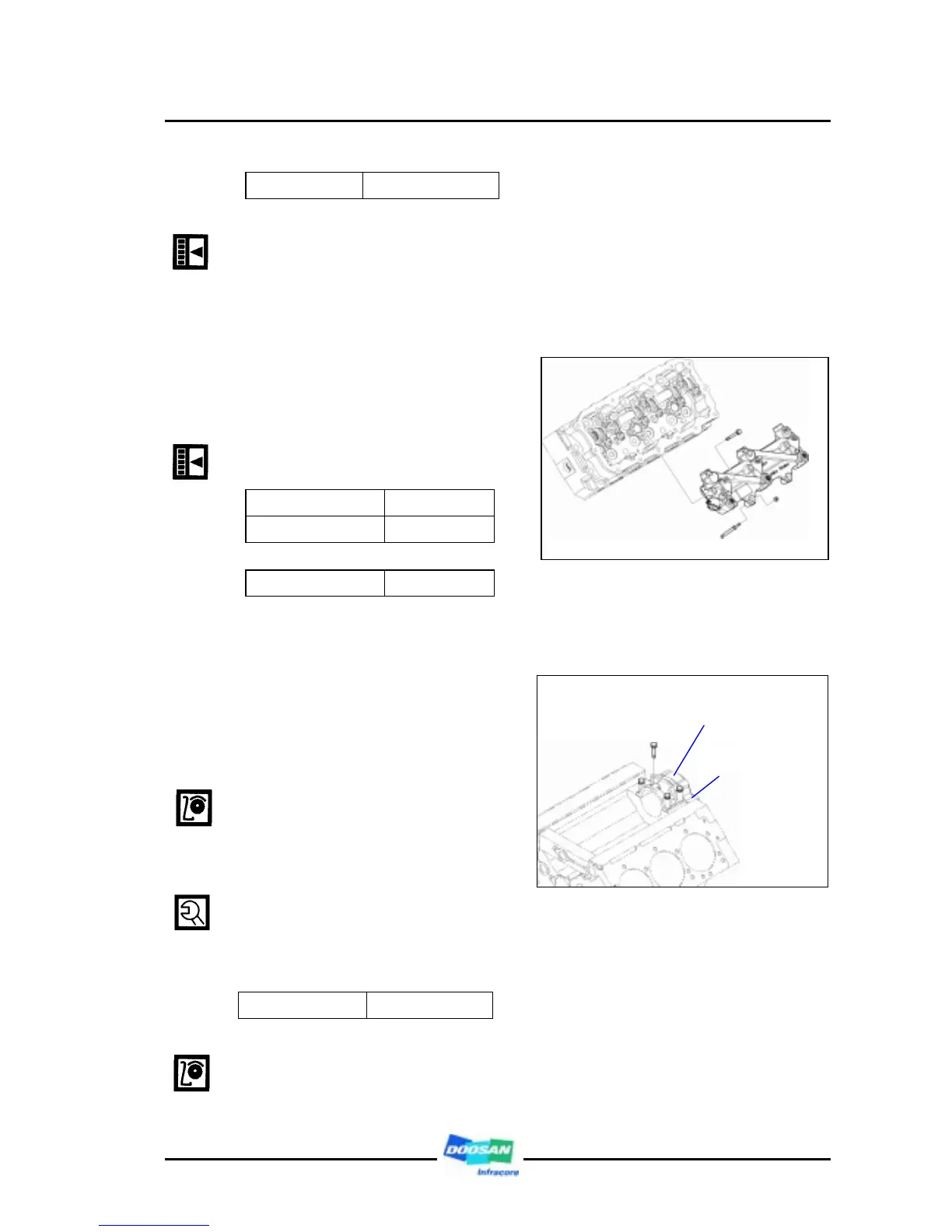

3.3.18. Engine brake
z Put the engine brake on the rocker
arm of the cylinder head, then
assemble the engine brake.
z Adjust the clearance of the slave.
Fixing bolt 6.2 kg.m
Fixing nut 2.5 kg.m
Slave clearance 1.5mm
3.3.19. Fuel high pressure pump housing cover
z Coat with the liquid gasket on the
surface of the cylinder block for
mounting of the fuel high pressure
pump housing cover.
z Assemble the fuel high pressure
pump housing cover after check
the serial number of the cylinder
block and the pump housing cover.
z Tighten the fixing bolts of the fuel
high pressure pump housing cover
by the specified tightening torque.
Torque 7.5 kg.m
NOTES:
Do not mingle with the pump housing cover and cylinder block randomly.
Serial no. mark position
(Fuel high pressure
pump housing cover)
Serial no. mark position
(Cylinder block)
