DV11
Operation and Maintenance
196
Maintenance of Major Components
Printed in Mar. 2005 PS-MMA0608-E1A

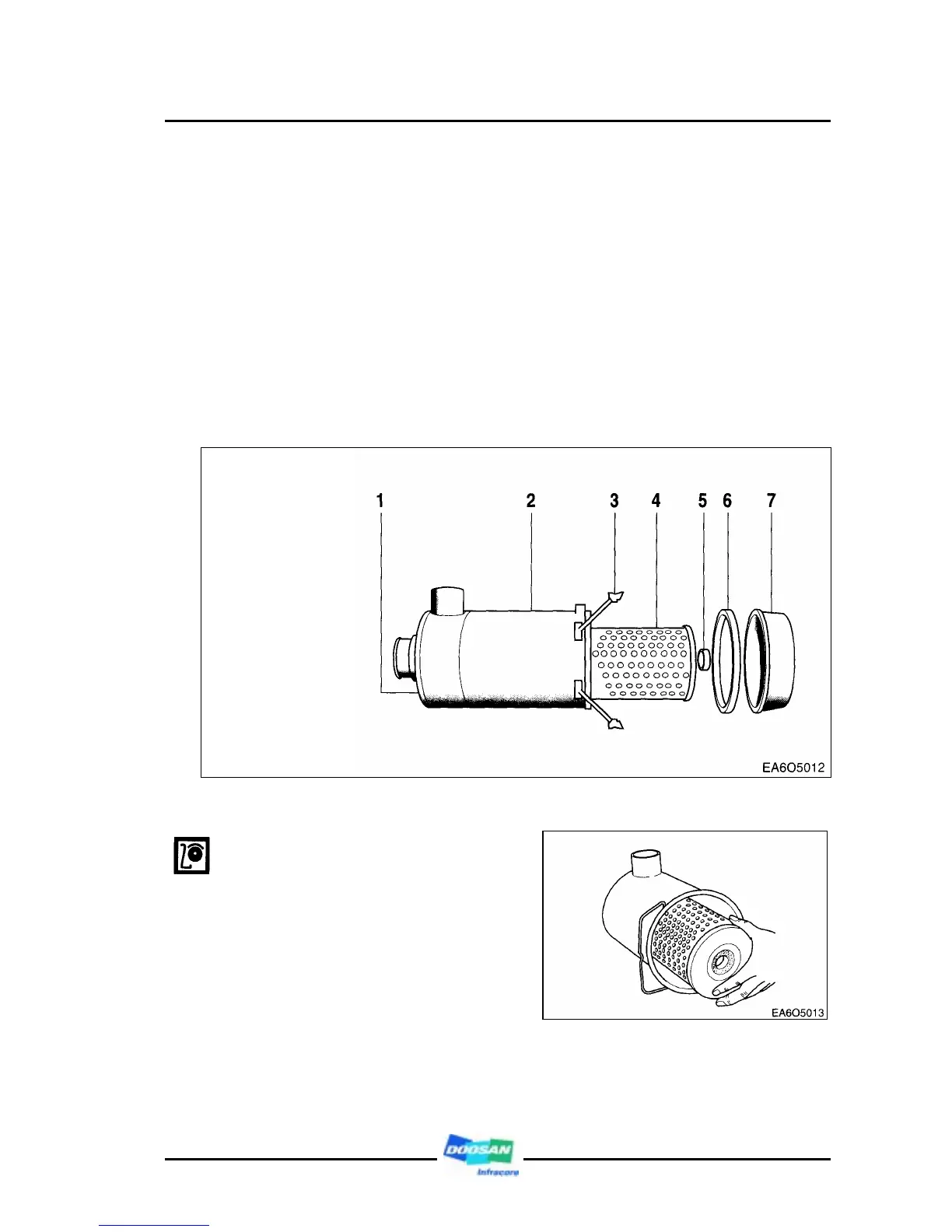

5.4. Air cleaner
5.4.1. Maintenance of air cleaner
(Only when engine is switched off)
Empty the dust bowl (7) regularly. The bowl should never be filled more than halfway
with dust.
On slipping off the two clamps (3), the dust bowl can be removed. Take off the cover
(6) of the dust bowl and empty.
Be careful to assemble cover and bowl correctly.
There is a recess in the cover rim and a lug on the collector which should register.
Where the filter is installed horizontally, watch for “top” mark on cleaner bowl.
5.4.2. Changing air cleaner element
CAUTION:
Do not allow dirt to get into the
clean air end.
z On removing the hexagon nut, take
out the dirty cartridge and renew or
clean.
z Wipe the cleaner housing with a
damp cloth, in particular the sealing
surface for the element.
1. Connection port and
fouling indicator
2. Cleaner housing
3. Clamp
4. Element
5. Hexagon nut
6. Cover
7. Dust bowl
