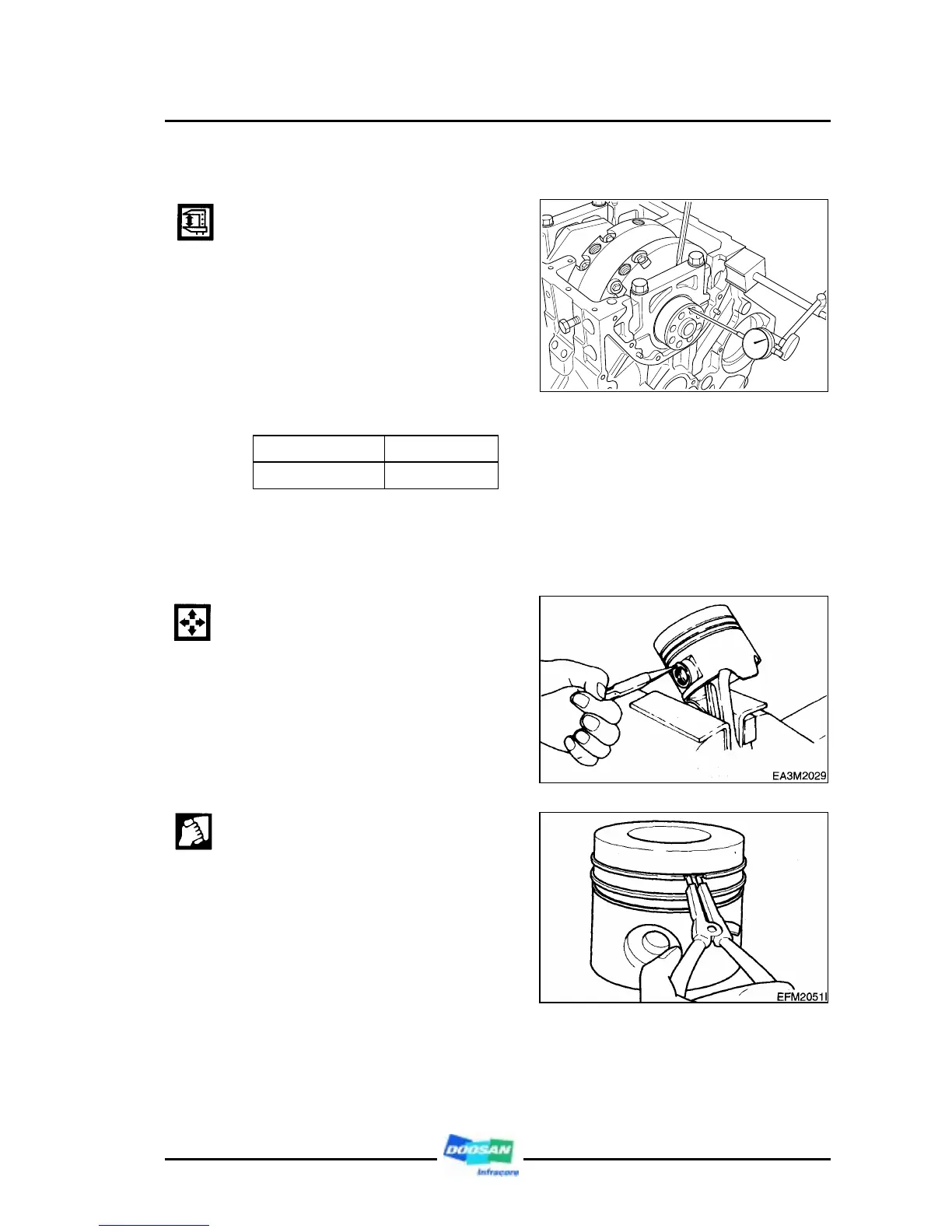

d) Crank shaft end play
z Assemble the crankshaft to the
cylinder block with a dial gauge,
measure crankshaft end play.
< Crank shaft end play >
Standard Limit
0.190 ∼ 0.322 mm
0.452 mm
3.2.7. Piston
1) Piston disassembling
z Pull out the snap ring for piston
pin and with a pair of snap ring
pliers.
z With a round bar, remove the
piston pin.
z With a pair of pliers, remove the
piston rings.
z Clean the piston thoroughly.
