1.5. Engine Assembly

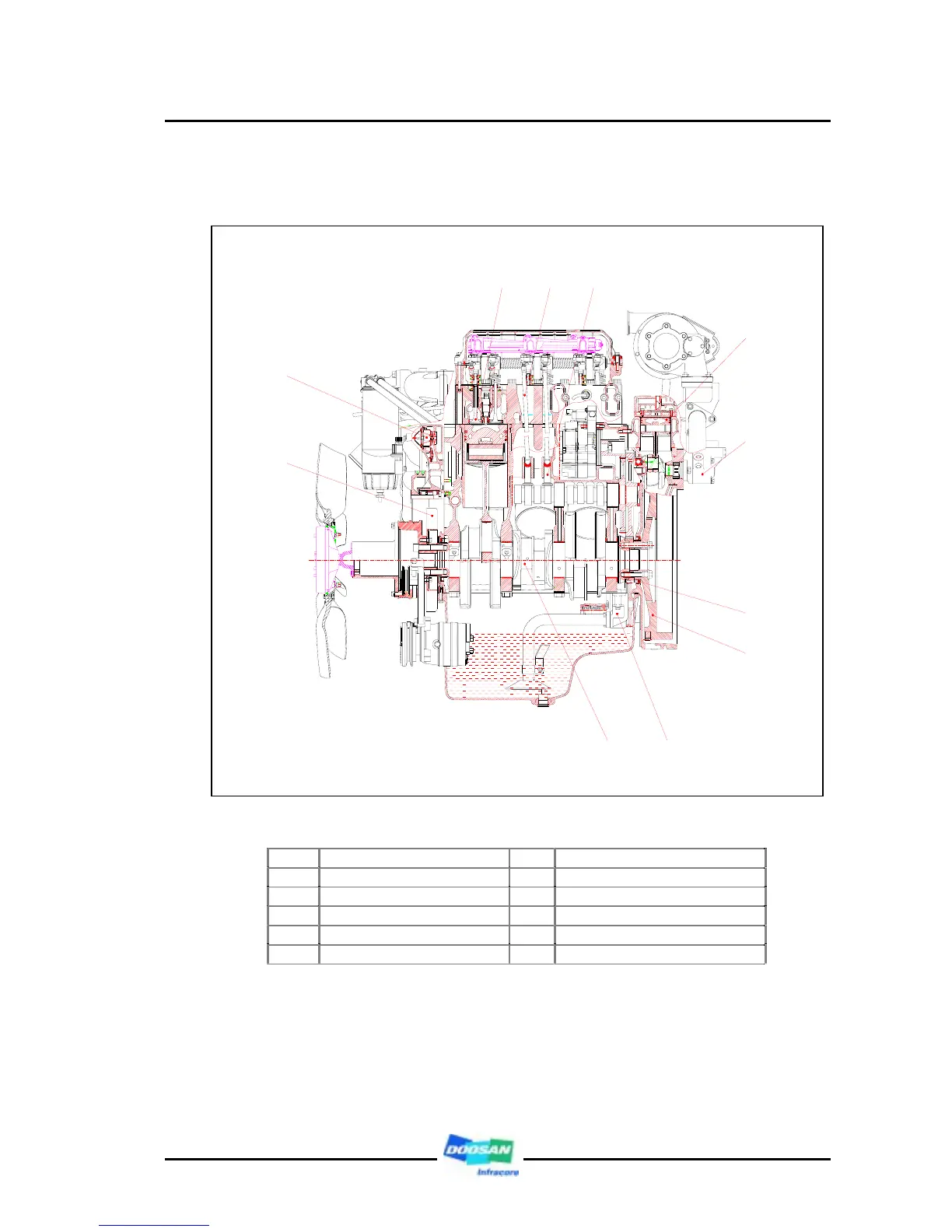

1.5.1. Engine sectional view (longitudinal)
1 Vibration damper 7 Power steering pump
2 Thermostat 8 Oil seal
3 Exhaust valve 9 Fly wheel
4 Push rod 10 Crank shaft
5 Tappet 11 Oil pump
6 Air compressor
1
2
3 4 5
6
7
8
9
10 11
