Doosan DV11 - Air Pipe and Air Heater; Cooling Fan and Fan Clutch; V-Belt

DV11
Operation and Maintenance
56
Engine Disassembly
Printed in Mar. 2005 PS-MMA0608-E1A

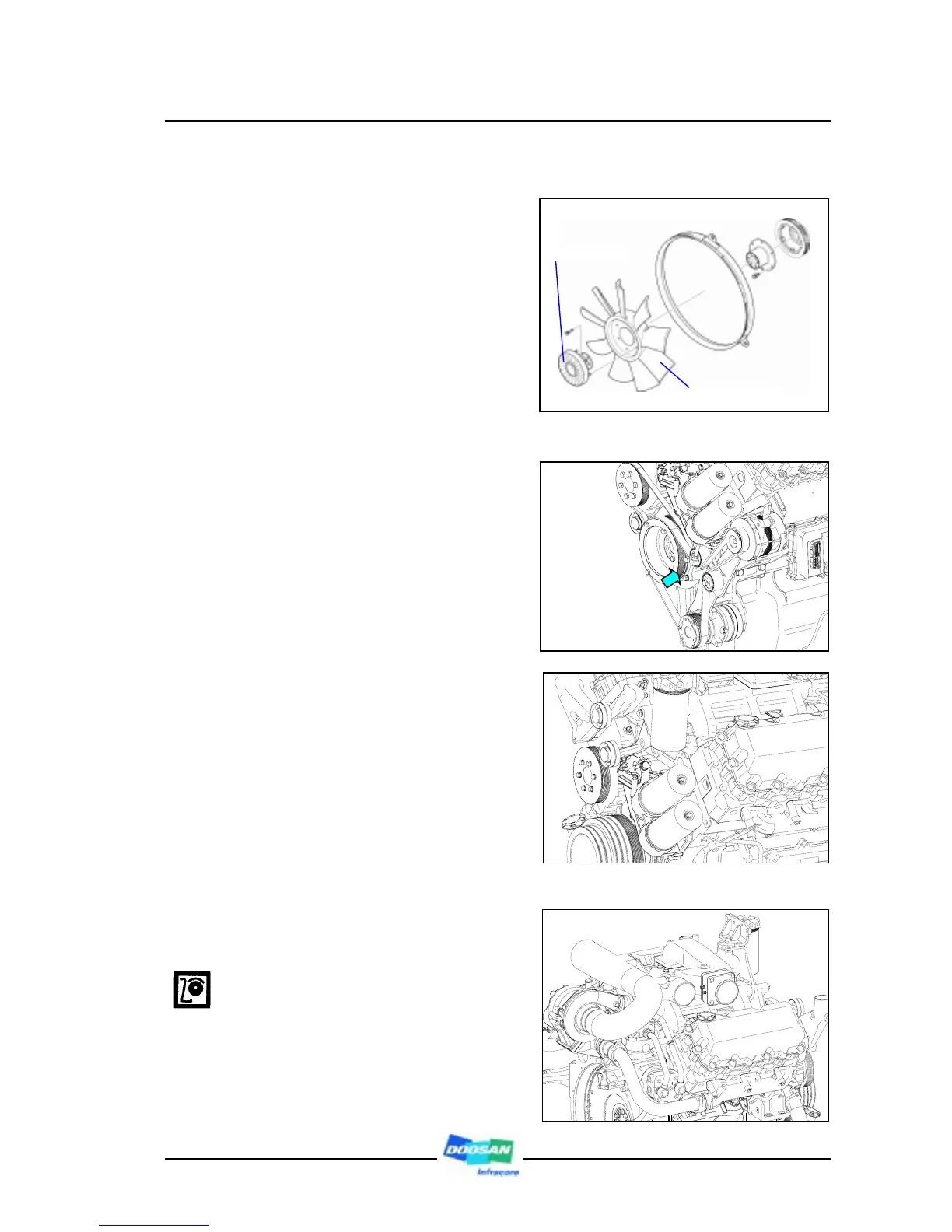

3.1.6. Cooling fan & fan clutch
z Remove fan fixing bolts, then take
off the cooling fan and clutch.
3.1.7. V-belt
z Loosen the V-belt tension adjusting
bolts, and remove the V-belt.
3.1.8. Air pipe & air heater
z Remove fixing bolts, then take off
the air pipe and air heater.
z Be careful about the mixing of
foreign material into interior of the
turbocharger.
Tension
adjusting bolt
F
an c
l
utc
h
C
oo
li
ng
f
an
