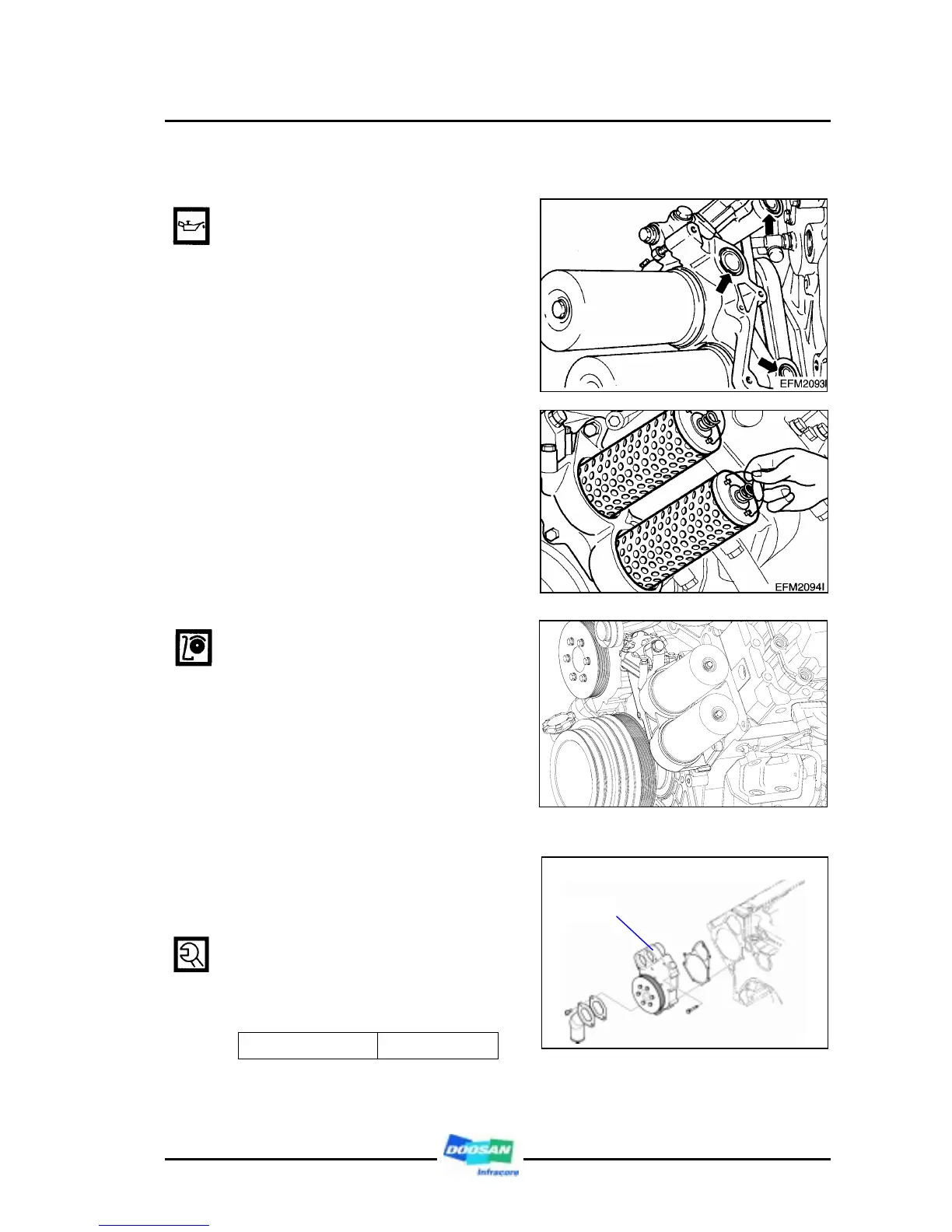

3.3.33. Oil filter
z Insert greased O-rings into the oil
port of the oil filter head. (Prevent
the O-ring from slipping out.)
z Install the filter head on the cylinder
block and tighten bolts in a
diagonal sequence.
z Install the oil filter element in the oil
filter assembly.
z Install new O-rings (Packings) in
the oil filter housing. (Filter element,
Cu-washer, and packing are
supplied together as A/S parts.)
z Assemble the oil filter housing with
the filter head (Be careful not to
damage the O-ring.)
z Place Cu-washer over filter
housing fixing bolt and tighten the
bolt.
3.3.34. Water pump
z Attach a gasket at the cooling water
pump. (at cylinder block side.)
z Assemble the cooling water pump
by tightening the fixing bolts.
(Zigzag method.)
Torque 4.4 kg.m
Water pump
