Doosan DV11 - Page 145

DV11
Operation and Maintenance
140
Common Rail Fuel-injection System
Printed in Mar. 2005 PS-MMA0608-E1A

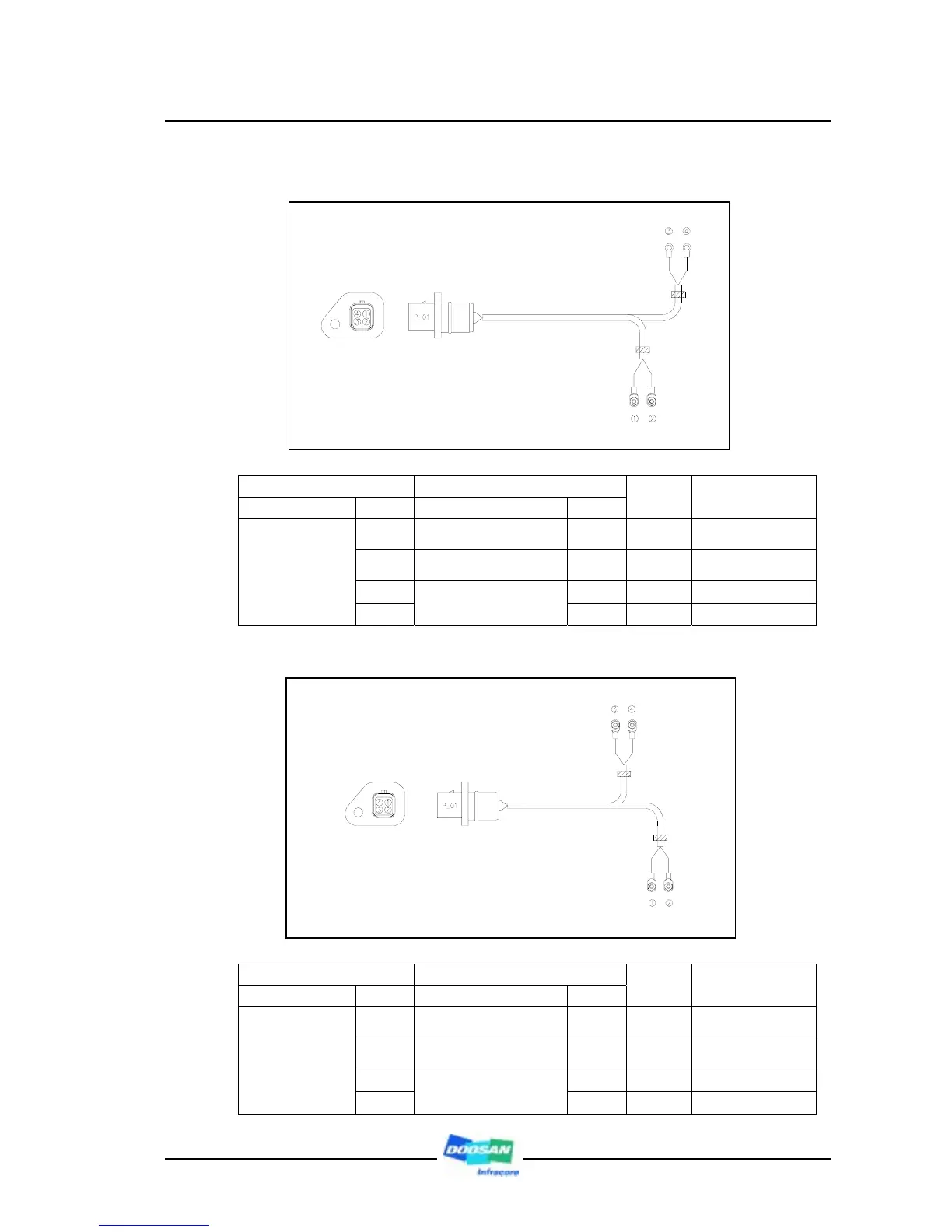

2) Harness of injector & engine brake - A (inside)
Side of ECU harness Side of engine brake
Connector no. Pin no. Connector no. Pin no.
Wire
color
Circuit name
1 Y462 U00 226(Bosch) 1 White
High side of
injector
2 45360.212.179(GHW) 2 White
Low side of
injector
3 3 White Engine brake 1st
P_01
99013-00300
(AMP)
65.26810-5003
(DHIM)
4
GP110012(KET)
4 White Engine brake 2nd
3) Harness of injector & engine brake – B (inside)
Side of ECU harness Side of engine brake
Connector No Pin No Connector No Pin No
Wire
color
Circuit name
1 Y462 U00 226(Bosch) 1 White
High side of
injector
2 45360.212.179(GHW) 2 White
Low side of
injector
3 3 White Engine brake 1st
P_01
99013-00300
(AMP)
65.26810-5003
(DHIM)
4
GP110012(KET)
4 White Engine brake 2nd
