DV11
Operation and Maintenance
91
Engine Reassembly
Printed in Mar. 2005 PS-MMA0608-E1A

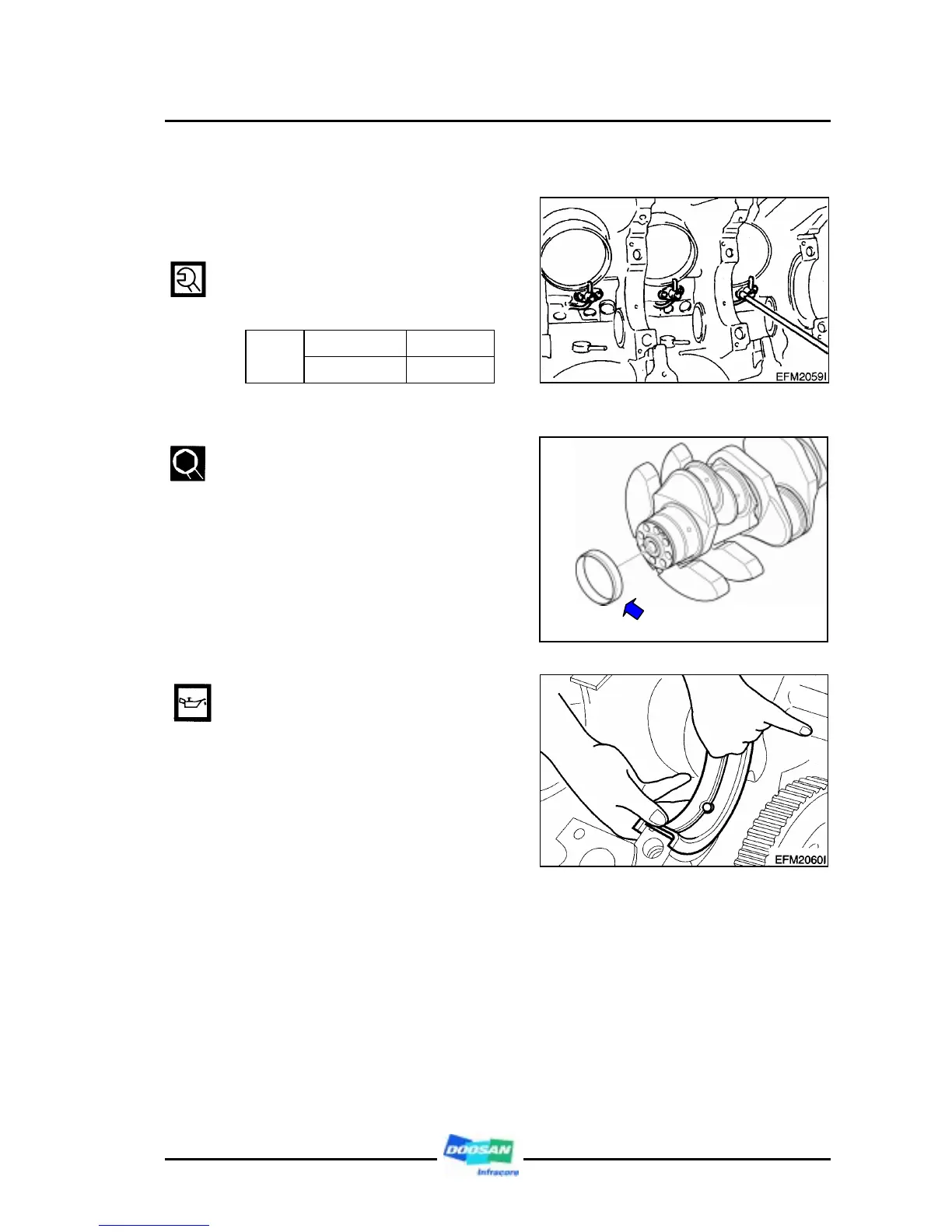

3.3.3. Oil spray nozzle
z Tighten the oil injection nozzle
flange with hollow screws.
z Assemble the oil injection nozzle
with the fixing bolts.
Hollow screw 7 kg.m
Tor que
Fixing bolt 1.2 kg.m
3.3.4. Crank shaft
z Put the wear ring into the heater to
heat it up to 150 ∼ 200 °C level,
push it over the crankshaft by
means of a jig.
z Assemble the main bearing to the
cylinder block and coat it with
engine oil. Then assemble the
bearing that has a hole to the
cylinder block side and one that
has no hole to the bearing cap and
be careful not to change.
z Assemble temporarily one bolt
each at both bolt holes of
crankshaft and by connecting the
wire to the bolts, lift it with crane or
chain block and put down on the
cylinder block carefully.
Wear ring
