ED700
Low Energy
Automatic Swing Door
DORMA
18
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: 877-423-7999 DL3038-010 Rev. B 6/08
E-mail: automatics@dorma-usa.com
Subject to change without notice

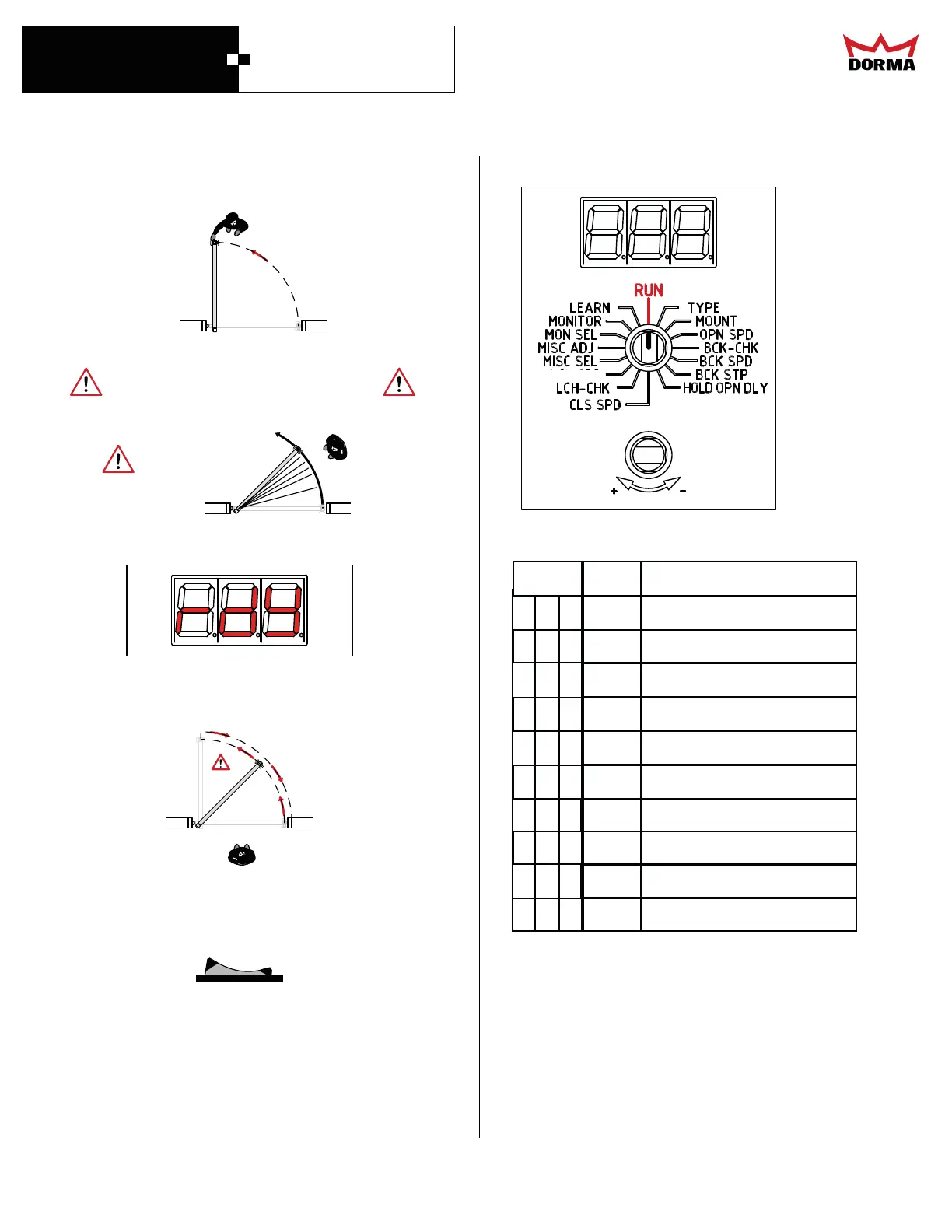

Please let the door close. Stand clear.
Let go of the door and
MOVE OUT OF THE WAY!
• The door will begin to open slowly. Stop the
door at the desired Back Stop position until it
begins to close back to latch position.
• The door will now SLAM open to 45, to measure it’s
inertia.
Sensors are disabled,
during learn cycle!
STAND CLEAR!
o
• When the controller has learned all of it’s self-
adjustments, the display will show “rdY”.
Basic Set-Up
• The door will now cycle open and close
continuously. The door has reduced obstacle
detection, DO NOT INTERFERE WITH DOOR!
• If you are satisfied with the door’s operation,
turn the mode switch to the “OFF” position and
allow the door to close completely.
NOTE: If door motion is undesirable , or if
adjustments need to be made to meet ANSI
guidelines, refer to page 19, 26 and 27 for
additional control settings.
Note: In some situations you may have to assist
the door during learn cycle during the initial
opening.
OFF
• Turn the selector knob to “RUN”.
The door is now ready for normal
operation.
• The display will show the present state
of the opener.
NOTE: If there is an exception to it’s operation, it
will show a code for it. If an exception code is
displayed, see pages 26 and 27 for details.
• Test the opener’s operation.
• Test that the door meets ANSI standards.
• FOR ADDITIONAL SET-UP OPTIONS, SEE CUSTOMIZED
SET UP PAGE 20.
STATES
Closed Door is at Latch-Stop
Opening Opener is opening to Back-Stop
User may open door with opener’s
assistance
Opened Opener is holding door at Back-Stop
Acts as a passive closer, letting user
open door manually, closing the door
Closing Opener reacted to obstacle during
Obstacle closing cycle
Learning Opener is learning
CODE
DESCRIPTION
C
d
L
O
P
n
A.
O
P
d
C
r
L
C.
O
b
O
b
Open Opener reacted to obstacle during
Obstacle opening cycle
A
L
L
C
y
C
Opener is going through a learning
cycle
r s
t
Reset Opener is being reset
Power
Assist
Cycle
Closer
O.
P.
