Product descriptionTechnical Manual
1108/2017 dormakaba c-lever compact
3 Product description
This section provides an overview of the product and gives information on technical details.
3.1 Overview
The c-lever compact is an electronic door fitting complete with an antenna (reading antenna)
and mechatronics unit in the outside shield. After identification using authorised media, the
lock and door can be opened manually. An acoustic and optical signal denotes access author-
isation.
c-lever compact with wireless module and activated wireless function:
the device communicates via wireless gateway with the host system.
The system software determines the supported functions.
See also the wireless planning guideline and instructions for the system software

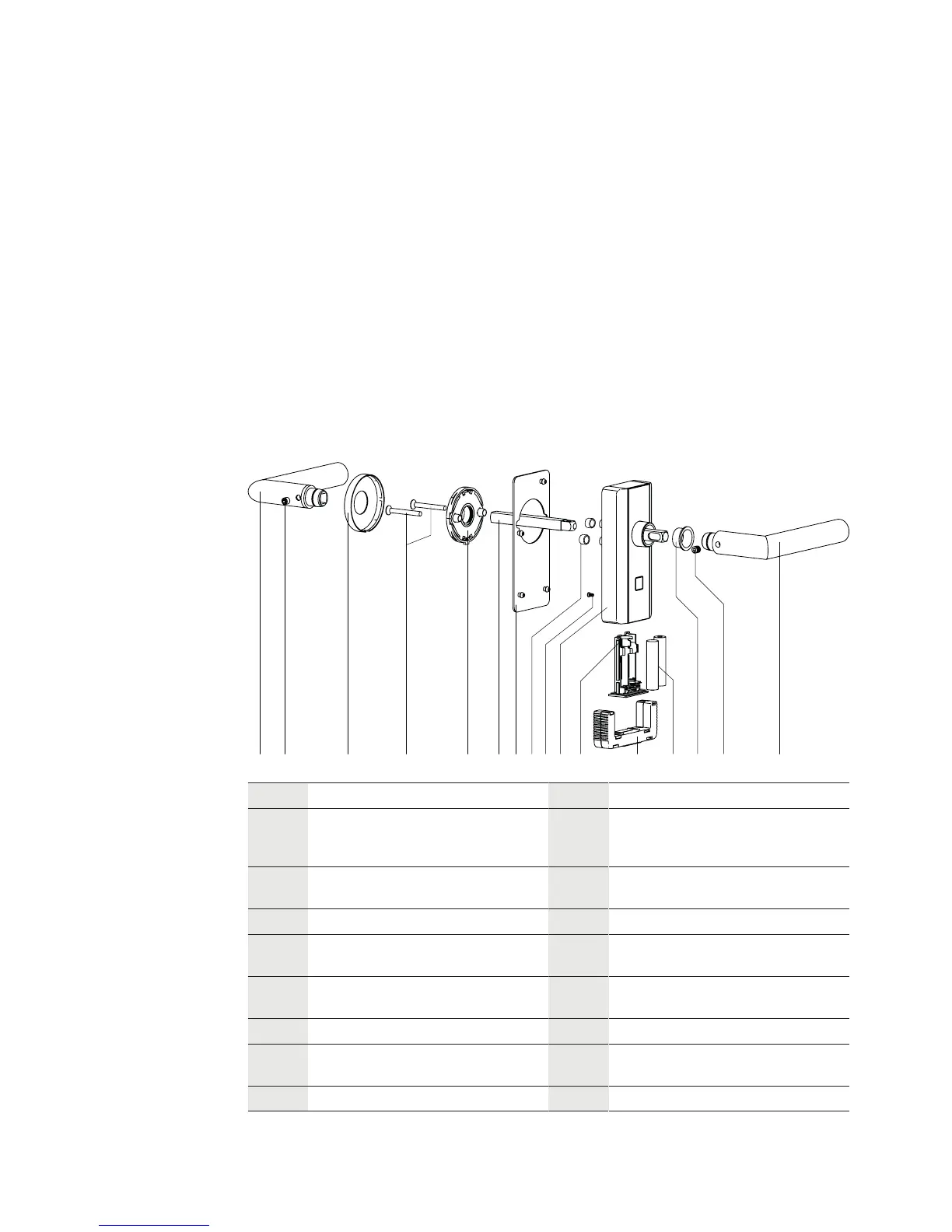

3.2 Structure
1 2 3 161513 144 6 75 8 9 11 1210
Item Item
1 Inside handle (optional) 9 M2.5x6 battery holder locking
screw
Not included in scope of delivery
2 M6x6 threaded pin (ISO 4029 /
DIN 916)
10 Mechatronics unit with backplate
3 Inside rosette cover (optional) 11 Battery holder
4 Fixing screws for inside rosette
(2 pieces)
12 Opening tool (optional)
5 Inside rosette ‘round’ (optional) 13 Batteries, AAA lithium
(2 pieces)
6 Spindle (square pin) 14 Guide ring
7 Flexible support plate (increases
torque resistance)
15 M6x8 threaded pin (ISO 4029 /
DIN 916)
8 Sleeves 16 Outside handle
