Dormakaba 2725-K6 - Battery holder insertion; Additional torsion lock

Installation Technical Manual
16 08/2017dormakaba c-lever compact

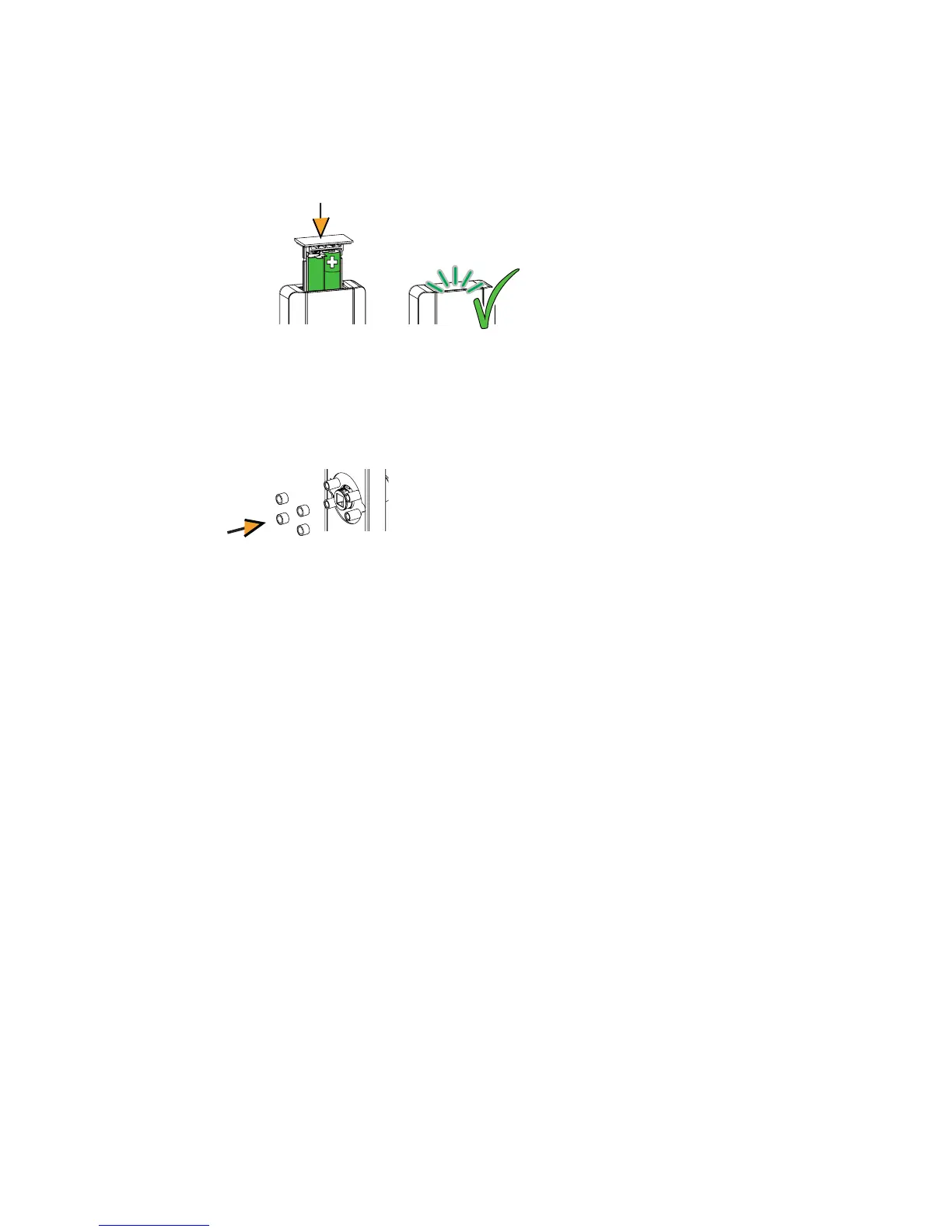

4.3 Inserting the battery holder
• Insert the battery holder, complete with batteries, into the mechatronics unit.
– The battery holder clicks into place.
– The green light briefly illuminates once.
1x
4.4 Additional torsion lock
• Measure the drill hole diameter on the door.
• Select suitable sleeves to bridge the gap.
• Attach the sleeves.
( )
( )
( )
( )
