InstallationTechnical Manual
1908/2017 dormakaba c-lever compact
3. Align the cover and place it on the rosette.
4. Attach the lever handle in the desired position on the spindle.
ð The lever handle locks audibly into place.
5. Screw the lever handle securely in place using the M6x6 pin screw.

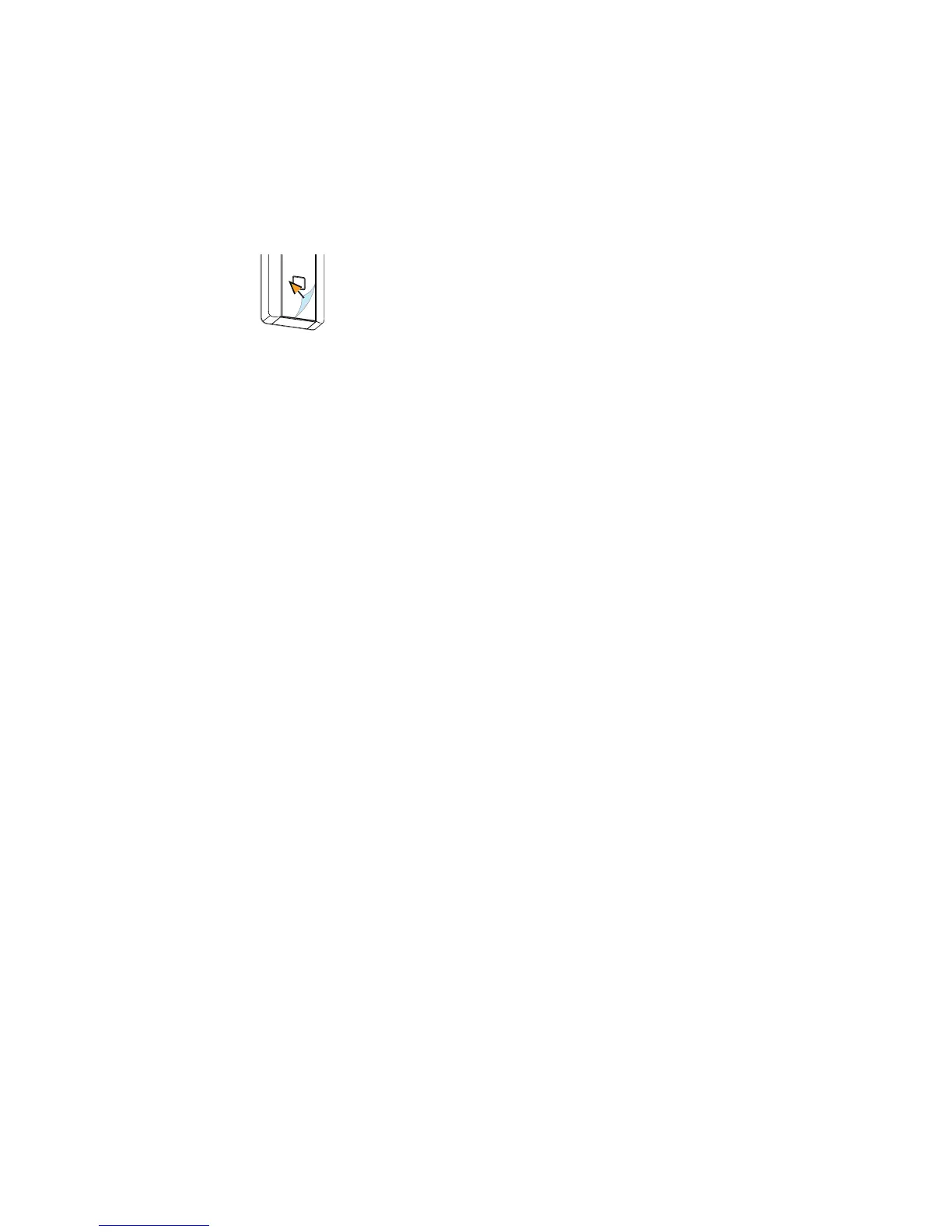

4.10 Removing the protective film
• Remove the protective film.
4.11 Switch off 'Bolt Recreation Time'
• Switch off 'Bolt Recreation Time' in the system software and transfer to the device using
the programmer.
Refer to the documentation for currently installed system software.
'Bolt Recreation Time' defines the time interval at which the engaging state of the mechat-
ronics unit should be checked.
