Dormakaba 2725-K6 - Spindle mounting; Inserting c-lever into lock; Mounting inside rosette

Installation Technical Manual
18 08/2017dormakaba c-lever compact

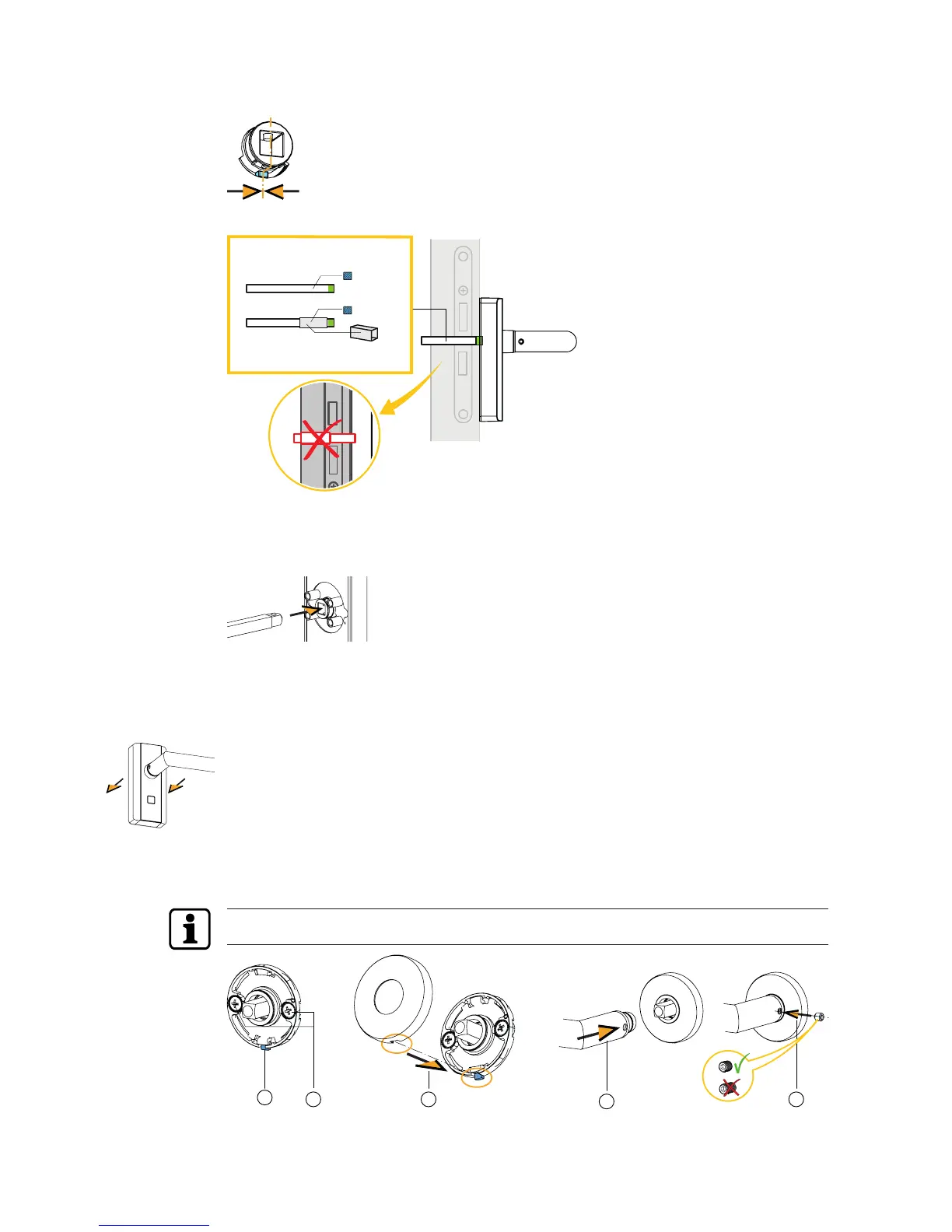

4.7 Mounting the spindle
1. Centre the lug (highlighted in blue) if it is not already central.
8 x 8
8,5 x 8,5
(mm)
2. Align the spindle correctly.
3. Insert the spindle into the mechatronics unit as shown.
ð The spindle clicks into place.
4.8 Inserting the c-lever into the lock
With the spindle on the outside of the door, push the c-lever through the lock hub.
4.9 Mounting the inside rosette and lever handle
The lever handle can only be removed with a special tool after attaching it to the rosette.
1.
2. 3. 5.
4.
1. Attach the (optional) rosette with the plastic attachment (highlighted in blue) pointing
down. Align the c-lever on the door.
2. Screw the rosette securely in place.
