Dormakaba 2725-K6 - Product dismantling

Installation Technical Manual
20 08/2017dormakaba c-lever compact

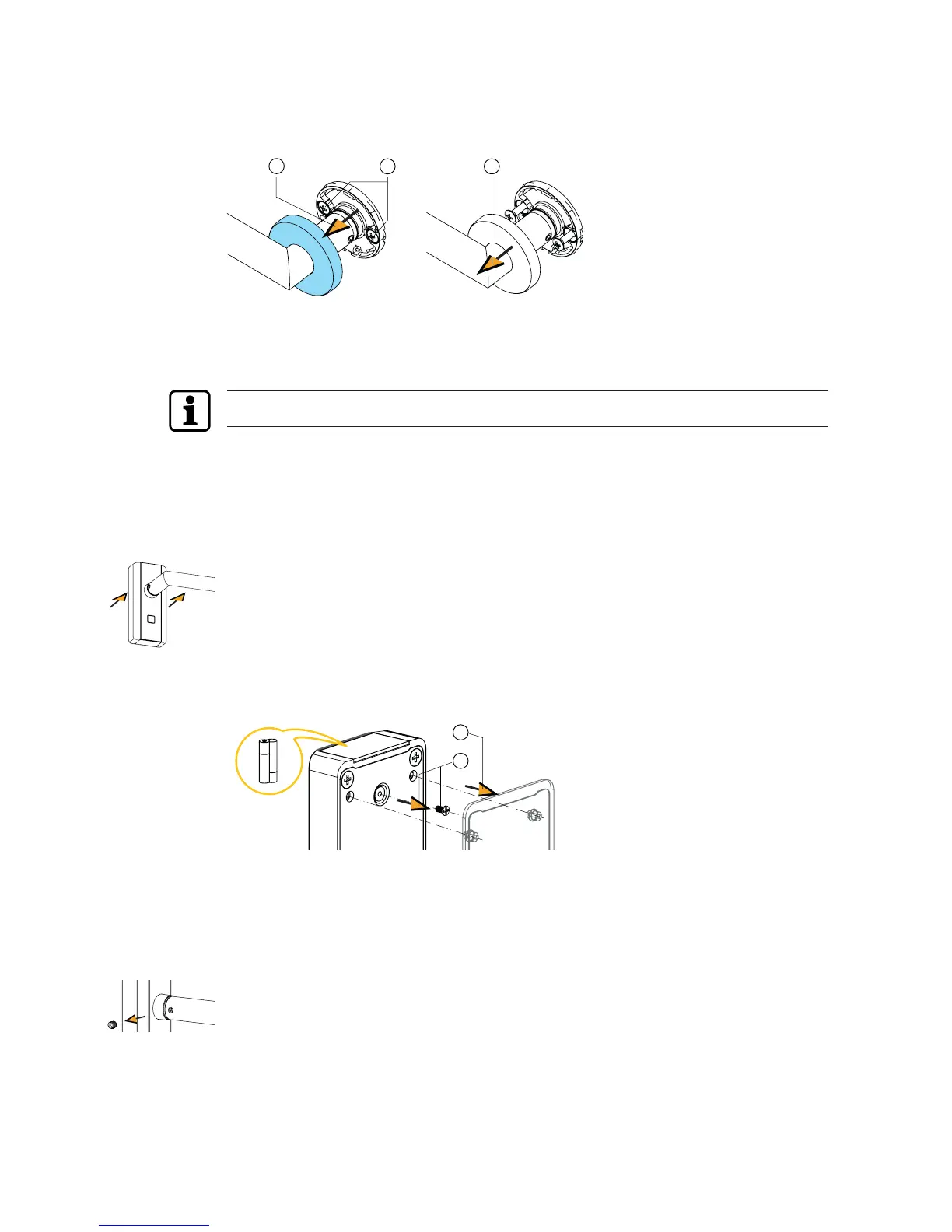

4.12 Dismantling
4.12.1 Dismantling the inside rosette and lever handle
2.
1.
3.
1. Remove the cover from the inside rosette.
2. Loosen the screws.
3. Remove both the lever handle and the rosette.
The lever handle can only be removed with a special tool after attaching it to the rosette.
4.12.2 Removing the inside lever handle from the rosette
• Use spreader forceps to push the circlip apart and simultaneously remove the handle.
4.12.3 Removing the c-lever from the lock
• Pull the c-lever out of the lock hub.
4.12.4 Removing the battery holder locking screw
1.
2.
If present: Remove the battery holder locking screw.
1. Remove the flexible support plate.
2. Unscrew the battery holder locking screw.
4.12.5 Removing the outside lever handle
• Unscrew the threaded pin from the lever handle and remove the lever handle.
