Dormakaba EML 310 - For Use with DRS Rails Only)

dormakaba Header Installation Instructions with EML310/320 and 371/372
For use with DRS Rails and Patching Fittings (4-1/8”, 4-1/2”, 6” Headers)
933903
07-2019EML Header Shim
15

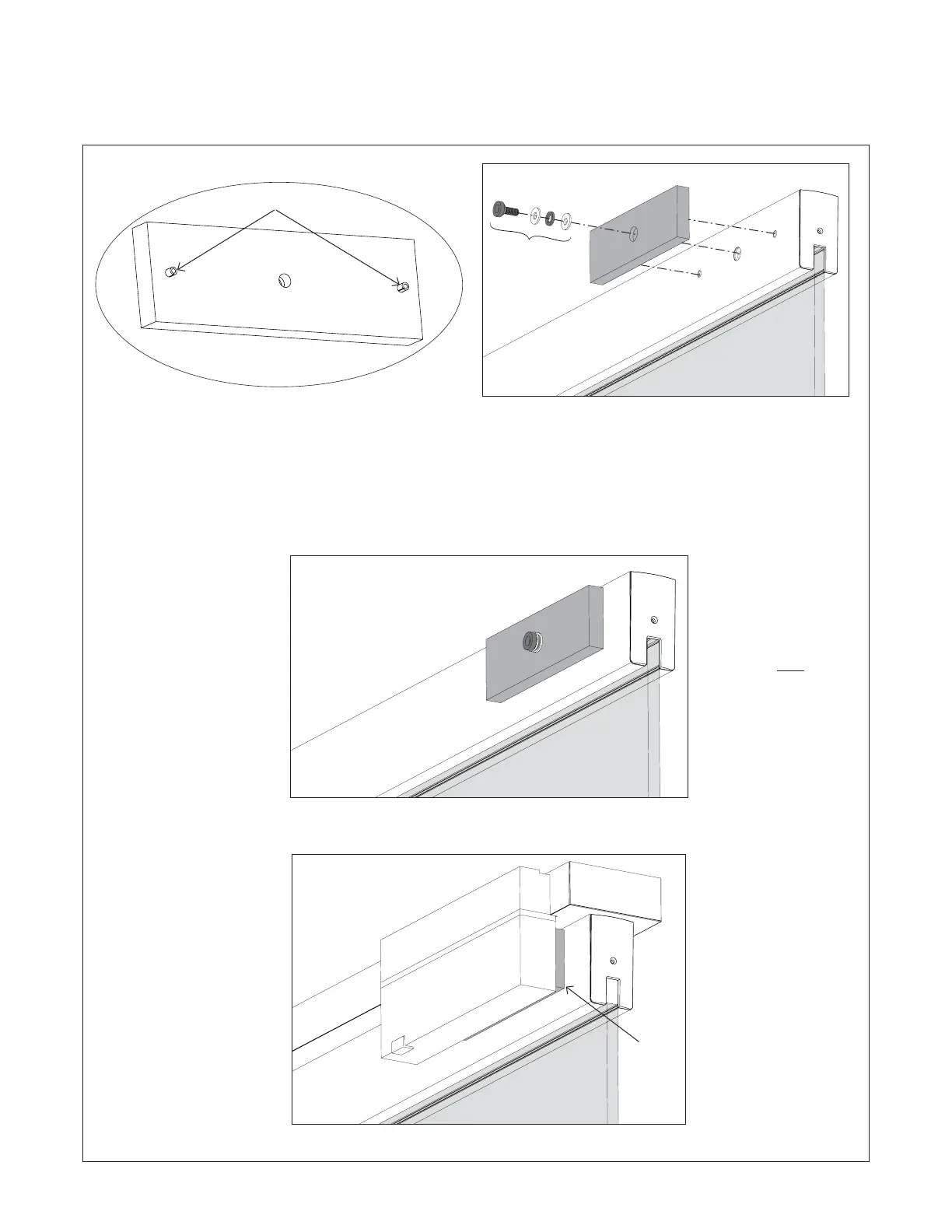

Install armature plate: DRS Rails
4.2 (For use with DRS rails only)
Fig. 
.. Align armature plate via the  pins. .. Secure armature plate to DRS rail with the
following included center-mounting bolt
fasteners:
• Bolt with affixed rubber washer
• Steel washer
• Rubber washer
• Steel washer
Center-
mounting
bolt
Armature
plate
NOTE: Apply thread
locking compound to
exposed thread.
.. Close door and
adjust
armature
plate if
necessary.
NOTE: Armature plate
should remain movable. See
step 4.2.3 on this page.
NOTE: Armature plate
must be allowed to pivot on
the center-mounting bolt to
allow proper alignment with
the magnet surface. If not
properly aligned with the
magnet surface, the lock
may lose holding force or
not lock at all.
NOTE: The head of the
armature mounting bolt
ships with a rubber washer
affixed to it. Ensure this
washer projects slightly
beyond the surface of to
armature plate. This is to
allow the washer to expand
when power is removed and
break the air vacuum
between the plate and the
magnet surface. DO NOT
REMOVE OR TRIM THE
WASHER. This will cause the
lock to continually have
some holding force even
when power is removed.
.. NOTE: TIGHTEN
CENTER-
MOUNTING
BOLT BUT,
ALLOW FOR
ARMATURE
PLATE
MOVEMENT AND
ALIGNMENT.
Pins
Armature
plate
Mag lock
DRS rail
Armature
plate
