Dormakaba ES 250 PRO Easy - Product Description; Overview

7
Product Description
3 Product description
1. Overview

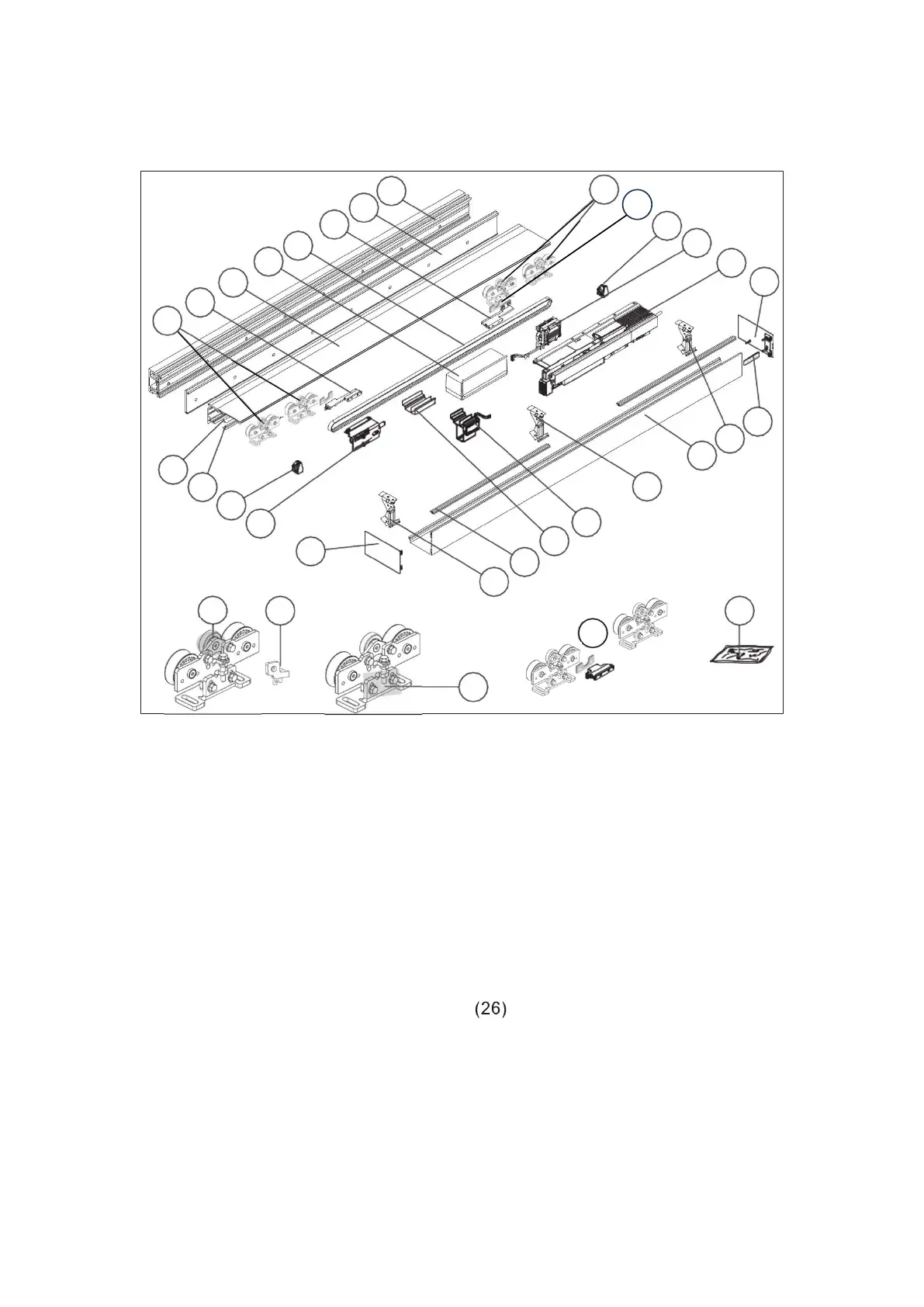

Fig. 1
(1) Carriers
(2) Engaging unit
(3) Operator profile
(4) Battery
(5) Toothed belt
(6) Mounting profile
(7) LM girder
(8) End stop
(9) Locking device
(10) DRIVE UNIT
(11) End plate
(12) Logo clip
(13) Cover holders
(14) Int ernal cover
(15) Door Pilot Interface
(16) Cable trunking
(17) Hinge profile
(18) Deflection device
(19) Rubber strip
(20) Track profile
(21) Counter roller
(22) Anti-static brush
(23) Adjustable brackets
(24) Carriers with engaging unit for
1-leaf units
(25) Bag of screws:
17508901150 for 2-leaf units
17509001150 for 1-leaf units
Belt Clamp Spacer
