Body Controller Software
146
Sl
No.
Operating
States
State Transition Conditions
LED
Color
Flashing
Frequency
1
INIT state
(Reset)
1. Operating system initialized or
2.Waiting for correct supply voltage
3. Temporary state replaced by RUN or
STOP
Yellow
-
2
Run state
Operating voltage reached minimum value
Green
2 Hz
3
Stop state
1. Application program not loaded
2. STOP command sent from interface
Green
Green
flashing
N/A
5 Hz
4
ERROR state
Supply Voltage is too low
RED
5 Hz
5
FATAL Error
state
1. Memory Error (RAM / Flash)
2. Exception error
3. Operating system error
RED
-

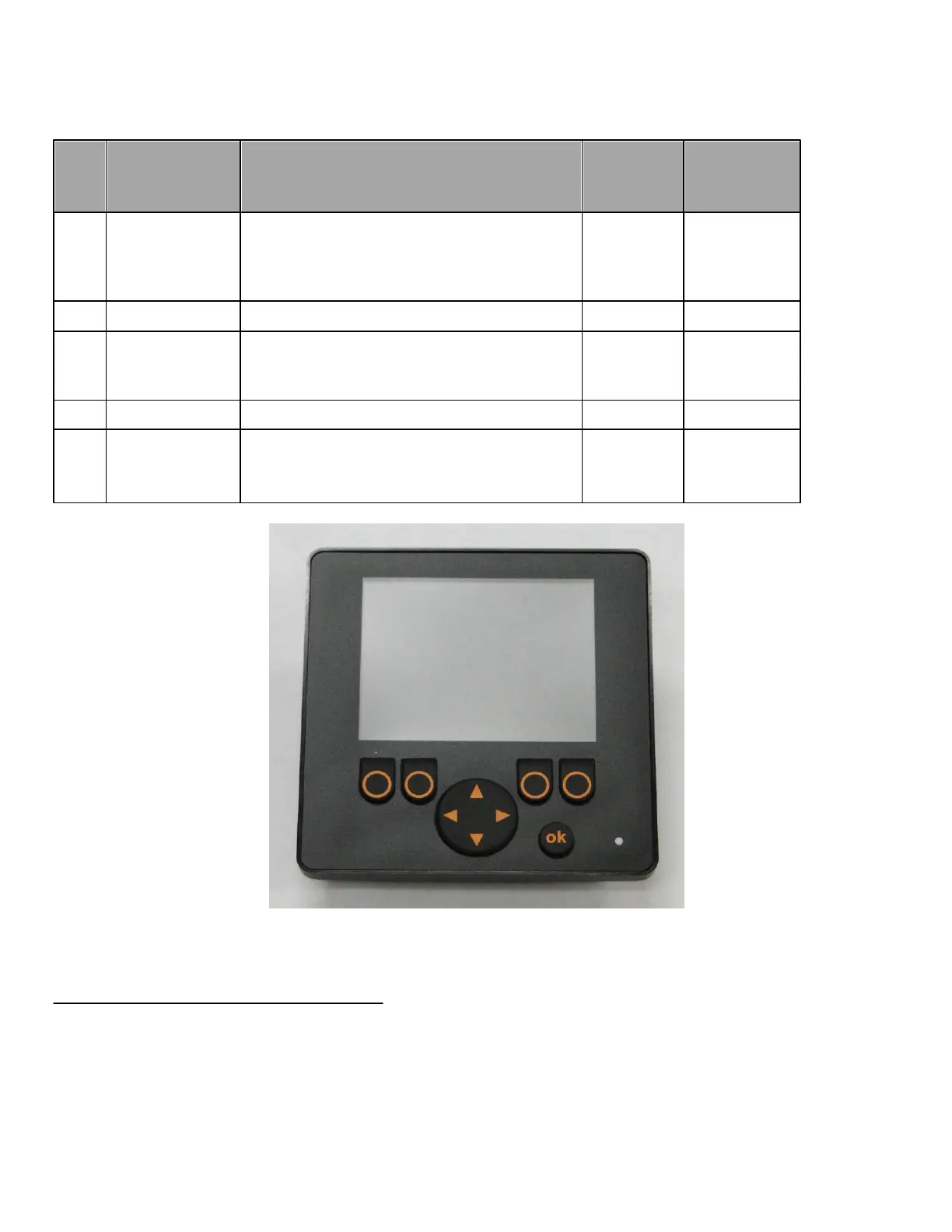

Fig: INSIGHT Display with Input / Output Status indication
5.05.03: Rear Panel Housing connection:
Table below provides Wiring details for the Interface cable of INSIGHT display unit
