Mounting - Weather protection HVC, HVL, ALAS
HVL
Louvre cover
HVC
Weather protection roof cover
ALAS
Weather protection grille
wall mounting
If there is no weather protection in front
of the ventilation opening on site,
appropriate weather protection must be
correctly attached to the outer shell of
the building.
The ALAS grille can be guided through
the wall opening from the inside and
inserted into the opening.
Then pull the ALAS grille up to the outer
wall and fasten it to the wall with
mounting brackets.
JK-180 JK-190
Mounting - Ventilation flap JK 180, JK 190
JK-180 - Ventilation flap with spring
return motor with mounting frame for
integrated installation
JK-190 - Ventilation flap with spring
return motor for surface mounting
Lay the motor connection
cable on the shaft side.
Stick the sealing tape onto
the edge of the mounting plate.
6x
Through bolt anchor
M8x65
min. 20 cm
min. 30 mm
Mounting - Ventilation flap JK 180, JK 190

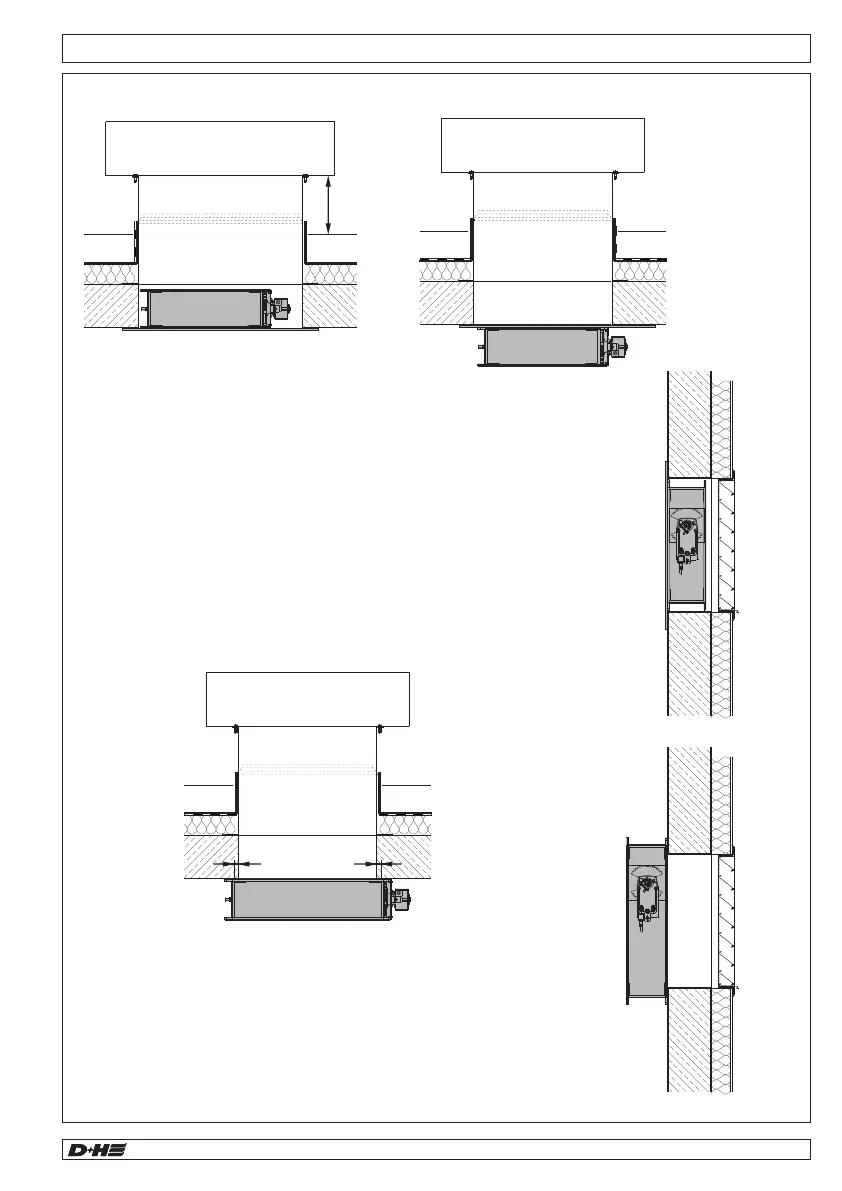

Standard mounting JK-190:
The ventilation flap is mounted from the inside in front of the
ventilation opening.
The mounting direction is not relevant.
Keep a safety distance of at least 30 mm between the flange and the
opening on both sides.
Ensure the necessary protective space in the shaft head!
JK 180
JK 180
HVC / HVL HVC / HVL
HVC / HVL
JK 190
99.829.07 1.2/06/2399.829.07 1.2/06/23
AIO Basic AIO Basic
English
English
Standard mounting JK-180:
The ventilation flap is inserted into the ceiling or wall from the inside.
If the existing opening is too small, the ventilation flap with motor
can also be installed facing into the shaft.
Ensure the necessary protective space in the shaft head!
Optional:
Installation of the ventilation flap from above.
