D+H BlueKit AIO Basic User Manual

36/40 37/40
Troubleshooting - LSR malfunction
Starting point: Troubleshooting fault indicators has been completed.
Mounting material (NSHEV)
Description
Quantity
Through bolt anchorM8x65 mm
DBL-(W-FAZ/S-K)-(A2K)-11-M8x65
8
Sealing tape for flap mounting 8 m
1
Mounting material (System)
Description
Quantity
Self-tapping screw M4, 2x16 mm, cross recess, galvanised steel, DIN 7504N
4
Nail plug 6x40 mm
20
Mounting bracket for CPL-B
2
Self-tapping screw, pan head DIN 7981 5.5x16 mm
4
Mounting dowel for cable ties 4.5-8 mm
30
Cable tie 4,5x200 mm
30
99.829.07 1.2/06/2399.829.07 1.2/06/23
AIO Basic AIO Basic
English
English

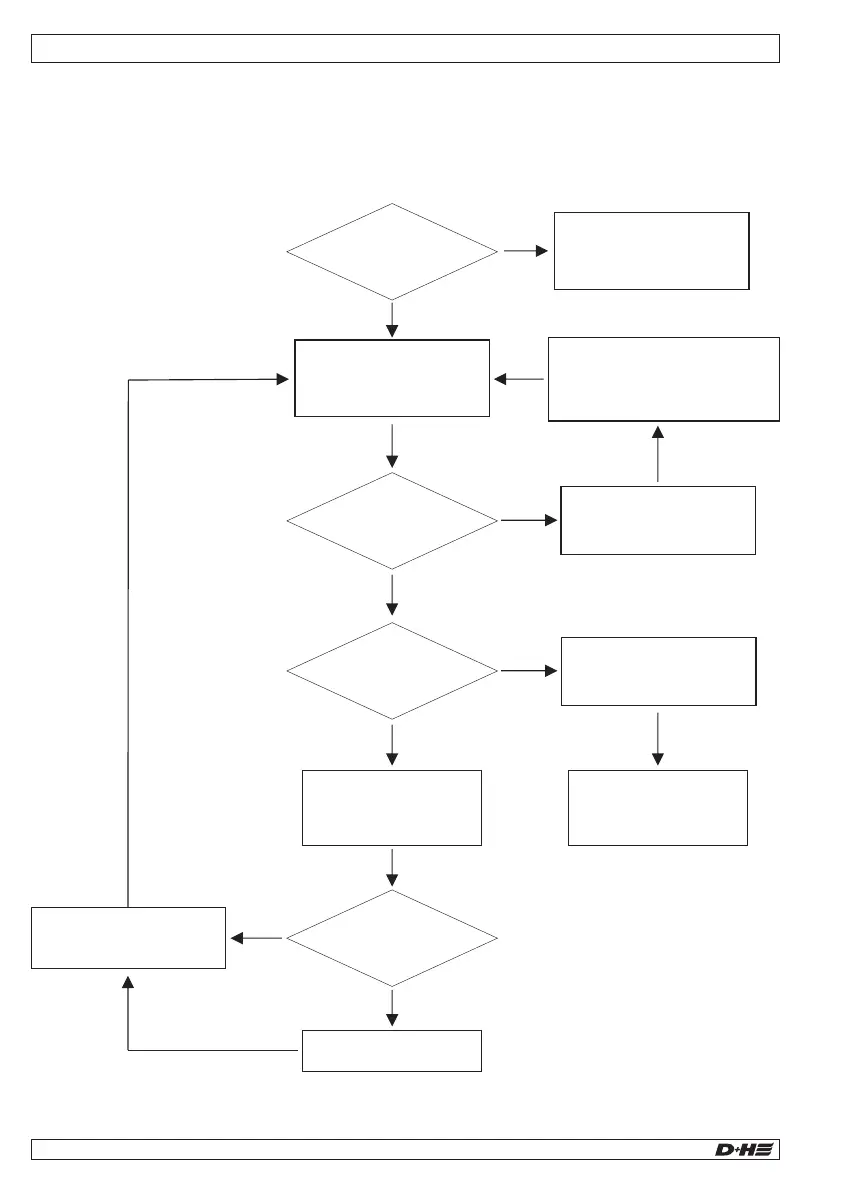

Troubleshooting LST-VOC
malfunction
(see previous page)
Does ”P” LED flash 2x?
RJ line, check power
supply from central unit.
Set repeater mode
(press Set button for 20 seconds,
LED flashes 2x)
yes
Does ”P” LED flash 1x?
no
yes
no
no
LSR available?
Briefly disconnect
LSR RJ plug connection
LSR receiver mode
Replace LSR.
LSR repeater mode
LST-CO2 working.
yes
yes
Cable OK?
no
Establish connection.

D+H BlueKit AIO Basic Specifications

General

Brand	D+H
Model	BlueKit AIO Basic
Category	Fan
Language	English
