28/40 29/40
RT 45/O-L-RJ
RT 45/O-RJ
Function test - Lift Status Transmitter LST-CO2
LST-CO2
Prerequisite: system in normal operating mode
- Press emergency call button.
- Ventilation element must open.
After pressing the emergency call button, the ventilation element remains
open for 3 hours.
However, this time is reset by activating the "maintenance" function on the
LST-CO2.
- Press the "maintenance" button for 5 seconds to activate the "maintenance"
function.
- The "operation" LED indicates maintenance mode (3x or 4x flashing).
- The 3-hour timer is reset.
- The ventilation element remains open.
- Triggering events or faults are still indicated.
- Press the "maintenance" button for 5 seconds to switch the "maintenance"
function off again.
- If there are no trigger events, the ventilation element closes.
If the "maintenance" function is not deactivated manually, it switches off
automatically after approx. 2 hours so that the ventilation element does not
remain permanently open.
Button
„maintenance“
Operation
Release
Fault
Radio
LED indicators
Completion of maintenance
- Check that the system is in normal operating mode.
(See "Maintenance Mode / Alarm Reset")
- Remove information signs to each shaft door of the lift.
- Notify the person responsible for the building about completion of the maintenance work.
Function test - Smoke vent button RT 45-RJ
1. Release alarm:
- Press the "Alarm" button on the smoke vent button.
- The alarm LED on the smoke vent button lights up red.
- Central unit reports fire.
(red LED "Alarm smoke vent button" at RJ45 connection "RT" lights up).
- The ventilation element opens.
3. Repeat the smoke test for each smoke vent button in the system.
4. Reset alarm:
- Press reset button „▼“ on the smoke vent button (RT-45L-RJ / RT-45-RJ).
or
- Press the reset button on the central unit for approximately 3 seconds to
open maintenance level 1. Then press the Reset button for 1 second to
return to normal operating mode.
SD-L-F1

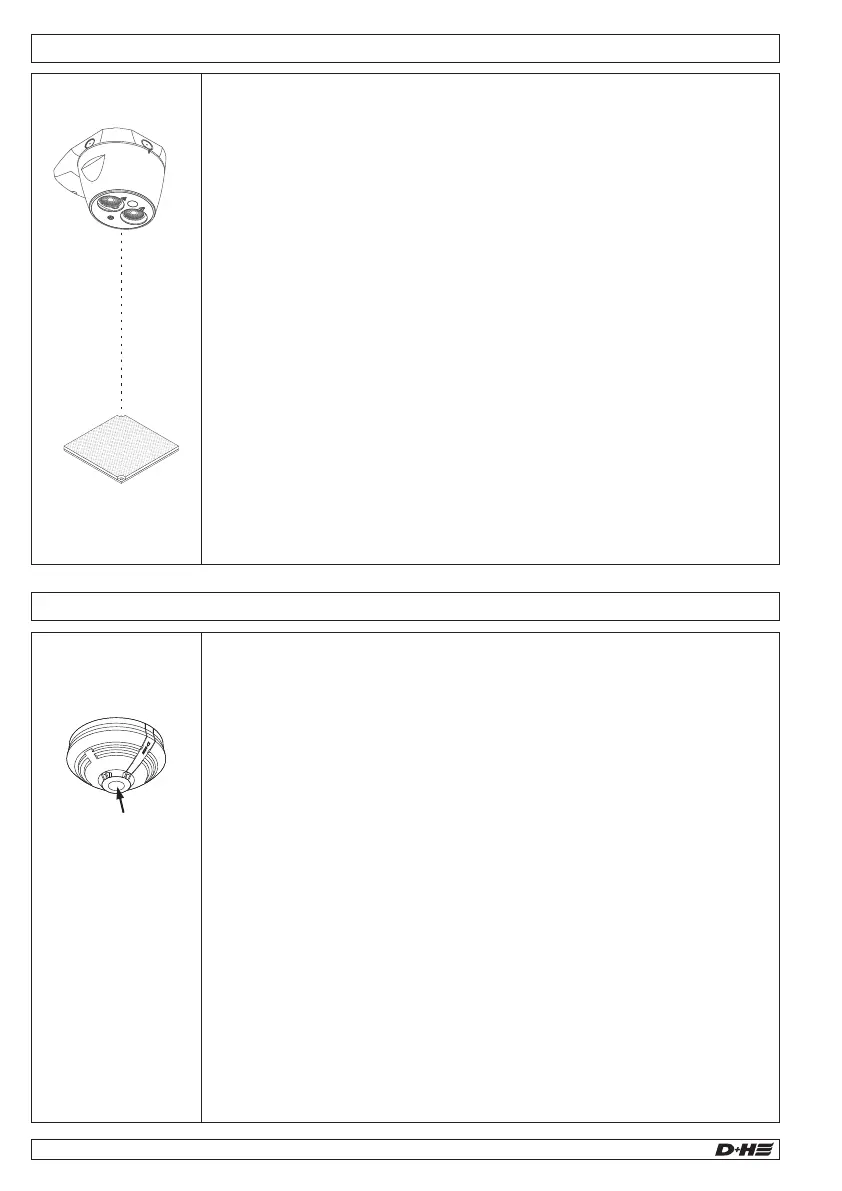

Function test - Smoke detector SD-L-F1
1. Cover the reflector slowly (covering must take more than 5 seconds).
2. The detector triggers a fire alarm after 10 seconds.
Notes:
Use the SD-L-F1 commissioning set alarm filter to test the 25 %, 35 % and 55 %
alarm thresholds.
The detector automatically compensates for dust deposits by adapting the ACG
level. Once the ACG level limit value has been reached, the detector outputs a
fault and requires cleaning.
Regularly clean the lens window and reflector with a soft, lint-free cloth.
If the detector outputs a fault after having been cleaned, the ACG level signal
strength may have exceeded the upper threshold value.
In this case, re-align the detector.
Function test - Smoke detector PD-RJ-AIO
1. Spray point smoke detector for 1 second near the point smoke detector
using a test smoke spray. Repeat this process after 10 seconds until the
point smoke detector reacts (at max. 10 times).
- LED at point smoke detector lights up red.
- Central unit and smoke vent button report fire
(red LED "Alarm smoke detector" at the RJ45 connection "SD" and the
alarm LED on the smoke vent button light up).
- The ventilation element opens.
2. Blow out the signal head to allow the test smoke to escape.
3. Repeat the smoke test for each point smoke detector in the system.
4. Reset alarm:
- Press reset button „▼“ on the smoke vent button (RT-45L-RJ / RT-45-RJ).
or
- Press the reset button on the central unit for approximately 3 seconds to
open maintenance level 1. Then press the Reset button for 1 second to
return to normal operating mode.
Note:
The PD-RJ-AIO (SD-O 371) has an extended operating time of up to 8 years
due to electronic compensation of long-term effects of dirt or ageing.
Type:
PD-RJ-AIO
(SD-O 371)
Alarm indicator
99.829.07 1.2/06/2399.829.07 1.2/06/23
AIO Basic AIO Basic
