12/40 13/40
Mounting - Control unit CPL-B
Place the central unit at eye level on the wall in the shaft head (highest cabin position).
Fastening materials:
2 x mounting bracket
4 x self-tapping screw for mounting bracket
4 x nail dowel 6 x 40 mm
Align temperature sensor
vertically, ensure distance
from heat sources
(e.g. braking resistor).
Terminals at the bottom,
status LEDs must be
clearly visible
Fasten the mounting brackets
for rear ventilation with
self-tapping screws.
Mounting - Point detector in the lift shaft PD-RJ-AIO
Fastening materials:
2x nail dowels 6x40 mm / detector
Mounting dowel with cable ties - for RJ45 cable
- Arrange point detectors vertically in a line if
possible.
- The corresponding RJ cable lengths with
coupling are supplied depending on the shaft
height.
- Mount the point detector on the lift shaft wall in
the shaft pit using the mounting brackets.
Leave a free space of 13.5 cm.
- Fix the cables to the shaft wall with mounting
dowels and cable ties.
- Connect the top point detector to the „SD“ socket
on the central unit.
max.
2 m
max. 45 cm
below the
shaft ceiling
max. 12 m
max. 12 m

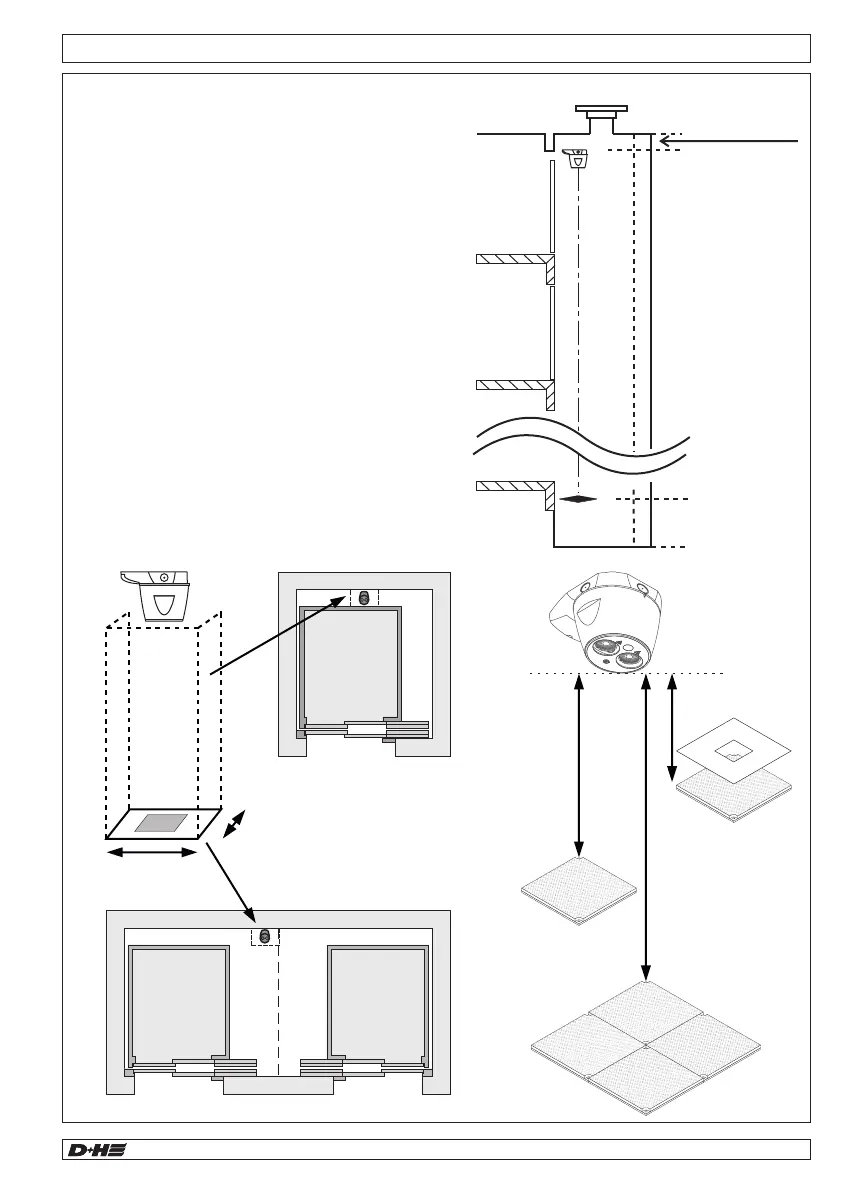

Mounting - Infrared detector SD-L-F1
max.
2 m
max. 45 cm
below the
shaft ceiling
The smoke detection system with optical infrared
beam SD-L-F1 consists of 2 components:
- Infrared detector: installed in the shaft head and
connected to the central unit of the ventilation
system, sends infrared beam to the reflector in the
shaft pit.
The D-L-F1 may be mounted a maximum of 45
cm below the shaft ceiling.
- Shaft pit reflector: reflects infrared beam back to
the detector via a prism.
- The reflector size depends on the distance to the
infrared detector.
- The reflector may be installed a maximum of 2 m
above the shaft floor.
- Arrange the detector and reflector vertically in a line.
- Connect the top point detector to the „SD“ socket
on the central unit.
- Clean the reflector after mounting.
- Align the infrared beam with the reflector.
- There must be a minimum area between the shaft
wall and the lift car over the entire height of the
shaft for the infrared beam to pass through without
interference.
Shaft height ≤ 50 m: 15 cm
> 50 m: 25 cmShaft height
Infrared detector
SD-L-F1-50
SD-L-F1-100
SD-L-F1-50
Reflector 13,5 cm
with reducing foil
SD-L-F1-50
Reflector 13,5 cm
SD-L-F1-100
Reflector 21 cm
8-18 m
18-50 m
50-100 m
SD-L-F1-50
max. 50 m
SD-L-F1-100
max. 100 m
25 cm
99.829.07 1.2/06/2399.829.07 1.2/06/23
