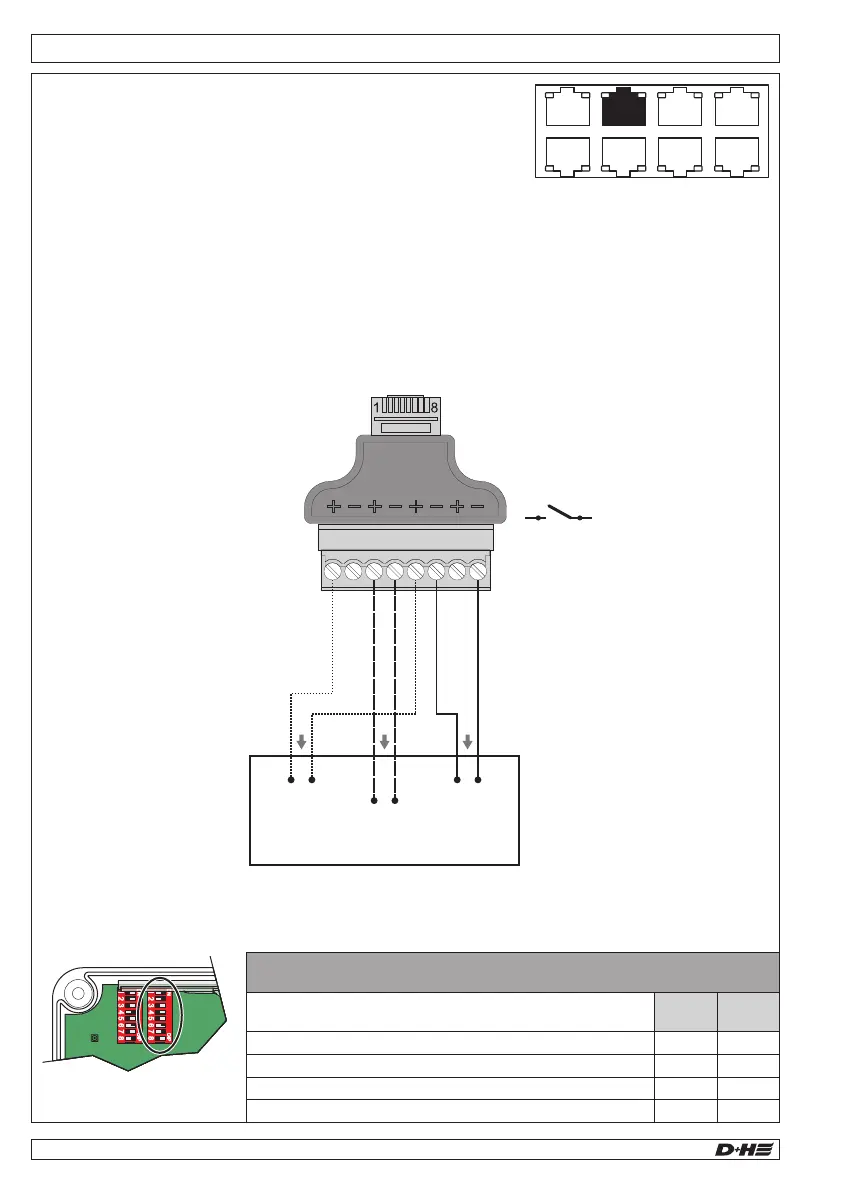

Connection - General status signals COM 1
Output of various status signals via potential-free contacts in
the CPL-B.
Output - fault signal:
Adjustable via DIP switches S2.1 and S2.2.Potential-free contact in
the central unit closes in the case of a fault. The contact is open in
the case of a power failure.
1 2 3 4 5 6 7 8
Fault
HE alarm
COM 2
ADD
COM 1
RT
AL
SD
24 V
M1
Output - OPEN/CLOSED signal of the ventilation element:
Potential-free contact in the central unit closes as soon as the ventilation element is open.If the
ventilation element is closed, the contact is open.
Output - alarm signal on main evacuation level:
If smoke vent buttons and optionally also a smoke detector are installed on the main evacuation level,
an alarm signal of this line can be issued separatelyPotential-free contact in the central unit closes in
the case of an alarm. In case of a power failure, the contact is open.
Attention!
Contact load
max. 60 V DC / 1 A
HE alarm
Fault
OPEN/CLOSED OPEN/CLOSED
OPEN/
CLOSED
Fault
Alarm
main evacuation level
S2
Connection - Lift shaft control COM 2
Connection to the lift controller for incoming and outgoing
signals.
Output - alarm transmitter 24 V DC:
For connecting optical or acoustic alarm transmitters (flashing light,
siren, etc.).
1 2 3 4 5 6 7 8
NO contact
Alarm
Output - Fault / Alarm:
Output of a fault or an alarm via a potential-free changeover contact. The function can be set via DIP
switch S2.
Input - Lift moves:
For controlling the ventilation element depending on the lift usage. Signal of change between travel
and stop by the lift control via potential-free contact.
Input - lift fault / maintenance:
The ventilation element is opened by the lift controller in case of a maintenance or fault signal. Signal
by the lift controller via potential-free contacts.
NC contact
COM
– (GND)
COM 2
ADD
COM 1
RT
AL
SD
24 V
M1
Lift status
Alarm transmitter
24 V DC / 0,26 A
Fault / Alarm
(DIP switch S2)
Fault/Maintenance
Lift moves
– (GND)
Attention!
Contact load
max. 60 V DC / 1 A
1 3 5
Fault
Maintenance
Lift moves
99.829.07 1.2/06/2399.829.07 1.2/06/23
AIO Basic AIO Basic
English
English
DIP switch S2
Normally closed contact signalling relay -
fault message at RJ45 socket COM 1
S2.1
S2.2
Free / OFF
OFF
OFF
Fault in shaft detector and fault group M1
ON
OFF
LST fault
OFF
ON
General fault
ON
ON
DIP switch S2
Signalling relay normally open contact/normally
closed contact - fault/alarm at RJ45 socket COM 2
S2.3
S2.4
S2.5
General malfunction (normally closed contact)
OFF
OFF
OFF
Shaft fault: (NC contact) line or group
ON
OFF
OFF
RT fault: (normally closed contact)
OFF
ON
OFF
General fault (normally open contact)
OFF
OFF
ON
Line alarm: (Normally open contact) shaft
ON
OFF
ON
Alarm: (Normally open contact) stairwell
OFF
ON
ON
