10.2.2 Disassemble brew unit

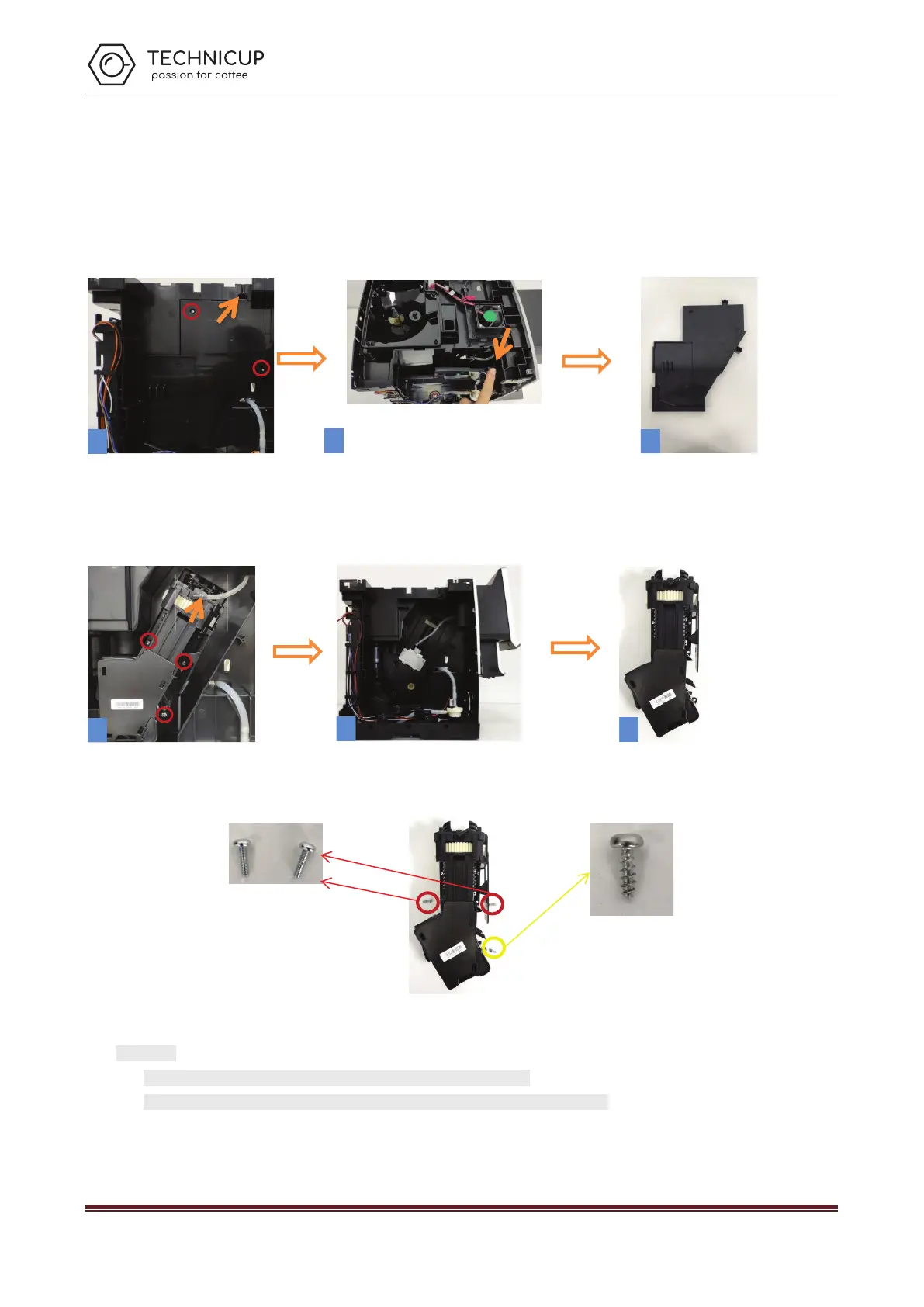

Step1：Unscrew the fixing screw at the position marked by the red circle (as shown in Figure 1), press the button at the arrow position with your finger
and remove the baffle.
Step2：Pull out the plug and hose at the position indicated by the arrow , then unscrew the fixing screw at the position indicated by the red circle,
grasp the brewer and take it out, remove the brewer.
★ Attention：
1、 Please disassemble the machine after it has cooled down to prevent burns！
2、 In the process of disassembly, you can use both hands to take care of it, beware of bruises！
