Dr.coffee F08 - Disassemble Thermo-Block

Rev 0.0
Dr.coffee Service Manual 46
10.2.10 Disassemble thermo-block

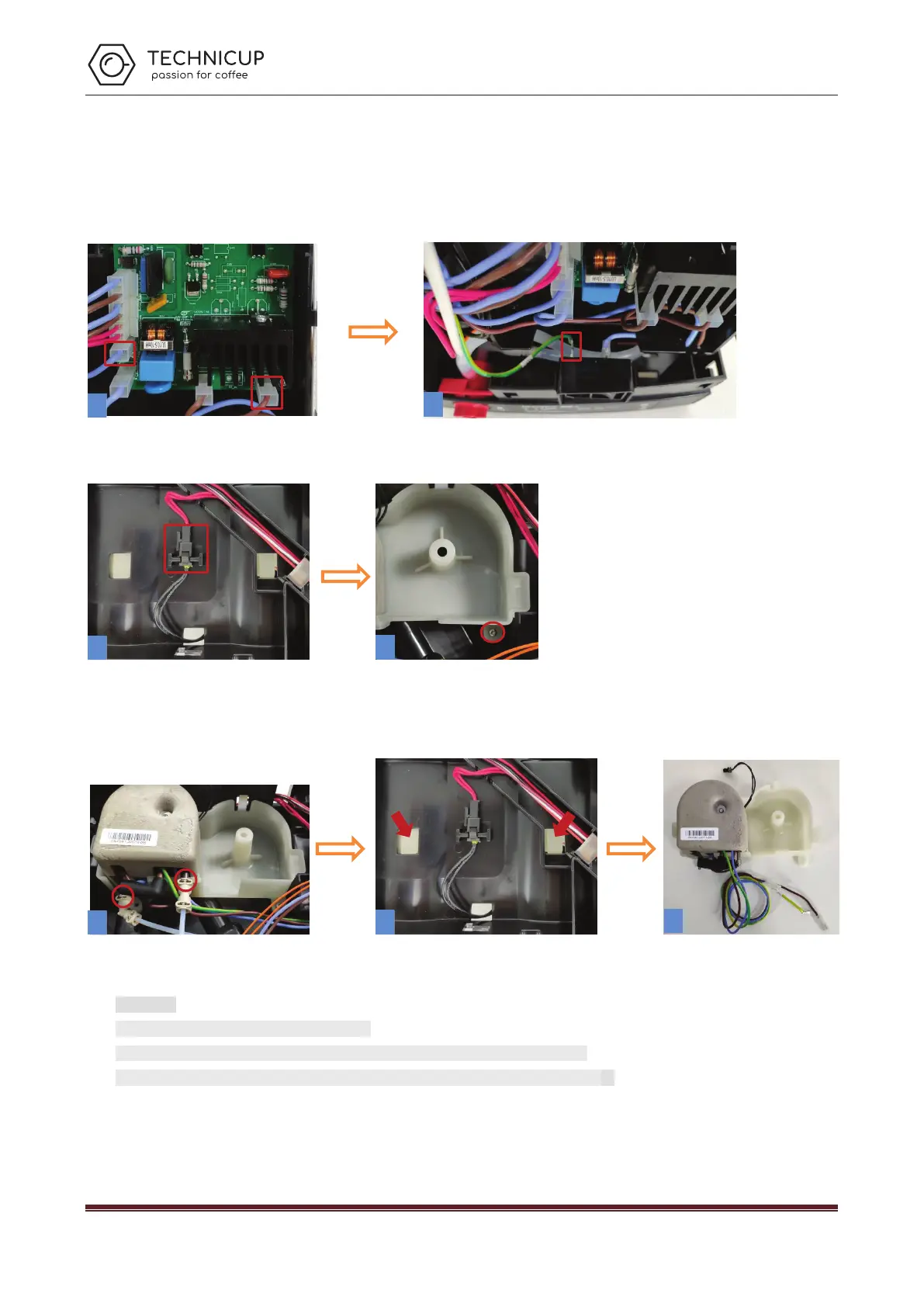

Step1：First pull out (as shown in Figure 1, 2) the red box marked the position of the wiring plug
Step2：Then pull out the position of the wiring plug.
Step3：Unplug the four water pipe joints indicated by the arrow, and finally unscrew (as shown in Figure 2) the fixing screws at the position indicated by the
red circle, remove the heating plate set outward, and disassemble it.
★ Attention：
1、Unplug the coffee machine before doing this！
2、There may be residual water in the pipe. Please prepare the water container in advance！
3、Please disassemble the coffee machine after it has cooled down completely, beware of burns！
3
4
1
2
7
5
6
