Dr.coffee F08 - Disassemble Solenoid Valve

Rev 0.0
Dr.coffee Service Manual 42
10.2.5 Disassemble solenoid valve

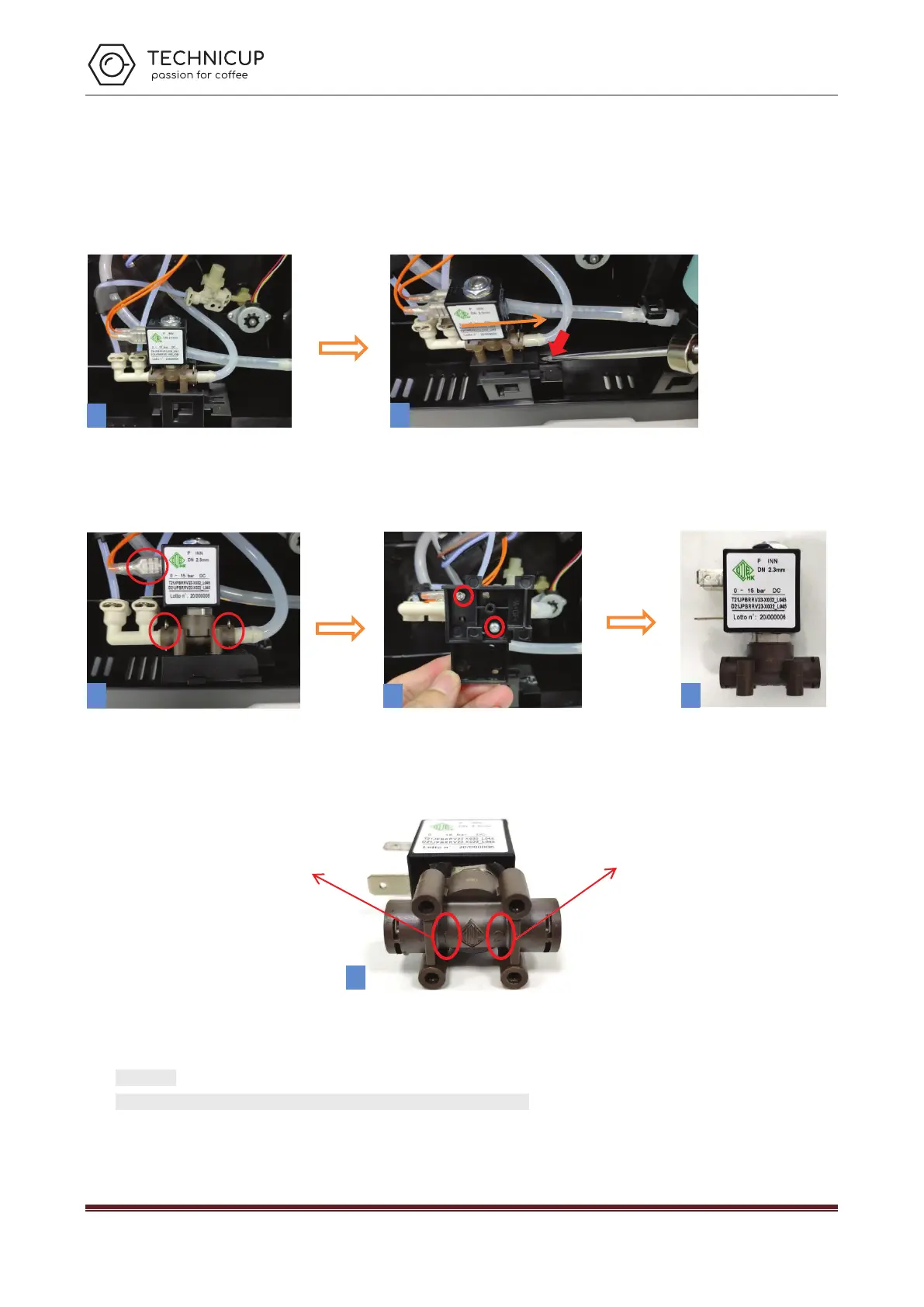

Step1：Use a small crewdriver to press the buckle with the short arrow to indicate the position, and then push the split valve back to the fixed slot.
Step2：Unplug the clips and plugs by the arrow (as shown in figure 3), remove two fixing screws (as shown in figure 4), and finally take out the solenoid
valve..
Remark: Solenoid valve connects "water inlet" and "water outlet" in different directions (as shown in Figure 6)
★ Attention：
1、Be careful during the disassembly process to prevent scratching your fingers！
5
3
4
1
2
“1”means connect “water inlet”
6
“2”means connect “water outlet”
