Dr.HD D15 - F15 - Rear Panel

81
English
4. Controls/Functions

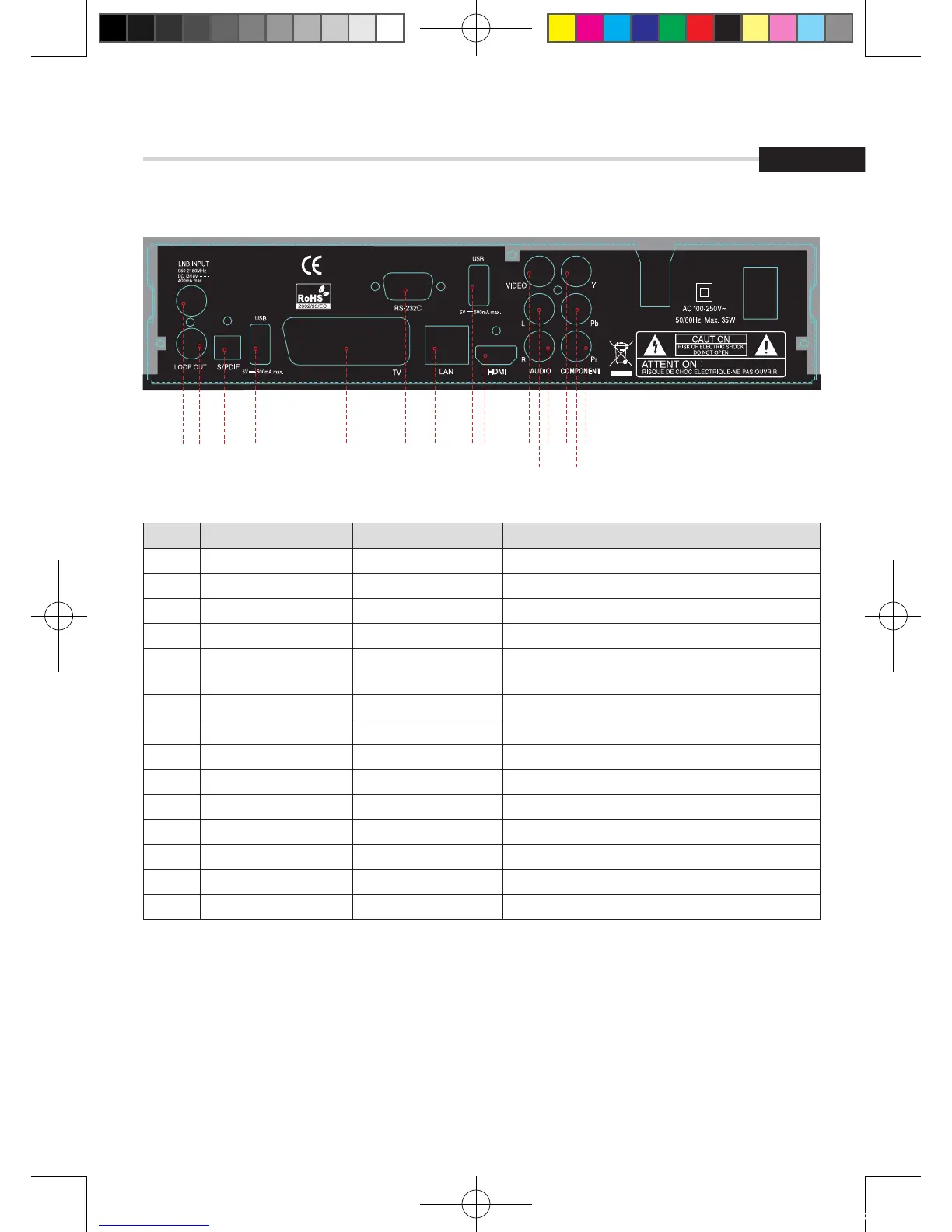

4.4 F15 - Rear Panel
NO
Name Connector Function
❶
LNB INPUT IEC 169-24 FEMALE IF input from LNB to digital tuner
❷
LNB OUTPUT IEC 169-24 FEMALE IF loop-through output from digital tuner
❸
S/PDIF Fiber Optic Digital audio output (Optical)
❹
USB USB A-type USB 2.0
❺
TV SCART SCART Video output(CVBS, RGB)
Audio output(R, L)
❻
RS-232C DB-9 Low speed serial port
❼
LAN RJ-45 10/100Mbps Ethernet
❽
HDMI HDMI Digital Video/Audio Output
❾
VIDEO RCA cinch Composite video output
❿
AUDIO L RCA cinch Left audio output
⓫
AUDIO R RCA cinch Right audio output
⓬
Y RCA cinch Component video output(Y)
⓭
Pb RCA cinch Component video output(Pb)
⓮
Pr RCA cinch Component video output(Pr)
❶ ❷ ❾
❿
⓭
⓫ ⓬ ⓮
❹
❽
❸ ❹ ❺ ❻ ❼
