4. Controls/Functions

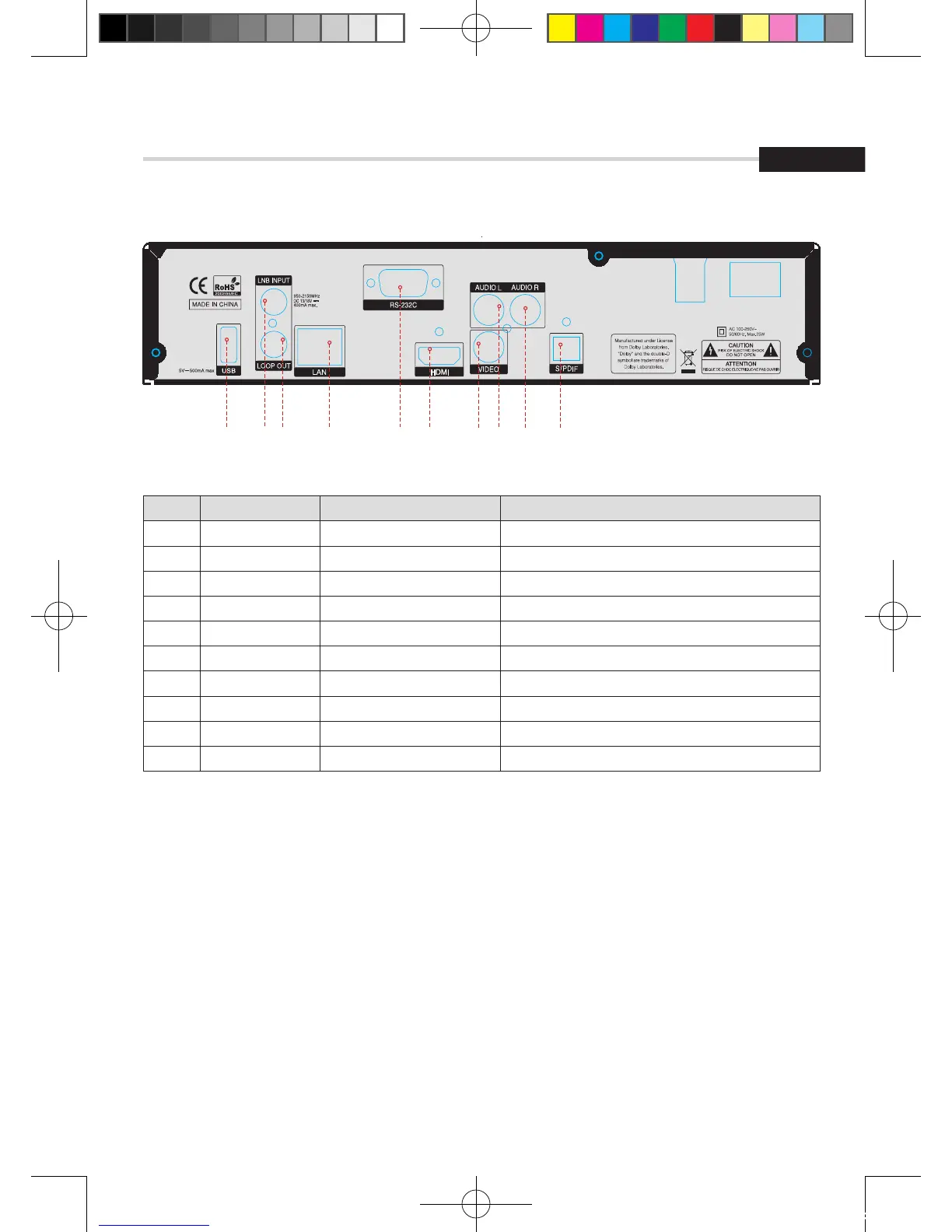

4.2 D15 - Rear Panel
NO Name Connector Function
❶
LNB INPUT IEC 169-24 FEMALE IF input from LNB to digital tuner
❷
LOOP OUT IEC 169-24 FEMALE IF loop-through output from digital tuner
❸
VIDEO RCA cinch Composite video output
❹
AUDIO L RCA cinch Left audio output
❺
AUDIO R RCA cinch Right audio output
❻
S/PDIF Fiber Optical Digital audio output
❼
LAN RJ-45 10/100Mbps Ethernet
❽
HDMI HDMI Digital Video/Audio Output
❾
RS-232 DB-9 Low speed serial port
❿
USB USB A-Type USB 2.0
❶ ❷❿ ❽❾ ❸ ❹ ❺ ❻❼
