Ceiling and wall attachment
Dr. Mach
Lamps and Engineering

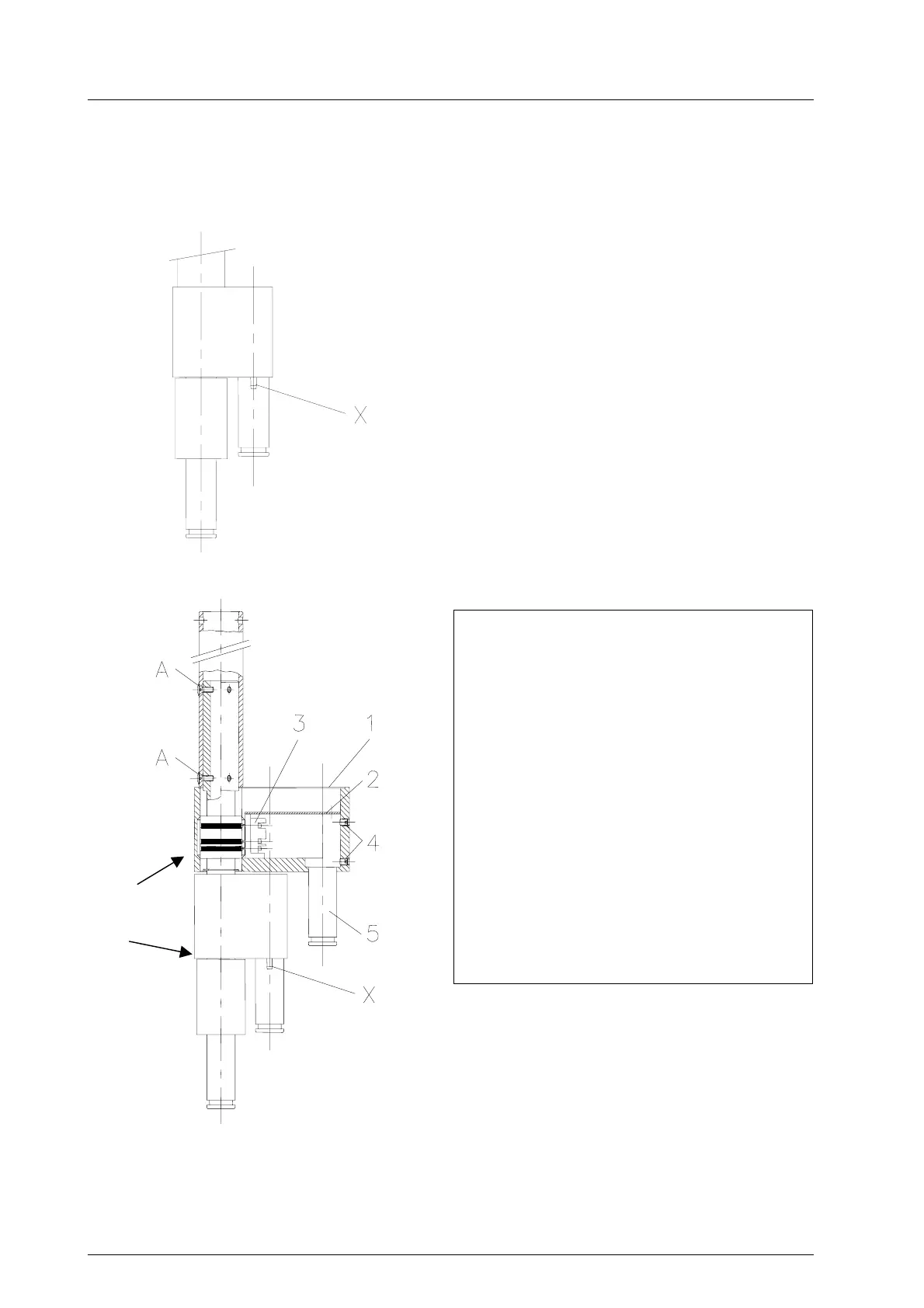

2.2.3 Light weighted central axis (connection which can turn through 360°)
The pre-assembly instructions given on chapter 3.2 also apply here.
Double model (can turn through 360°)
The suspension tubes which can turn through 360°
are supplied ready mounted and wired. The length
is usually already adjusted according to the room
height.
Before mounting, check that the six threaded pins A
of the pre-assembled connections are properly
fixed.
X plugger pin for articulated arm
(see remark at the mounting instructions for ar-
ticulated arms on page 18).
Triple model (can turn through 360°)
See above.
Instructions for replacing
the sliding contact set
(only when required)
• Loosen cover 1 and swivel away to the
side.
• Loosen the four threaded pins M8 4, so
that the coupling journal 5 is loose.
• Take off safety plate 2.
• Loosen sliding contact set 3.
• Remove together coupling journal 5 and
sliding contact set.
• Replace sliding contact set.
• Remount in reverse order.
Note:
This procedure is basically the same for the
triple and double bracket, apart from more
constricted space in the double bracket.
Bremsen
M8x12
DIN 915
59500001 Edition 06 11.03.2003 / Bak Page 10/48
