Ceiling and wall attachment
Dr. Mach
Lamps and Engineering

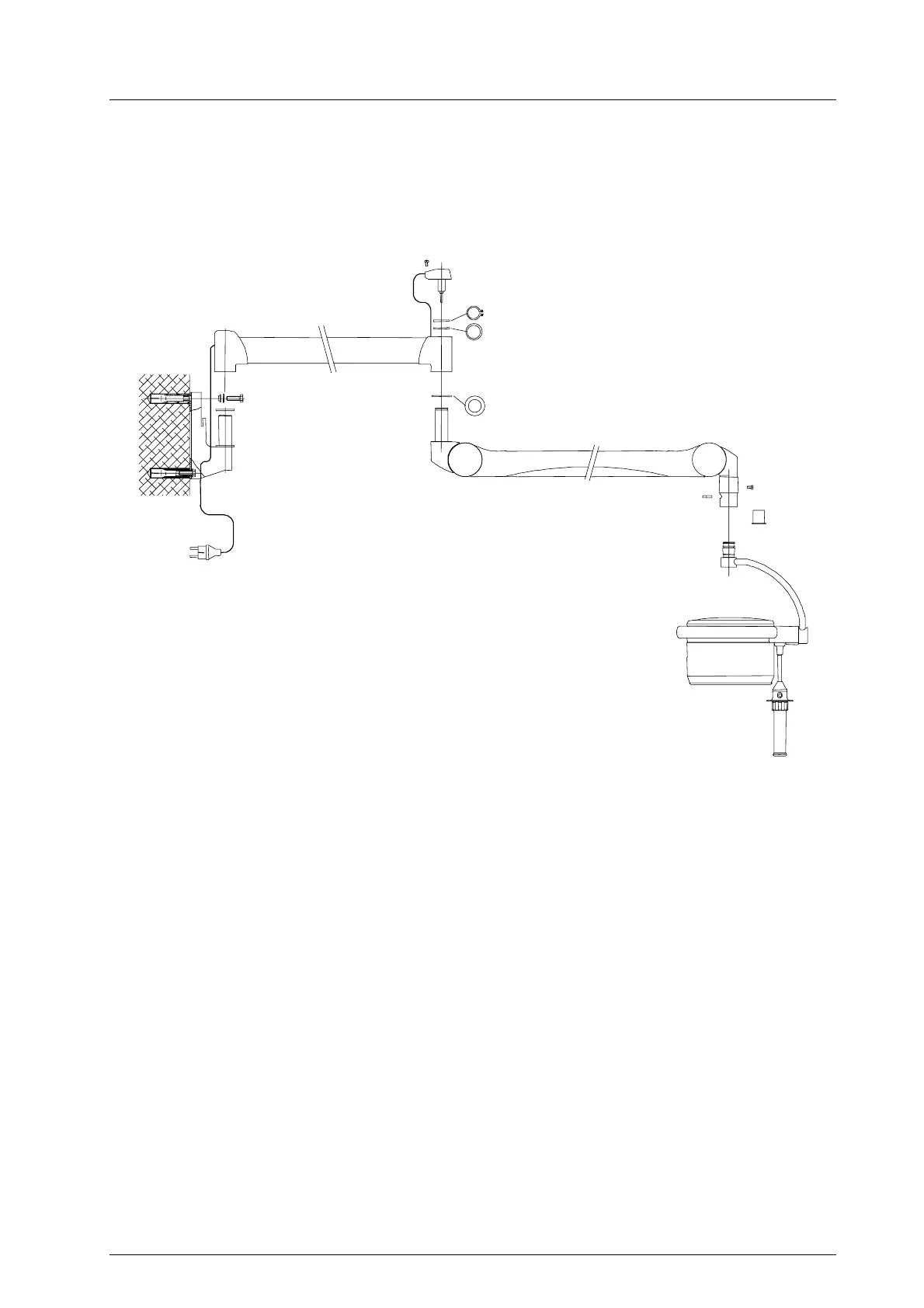

3. Mounting layout
Wall attachment
Circlip
Bracket
Levelling washer (Remark!)
Levelling washer
Wall bearing
Spring arm
OT -lamp
Remark:
One levelling washer is always necessary.
If the distance between wall bracket and spring arm is too big, use the second levelling washer.
The circlip (Seegerring) must be easy to mount and has to snap in. It should turn easily in the groove.
59500001 Edition 06 11.03.2003 / Bak Page 15/48
