Ceiling and wall attachment
Dr. Mach
Lamps and Engineering
4.3 Installing the extension arm stop
(surcharge)
Note:
The stop is supplied with a plastic cover with
cut-out.
The upper plastic cover of the wall bearing is no
longer required and may be discarded

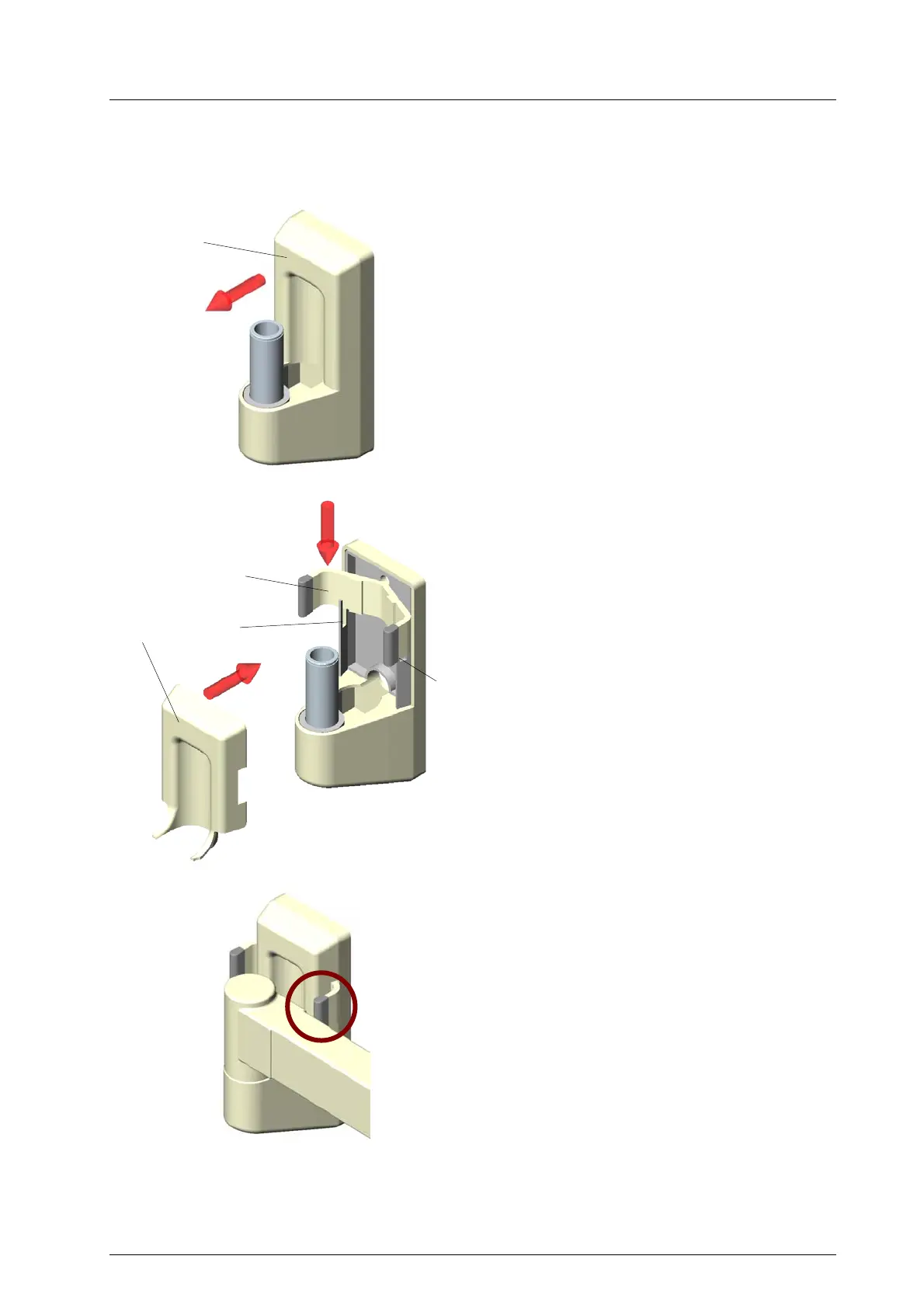

• Remove and discard the upper plastic cover 1
of the wall bearing.
• Insert the extension arm stop 2 into the two
grooves 3 of the wall bearing as shown in the
figure.
• Check the extension arm stop 2 for firm seat-
ing.
• Install and engage the supplied plastic cover
with cut-out 4.
• Check the plastic cover with cut-out 4 for firm
seating.
• The mounted extension arm stop protects the
lamp from damages caused by accidental tou-
ching of the wall.
1
3
4
2
3
59500001 Edition 06 11.03.2003 / Bak Page 19/48
