Ceiling and wall attachment
Dr. Mach
Lamps and Engineering
4.2 Mounting the wall bearing
For mounting the wall bearing proceed as follows:

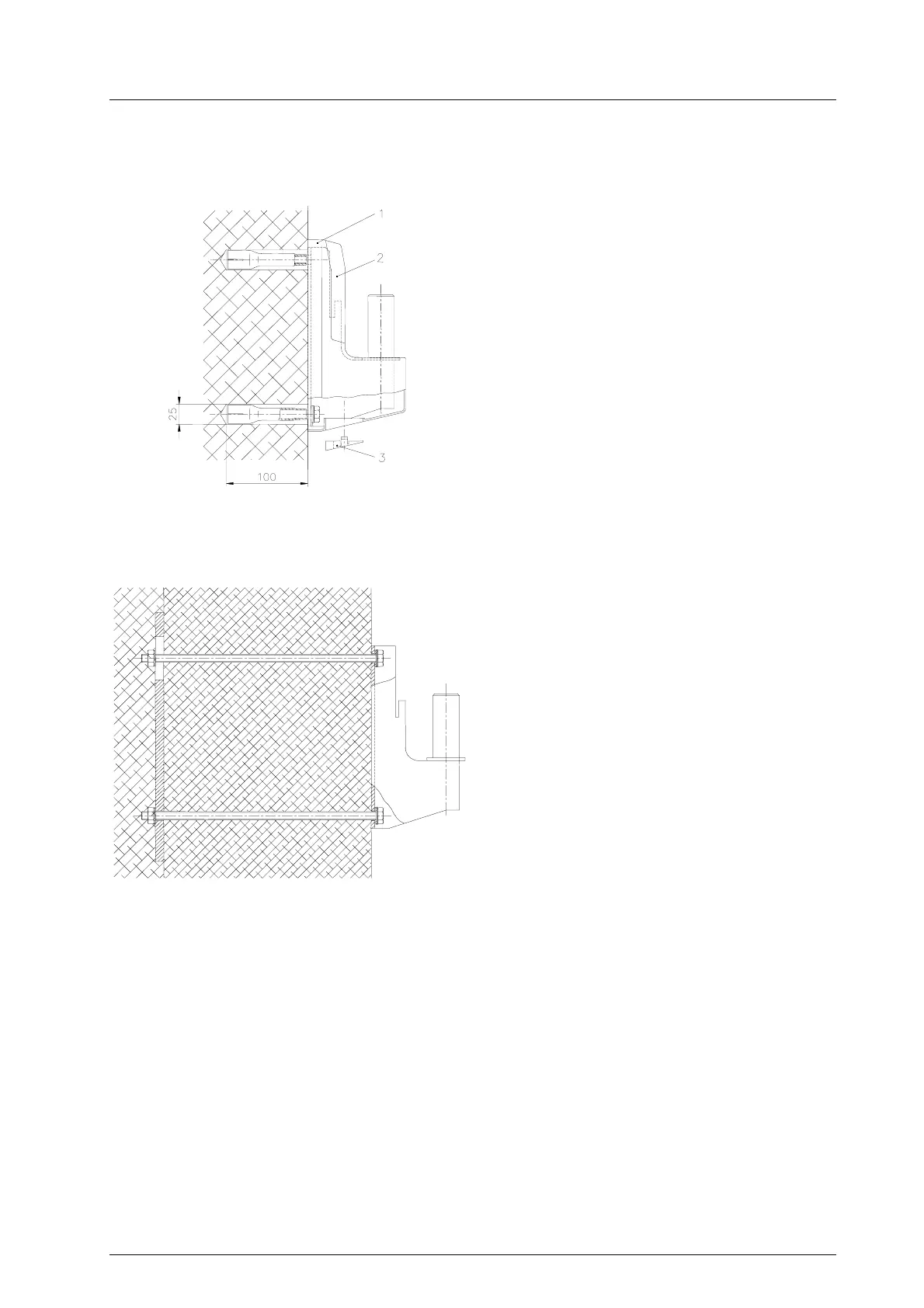

Fastening with tubular dowel
• Screw tight the wall bearing with two M10x35
screws (having first pushed the washer of
∅ 10mm and the plastic cover washer on the
screw).
• Place cover 1, cover 2 and cap 3 in position in
such a way that they engage in the locks.
Fastening with counter-plate
• Fix the wall bearing, push through the M10
threaded rods and screw on the wall bracket
and counter-plate using bolts and hexagonal
nuts (if necessary, weld the hexagonal nuts to
the counter-plate).
• Place cover 1, cover 2 and cap 3 in position in
such a way that they engage in the locks.
59500001 Edition 06 11.03.2003 / Bak Page 17/48
