5.2.3 Lamps with regulating transformer
The regulating transformer is used for light intensity control at the lamps. It is positioned inside the switch
cabinet / switch board (OT-panel).
Technical data
Type RN 230 / 1.25 Bgr. P40 Type RN 230 / 1.6 Bgr. P65
Primary voltage 230V 230V
Secondary voltage 184 – 230V 0 – 230V
Frequency 50 – 400Hz 50 – 400Hz
Current 1,25A 1,6A
Power 287,5VA 368VA
System of protection IP00 IP00

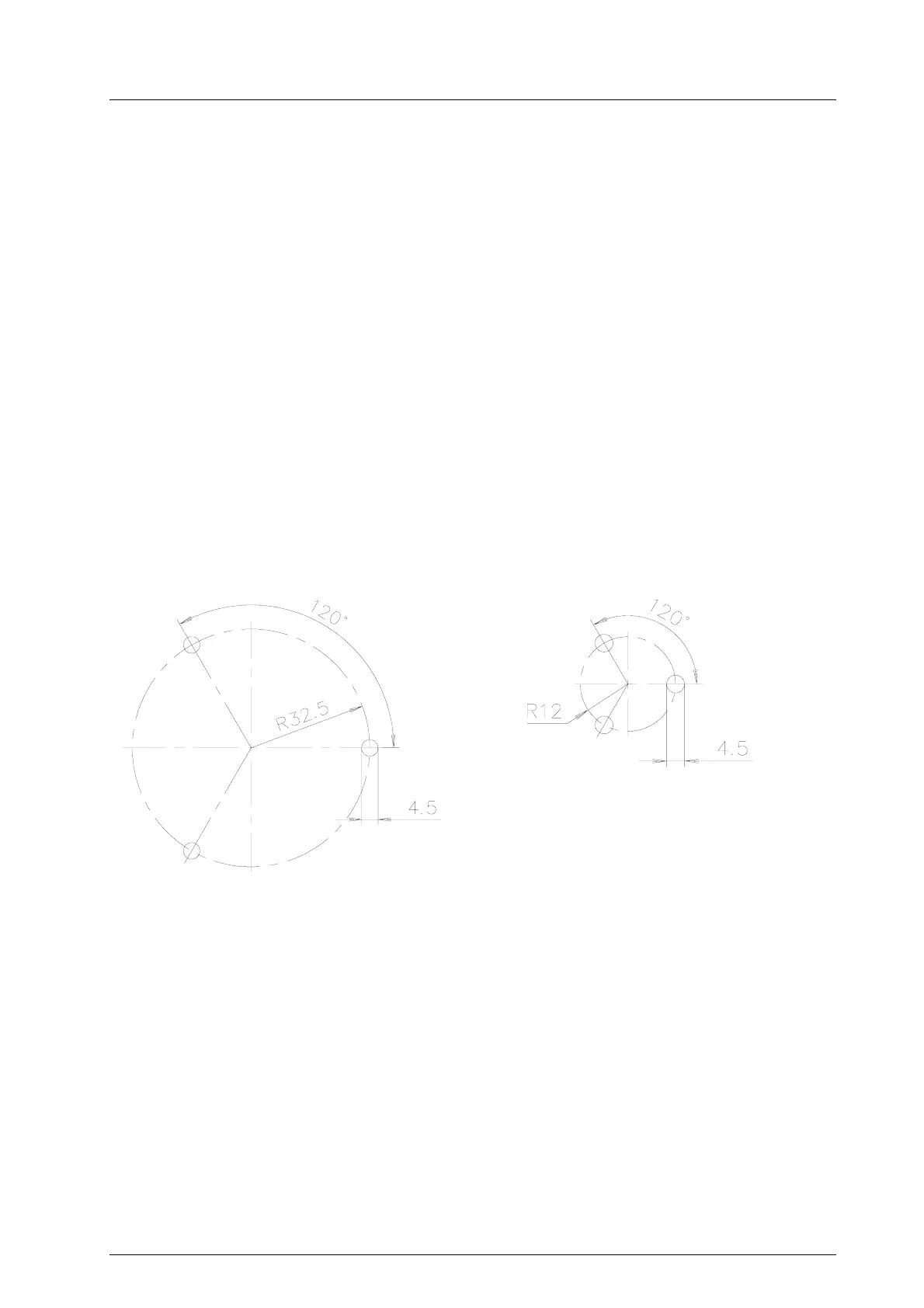

For mounting the regulating transformer see drilling jigs below:
Type RN 230/1.25 Bgr. P40
Type RN 230/1.6 Bgr. P65
The regulating transformer is connected between mains and lamp transformer.
