Dr. Mach Soloflex - Mounting the Space Spring Arm

Ceiling and wall attachment
Dr. Mach
Lamps and Engineering
Electrical connection
Attention!
If the cables at the plug are damaged, the exten-
sion arm is under a voltage of 230V.
Install the plug carefully.
• Position the plug 12 straight and push it toward
the extension arm 6 using slight pressure.
• Check the plug for firm seating.

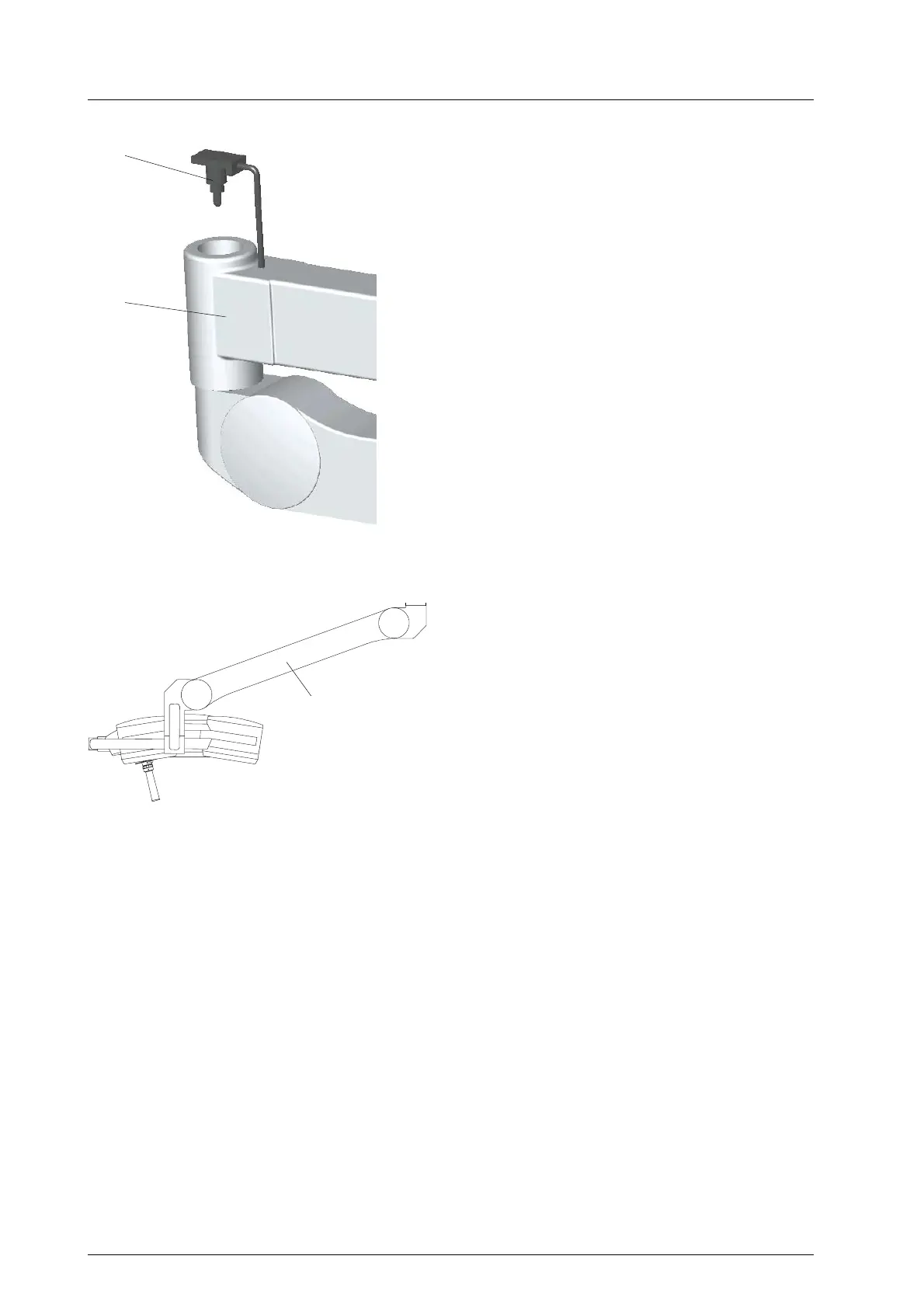

6.3.2 Mounting the Space spring arm
(
Mach 400 Mach 500, Mach 700 single lamps
at low room heihgts)
The Space –spring arm is intended for installing
lamps as Mach 700 and Mach 500 / Mach 400 in
cases of low room height. The lamp is suspended on
the side of the spring arm.
You still have the necessary free clearance height for
Mach 400 and Mach 500, despite the low room
height. Still, the lights can be moved in the X-axis and
Y-axis.
For mounting the Space –spring arm to the ceiling
attachment proceed as described at chapter 6.3.1.
12
6
S
p
ace-s
p
rin
g
arm
Mach 500
59500001 Edition 06 11.03.2003 / Bak Page 28/48
