Ceiling and wall attachment
Dr. Mach
Lamps and Engineering

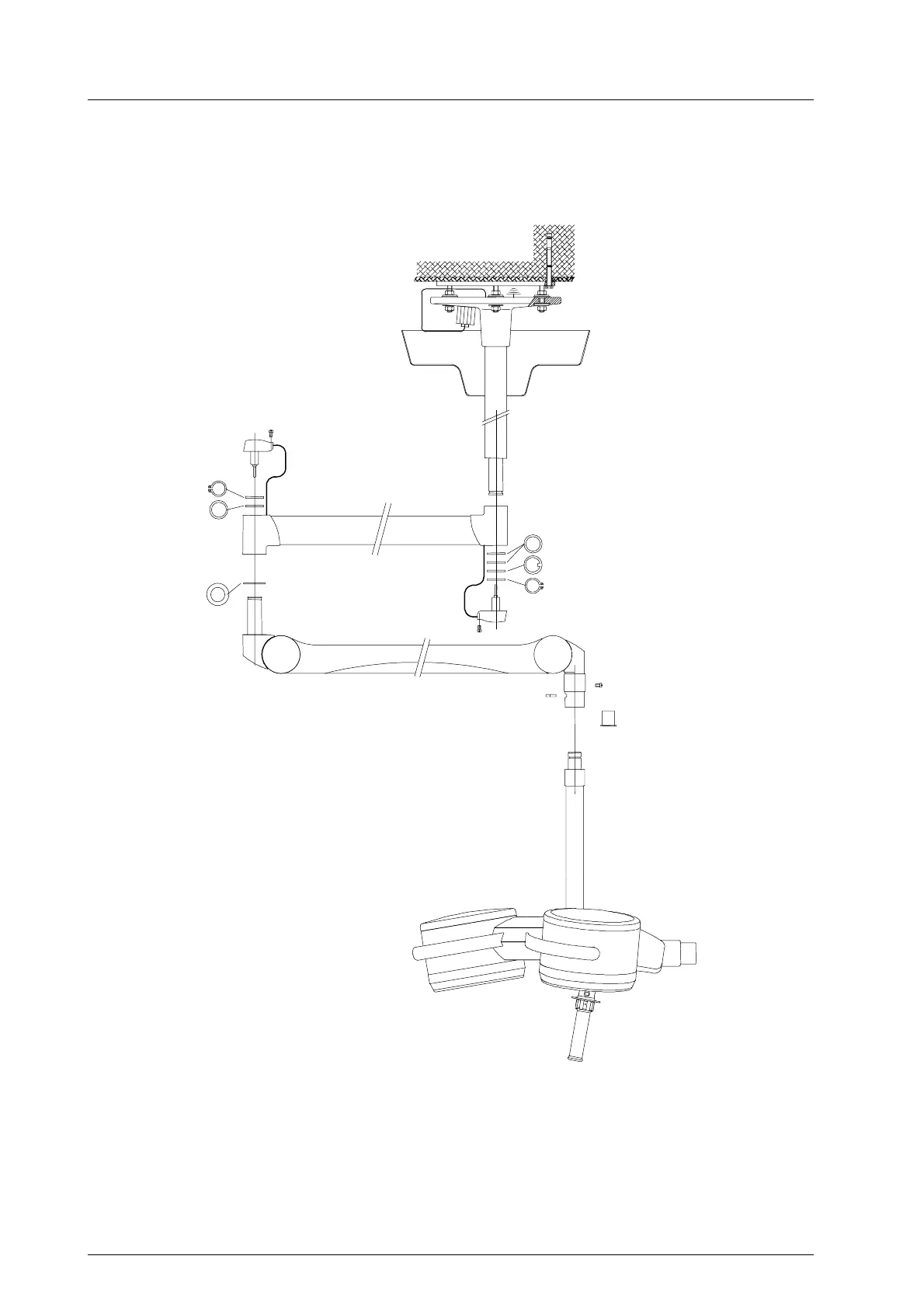

1. Mounting layout
Ceiling attachment
Ceiling anchorage ring
Intermediate flange (option)
Flange
Canopy
Suspension tube with axis
Bracket
Levelling washer (Remark!)
Gib washer 1x
Circlip 1x
Spring arm
OT -lamp
Remark:
One levelling washer is always necessary.
If the distance between bracket and spring arm is too big, use the second levelling washer.
The circlip (Seegerring) must be easy to mount and has to snap in. It should turn easily in the groove.
