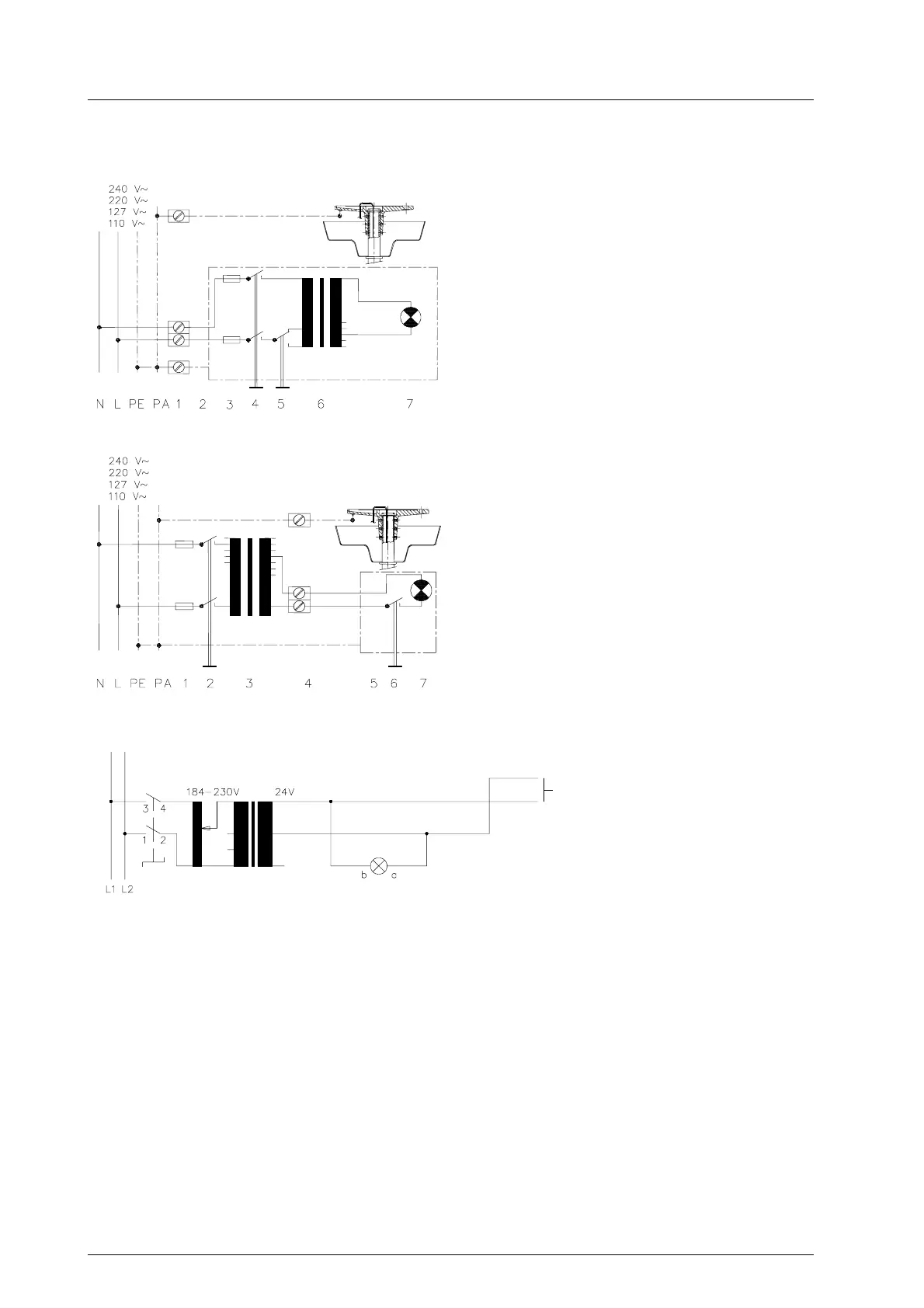

5.3 Wiring diagrams
Transformer in the lamp housing
1. Clamps on the flange
2. Coupling with sliding contact on flange
3. Fuses
4. ON/OFF switches
5. Converter
6. Transformer IT
7. Light bulb(s)
External transformer
1. Fuses
2. ON/OFF switch (4-pole for emergency power
connection)
3. Transformer IT
4. Clamps on the flange
5. Coupling with sliding contact on flange
6. Secondary ON/OFF switch
(not for Quintaflex)
7. Light bulb(s)
Regulating transformer
IT-mains 230V
Green - mains
to
OT-lamp
59500001 Edition 06 11.03.2003 / Bak Page 24/48
