Ceiling and wall attachment
Dr. Mach
Lamps and Engineering

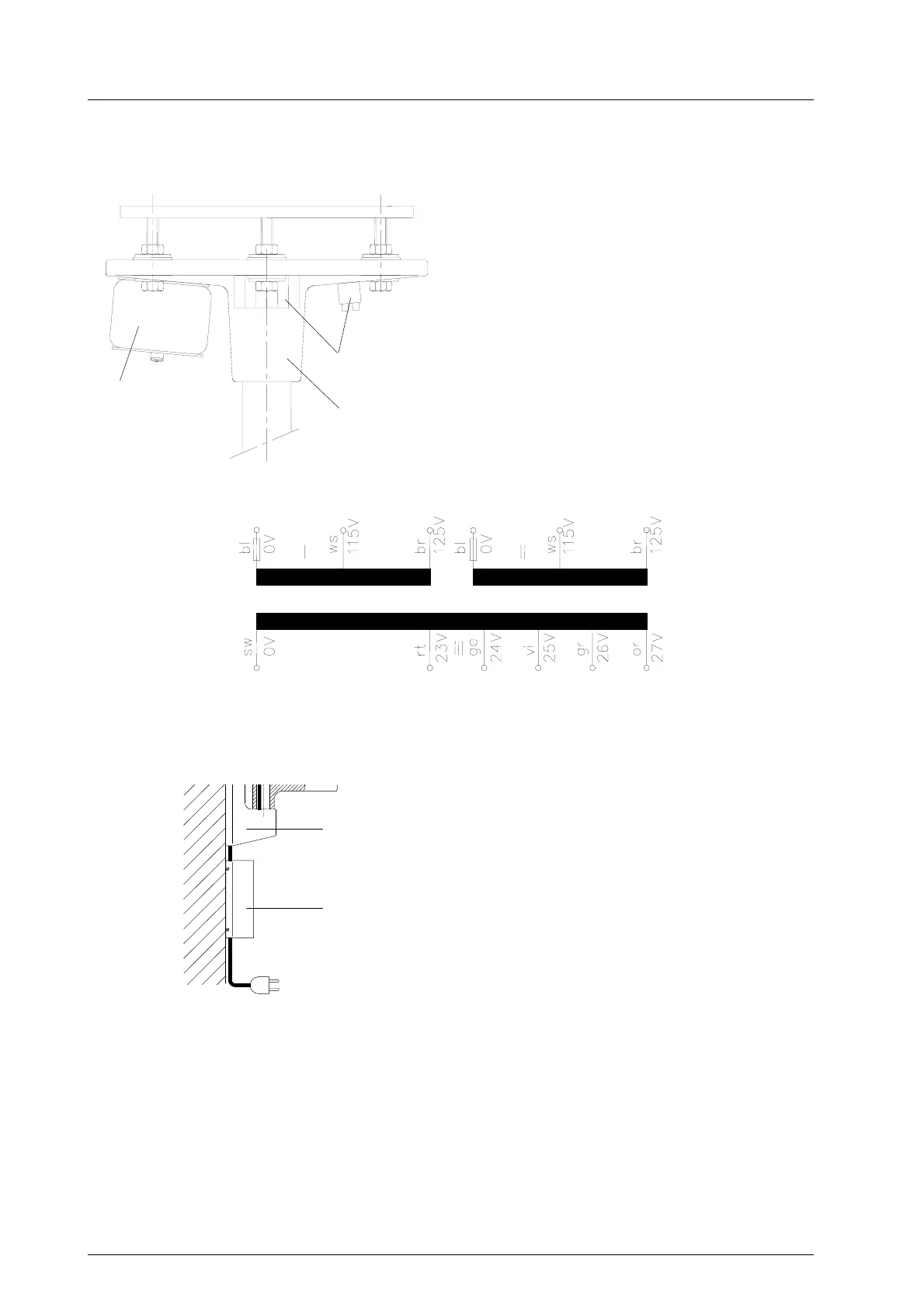

b. Toroid transformer mounted on the flange
View
The toroid transformer is already mounted on the
flange.
At delivery it is already connected to the line
clamps. You have to connect the power supply and
the lamp to the line clamp (see wiring).
Wiring
Toroid transformer
Flange
Line clamps
5.2.2 Wall lamps with external transformer
a. Lamps Mach 120, Praxila
The transformer is mounted in a transformer hous-
ing positioned on the wall.
Wall bearing
Transformer
housing
b. Lamp Mach M3, Mach 380
If possible, You should mount the transformer in a separate room.
If not possible, try to find an appropriate mounting place for the transformer. In case of a false ceiling you
can mount the transformer between false ceiling and solid ceiling.
59500001 Edition 06 11.03.2003 / Bak Page 22/48
