6.3.3 Mounting the central spring arm
(
Mach 380, Mach M3, Quintaflex, Trigenflex
ceiling lamps at low room height)

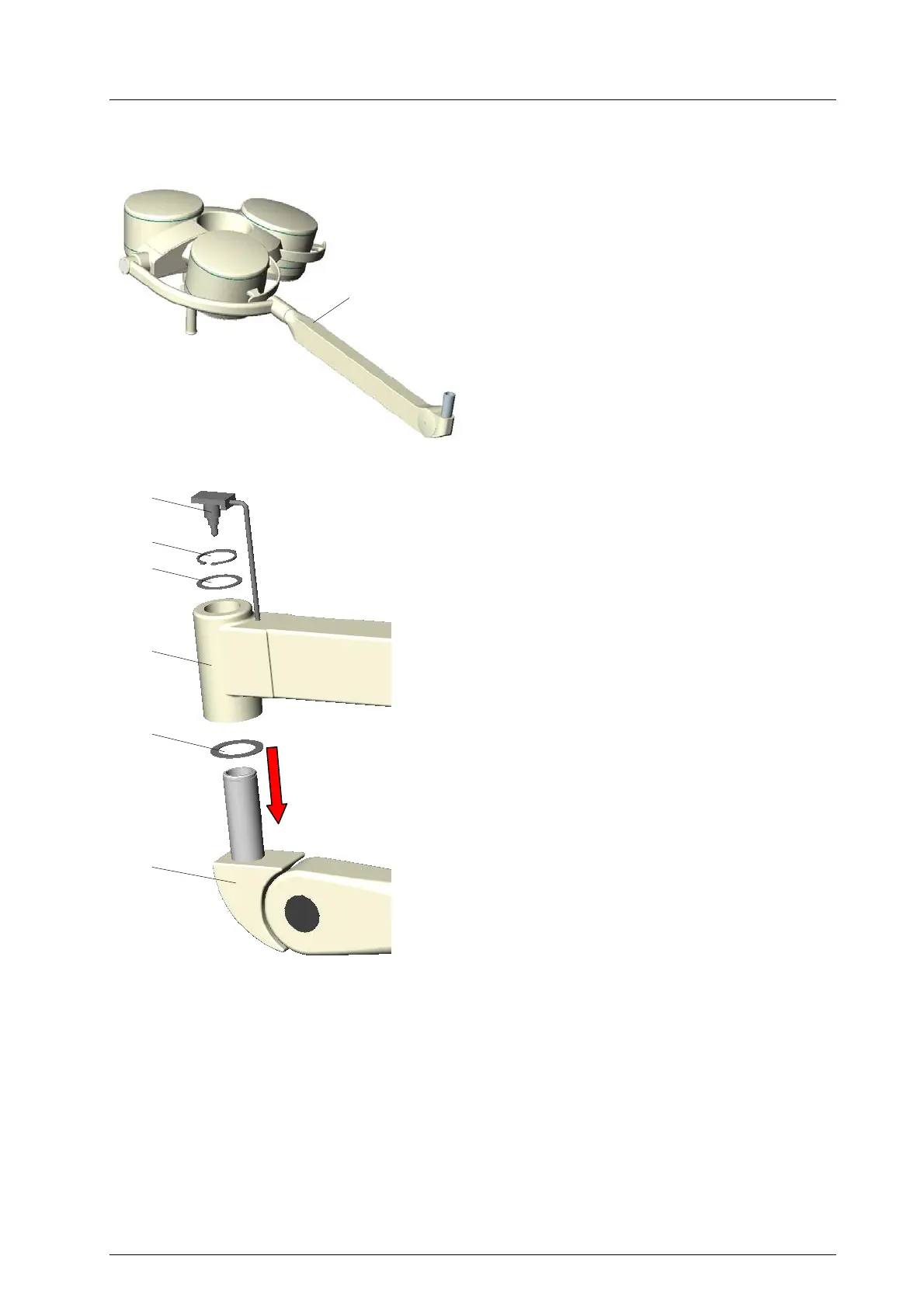

Central spring arm (since 2000)
The central spring arm is intended for installing lamps
as Mach 380, Quintaflex and Trigenflex in cases of
low room height.
You still have the necessary free clearance height,
despite the low room height. Still, the lights do not
have a fully cardanic suspension anymore.
For mounting the central spring arm to the ceiling
attachment proceed as described at chapter 6.3.1.
Central s
p
rin
g
arm
Mach 380
Central spring arm (until 2000)
• Disconnect the on-site power-supply.
• Remove the two lateral covering plates of the
bracket as described in chapter 6.1.2.
• Carefully pull the plug 12 off the bracket.
• Remove the circlip 8, then remove the disk ∅
38mm 9 and the protective sleeve from the
spring arm 10.
• Install the disk ∅ 48mm 11 on the spring arm 13.
• Carefully remove the plug 12 from the extension
arm 6.
• Slide the spring arm 13 into the extension arm 6.
• Install the disk ∅ 38mm 9 and install the retaining
ring 8.
• Check the spring arm 13 for firm fixation in the
extension arm 6.
• Establish the electrical connection and mount the
casing halves.
13
11
6
9
8
12
