8.3 Height adjustment
8.3.1 Standard spring arm
The vertical movement of the ACROBAT 2000
spring arm can be limited to 45 degrees above
horizontal.

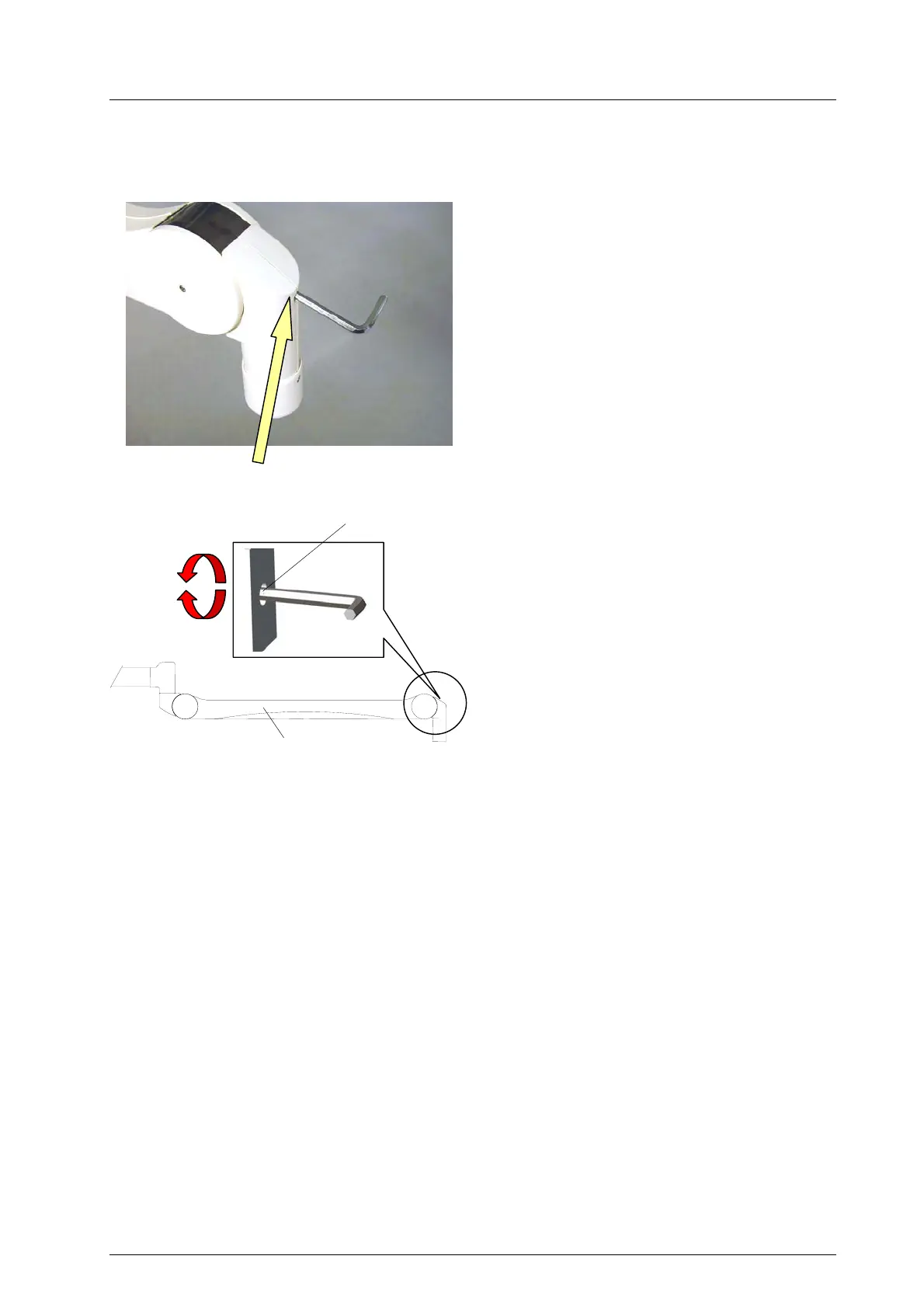

• A hole 1 is located at the position marked by
detail X.
• Position the spring arm 2 with the end device to
horizontal.
• Insert the Allan key (width 5) into the hole 1.
To reduce the vertical movement:
- Rotate the adjusting screw to the right (clock-
wise).
To increase the vertical movement:
- Rotate the adjusting screw to the left (counter
clockwise).
Remark:
In case of stiffness while adjusting the vertical
movement, slightly move the spring arm up and
down.
Hole 1
Width 5
2
X
1
