2.2.4 Ceiling attachments and room heights
Ceiling attachments

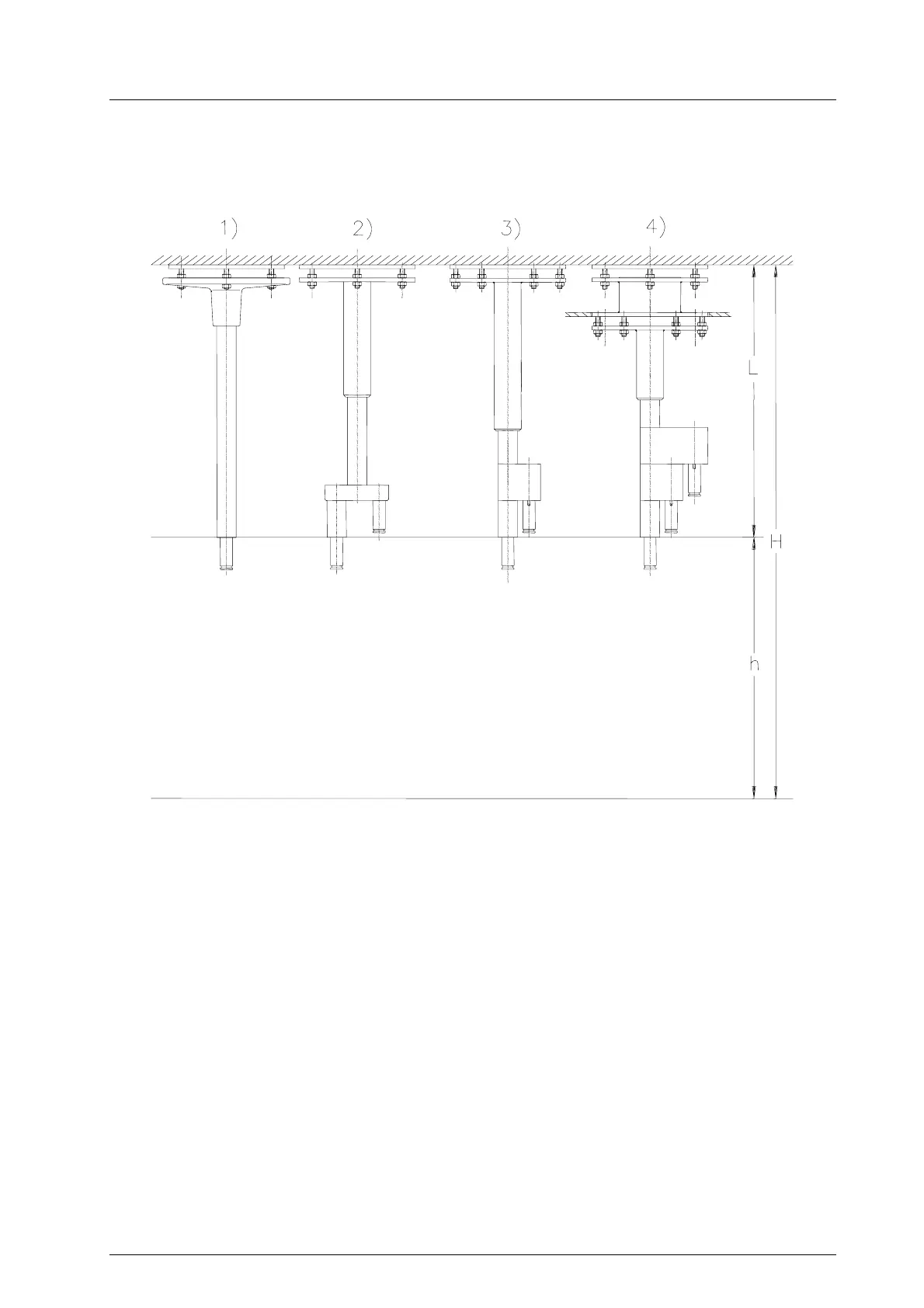

Featured examples (selection)
1 Single suspension tube with aluminium cast
flange and ceiling anchorage ring
2 Double standard axis with welded flange tube
and ceiling anchorage ring
3 Double light weighted central axis, can be
turned through 360°, with welded flange tube
and ceiling anchorage ring
4 Triple light weighted central axis with welded
flange tube, intermediate flange and ceiling
anchorage ring
H = room height
Clearance upper edge floor – lower edge solid
ceiling
h = prescribed distance upper edge floor to lower
edge suspension tube as specified for the par-
ticular lamp
L = length of suspension tube respectively entire
suspension device (ceiling anchorage ring + in-
termediate flange + suspension tube)
